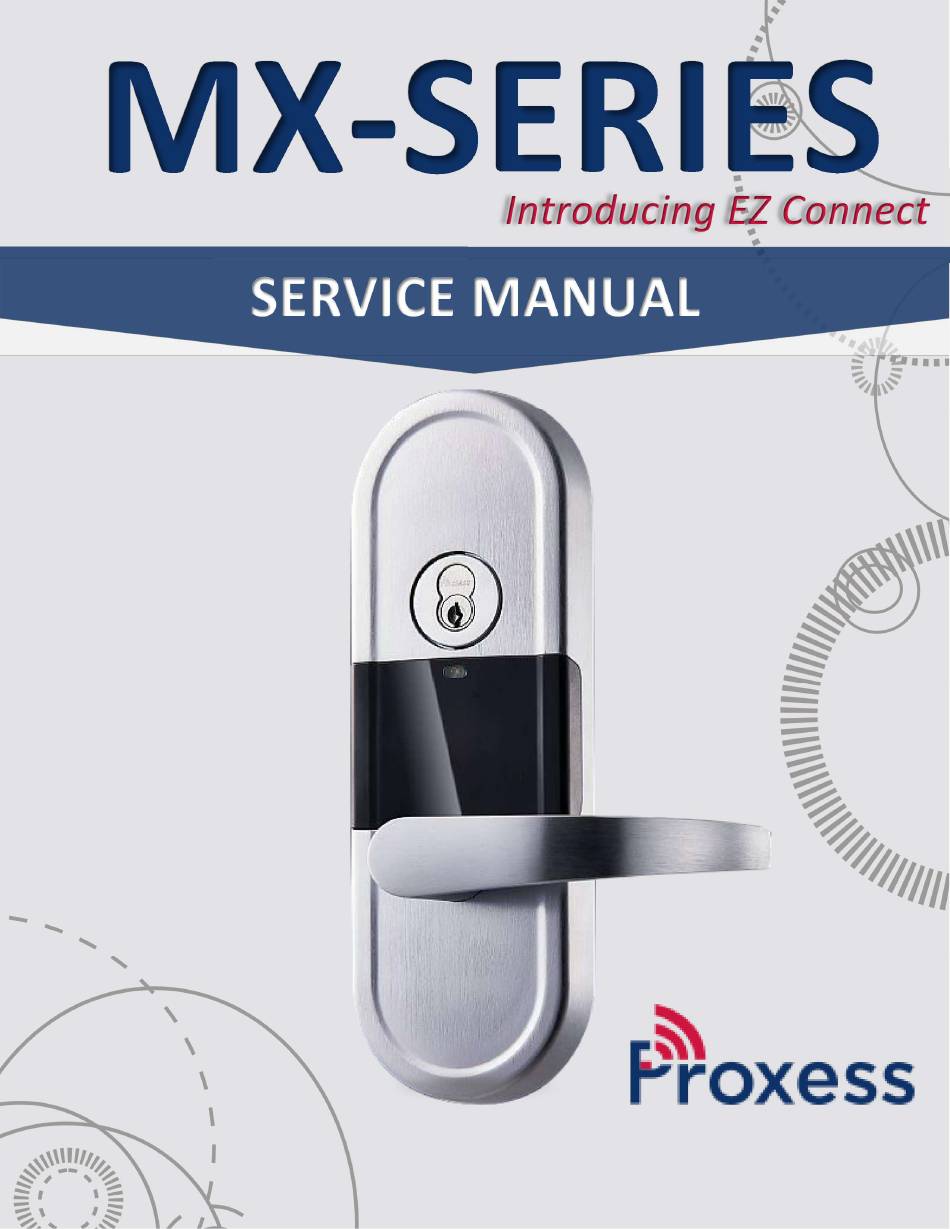

- Page 1 Introducing EZ Connect SERVICE MANUAL To learn more: visit www.proxess.com or call 303-317-6656...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION DOCUMENTATION PACKAGE CERTIFICATIONS AND STANDARDS TECHNICAL SUPPORT FUNCTIONS LOCK FUNCTIONS LETTER CHART LOCK PARTS PARTS BLOWUP PARTS NUMBER CHART CASE AND STRIKE DIMENSIONS CYLINDER/KEYING TRIM PARTS MAINTENANCE TOOLS FOR MAINTENANCE TROUBLESHOOTING HARDWARE INSTALLATION MANUAL MORTISE INSTALLATION DOOR PREP MORTISE INTALLATION INSTRUCTIONS MORTISE INSTALLATION TEMPLATE ADDITIONAL RESOURCES... -
Page 3: Introduction
However, as with any publication of this complexity, errors or omissions are possible. Please call Proxess corporate offices at (303) 317-6656 if you see any errors or have any questions. No part of this manual and/or databases may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, for any purpose, without the express written permission of Proxess, LLC. - Page 4 LOCK FUNCTIONS Mortise Lock Functions Similar ANSI Name Description Proxess Electronic Equivalent Function # Mech Turn/Push button locking. Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually Enable toggle schedule and double...
-
Page 5: Functions
LOCK PARTS PARTS BLOWUP DEADBOLT (B) FUNCTIONS PART NUMBERS AND DESCRIPTIONS ITEM PART NUMBER DESCRIPTION ITEM PART NUMBER DESCRIPTION M00-0031A Cylinder M01-0011A Mortise Chassis for M00-0006A Exterior Trim Bolt Functions M00-0018A Exterior Backplate M02-0011A Mortise Chassis for M00-0020A Gasket Latch Only M00-0013A Spindle Motor Connector... -
Page 6: Case And Strike Dimensions
Proxess locks are supplied with only small format removable cores and we strongly recommend that these locks are keyed differently than other cylinders in the existing lock system. Keys for Proxess locks are meant to be used only in emergency situations that require a mechanical key bypass. Proxess software monitors when a mechanical key is used. -
Page 7: Trim Parts
TRIM PARTS STRIKE PLATES ITEM PART NUMBER DESCRIPTION M02-0030A Latch only strike plate M01-0030A Bolt and latch strike plate LEVERS ITEM PART NUMBER DESCRIPTION M06-0001A Angled Return M08-0001A Curved Return MAINTENANCE TOOLS FOR MAINTENANCE Philips Screwdriver, #2 Cylinder and Core Testing Wrench Core Turn Knob Tool Mortise Service Manual... -
Page 8: Troubleshooting Hardware
If a problem with the lockset occurs there may be a sequence of Beep/Blink indicators during start-up that will help to determine the problem. These will be 3 short Beep/Blinks followed by a series of longer Beep/Blinks. Please note them and contact a Proxess customer service representative. Mortise Service Manual... - Page 9 INSTALLATION INSTRUCTIONS The following pages contain the Installation Manual for the MX- Series Mortise Lock A. CHECKLIST (4 AA BATTERIES INCLUDED) Parts List: Each Proxess MX-Series lockset includes Door Preparation Template Mortise Lever Lockset with Installation Instructions Exterior lock assembly (include housing, lever and cylinder drive unit)
- Page 10 B. Door Preparation Measure the desired height from the floor to the door handle. Use the Mortise Lock Installation Template for prepping the Mortise door holes. Using the provided template, drill out the proper holes in the door. o Use a 3 4 inch hole saw to drill the hole for routing the cables through. If you do not have a hole saw, use a 1 2 inch drill bit and drill two holes.
- Page 11 C.2 Remove Free Wheeling Lever Set Screw C.3 Proper Spring Cage Orientation Set Up (For Left Hand or Right-Hand Reverse) See below. Note: arrow “B” must point down. 1. For Exterior Panel Spring Cage- Place the spring cage on the exterior side of the trim. Arrow should point clockwise or in the direction you want the handle to engage the latch.
- Page 12 D.3 Proper Spring Cage Orientation Set Up (For Right Hand or Left Hand Reverse) The factory default setting will work with LHR and RH. The arrow should point in the direction you want the handle to engage with the latch. For Exterior Panel Spring Cage –...
- Page 13 F.1 External Panel Installation 1. Ensure Ribbon Cable is secure in Exterior Trim first. Note that cable cannot be folded. 2. Then install Exterior Backplate and Gasket onto the Exterior Trim. F.2 Insert Spindle F.3 Insert Ribbon Cable 1. Insert the spindle (5) and spindle spring (6) into 1.
- Page 14 F.6 Install Cylinder F.7 Tighten Cylinder and Backplate 1. Insert the screwdriver into the side of the lock and tighten the cylinder. 1. Loosen the cylinder set screw in the mortise 2. Then, tighten the mortise lock set screw (22). chassis to insert the cylinder.
- Page 15 G.2 Inserting Micro Switch CAM 1. Insert the Micro Switch Cam (18) on the spring cage as shown. Make sure the switch is engaged. 2. Then, move (18) to the right and align it with the spindle slot as shown. G.3 Inserting Spindles G.4 Engaging the Micro Switch Insert spindle (5) and spring (6) into the spring cage as...
- Page 16 EZ Connect Wiring H. Interior Panel Installation H.1 Installing Thumb Turn Spindle and Connectors Insert Thumb Turn Spindle (15). H.2-3 Completed H.2 Then align the spindles with the chassis and place it onto the interior backplate. H.4 Turn the lever to ensure proper latch Ensure that the thumbturn is horizontal when the engagement.
- Page 17 I. Operation Test I.1 Insert AA Alkaline batteries (x4) into the battery I.2 Green light will turn on and you will hear a beep, compartment indication that the power is on I.3 Turn the lever and make sure the lever is free to rotate I.4 Testing the Lock 1.
- Page 18 J. Strike Plate Installation J.1 Use the template provided to create the strike plate mounting hole on the door frame. J.2 Insert the strike plate set screws (25) and (26). J.3 Repeat Section I.4 and Complete Installation. Mortise Service Manual...
- Page 19 INSTALLATION TEMPLATE – FOR REFERENCE ONLY: (USE THE TEMPLATE FROM MX INSTALLATION MANUAL FOR ACURATE DIMENSIONS) Mortise Service Manual...
-
Page 20: Additional Resources
MPD Mobile Programming Device Android Mobile Phone with no Sim Card The Mobile Programming Device is used with the Proxess LoxIQ™ software to build door groups, access profiles, time schedules, and so much more. It can also be used to assign high security Network on Card credentials to personalized profiles with the Proxess Enrollment Reader and On-the-Go Converter. -
Page 21: Software Solutions
SOFTWARE SOLUTIONS FOR LOCKSET PROGRAMMING LoxIQ™ LoxIQ™ is a software app created by Proxess, LLC. Instead of requiring all the expensive components of an access system (approx. $3k/dr), LoxIQ™ requires only the locks, a phone, and a programmer. Although the system has the capability of unlimited doors and users, it is typically implemented in smaller systems of 100 doors/users or less…Expandable to full server system software. -
Page 22: Fcc Staatement
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication.
