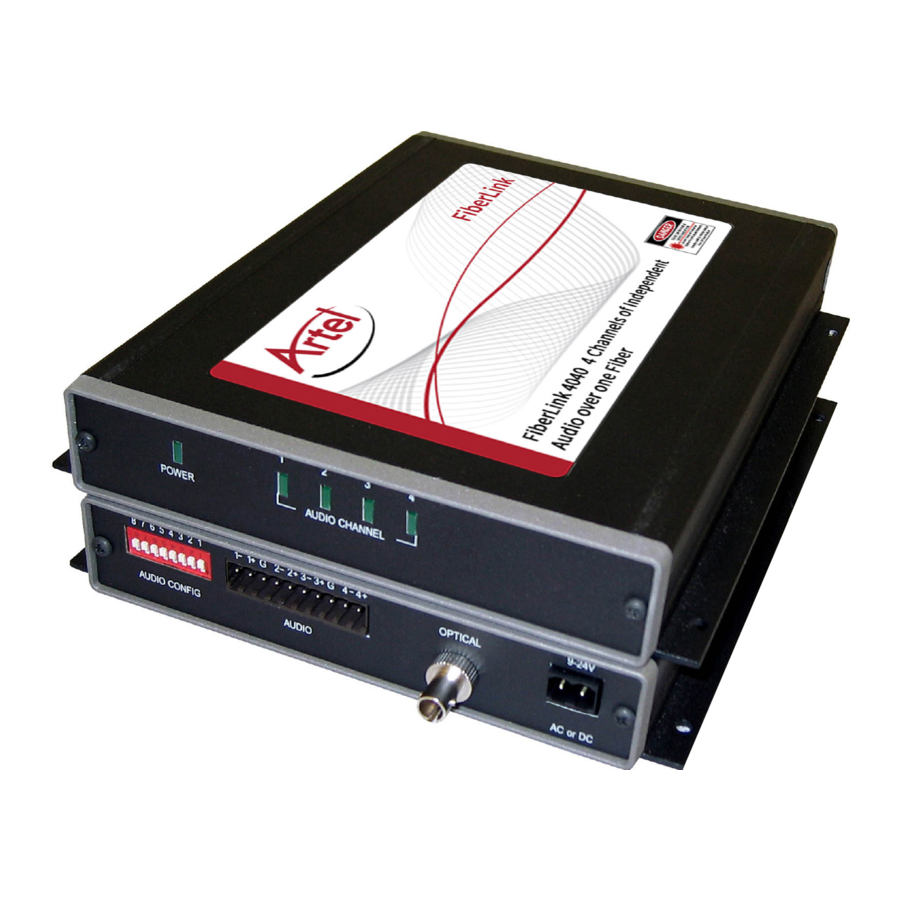

Artel Video Systems' Fiberlink® 4040
Fiberlink®
4040 Series
Four channels of audio over one
single mode or multimode fiber.
User's Manual
The Fiberlink® 4040 Series is a
configurable, adjustment-free
transmitter/receiver pair that
employs digital processing and
transmission techniques to
convey up to four 1-way channels
of audio.
World Headquarters
5B Lyberty Way
Westford MA 01886 USA
Tel:
(978) 263-5775
Fax: (978) 263-9755
info@artel.com
artel.com
Advertisement
Table of Contents
Related Manuals for Artel Fiberlink 4040 Series
Summary of Contents for Artel Fiberlink 4040 Series

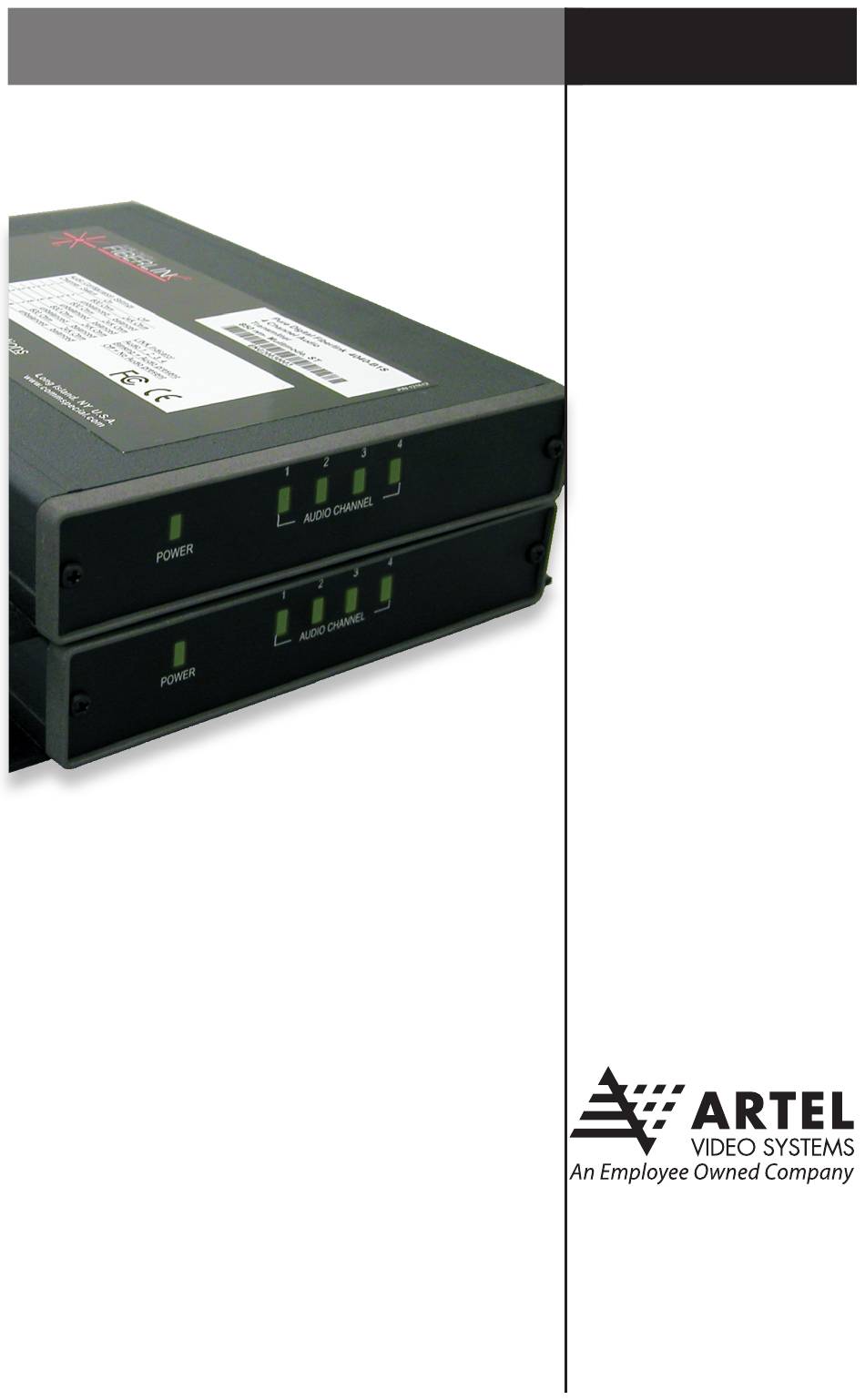

- Page 1 User’s Manual Artel Video Systems’ Fiberlink® 4040 The Fiberlink® 4040 Series is a configurable, adjustment-free transmitter/receiver pair that employs digital processing and transmission techniques to convey up to four 1-way channels of audio. Fiberlink® 4040 Series Four channels of audio over one single mode or multimode fiber.
-
Page 2: Table Of Contents
Contents Fiberlink® 4040 Series Contents Welcome ..............3 Features . -
Page 3: Welcome
Welcome | Features | Package Contents Fiberlink® 4040 Series Welcome The Fiberlink® 4040 series optical transmission system is a configurable, adjustment-free transmitter/receiver pair that employs digital processing and transmission techniques to convey up to four 1-way channels of audio. The use of digital encoding assures high-quality noise-free transmissions that retain all of their initial parameters regardless of fiber optic cable attenuation. -
Page 4: Technical Specifications
Technical Specifications Fiberlink® 4040 Series Technical Specifications Model Part Number Specification Unit Type Part Number Transmitter Box 4040-Bxy Transmitter Rack Card 4040-Cxy Receiver Box 4041-Bxy Receiver Rack Card 4041-Cxy 1 - 850nm Multimode 3 - 1310nm Multimode 7 - 1310nm Single Mode 9 - 1510nm Single Mode F - FCPC Connector S - ST Connector... - Page 5 Technical Specifications Fiberlink® 4040 Series Technical Specifications Audio Specifications: Number of Audio Channels 4, balanced or unbalanced Frequency Response +0/-0.5 dB, 20 Hz - 20 kHz Bits-per-Sample/Sampling Rate 24 bits; 96 kHz Maximum Audio Level +24 dBu SNR (A-Weighted) 95 dB THD+N 0.002%, 20 Hz - 20 kHz Channel Phase Differential...
-
Page 6: Installation Instructions
Fiberlink® 4040 Series Installation Instructions The Fiberlink 4040 Series transmission systems are normally preset for immediate use with audio input circuitry set for balanced 600 Ohm input impedance and output set for balanced audio. If a different protocol is desired, it can be easily selected using the flip switches located on the back panel of the unit. -
Page 7: Audio Switch Settings & Options
Audio Switch Settings Fiberlink® 4040 Series Audio Switch Settings The audio interface circuit used in this product has external switches that are used to configure the signal options. If you wish to make changes to the factory default settings, please refer that the charts below: Audio Input (Transmitter) Settings Audio Switch... -
Page 8: System Terminal Block Connections
System Terminal Block Connections Fiberlink® 4040 Series System Terminal Block Connections The input and output connections for the Pure Digital Fiberlink 4040 Series system are as follows: Audio Connector - Transmitter Position Balanced Unbalanced Position 1- Channel 1 Input (-) -
Page 9: Indicator Leds
LED Indicators Fiberlink® 4040 Series Indicator LEDs The Fiberlink® 4040 Series has indicator LEDs that are used to monitor the state of the unit. Card versions have an additional Alarm LED. Transmitter LEDs Status Definition Power Indicates that correct power has been applied. Audio Indicates no audio input detected (1-4) -
Page 10: Operating Pointers
Operating Pointers | Troubleshooting Fiberlink® 4040 Series Operating Pointers Remember to check attenuation of the fiber optic cable. The system will only operate properly if these specifications fall within the range of the system’s loss budget. Troubleshooting Multimode fiber optic cable contains an optical fiber with a light carrying “core” that is only .0025 inches (62.5 microns) in diameter. -
Page 11: Maintenance And Repairs
They have been designed for long, reliable and trouble-free service and are not normally field repairable. Should difficulty be encountered, Artel Video Systems maintains a complete service facility to render accurate, timely and reliable service of all products. -
Page 12: Warranty
Warranty Fiberlink® 4040 Series Artel Video Systems (Artel) warrants that, for a period of three years after purchase by the Buyer, this product will be free from defects in material and workmanship under normal use and service. A Return Material Authorization (RMA) number must be obtained from Artel before any equipment is returned by the Buyer. - Page 13 Related Products Fiberlink® 4040 Series Fiberlink® 4320 Series - 32 Channels of Stereo Audio over Fiber Learn more at artel.com/fiberlink Fiberlink® 4160 Series - 16 Channels of Stereo Audio over Fiber Learn more at artel.com/fiberlink Fiberlink® 3360 Series - 3G/HD/SD-SDI &...
- Page 14 Fiberlink® 4040 Series Page 14 Fiberlink® 4040 Series User’s Manual...
- Page 15 Fiberlink® 4040 Series Fiberlink® 4040 Series User’s Manual Page 15...
- Page 16 User’s Manual Artel Video Systems’ Fiberlink® 4040 Fiberlink® 4040 Series Four channels of audio over one single mode or multimode fiber. World Headquarters 5B Lyberty Way Westford MA 01886 USA Tel: (978) 263-5775 Fax: (978) 263-9755 info@artel.com artel.com ©2015 Artel Video Systems All Rights Reserved.
