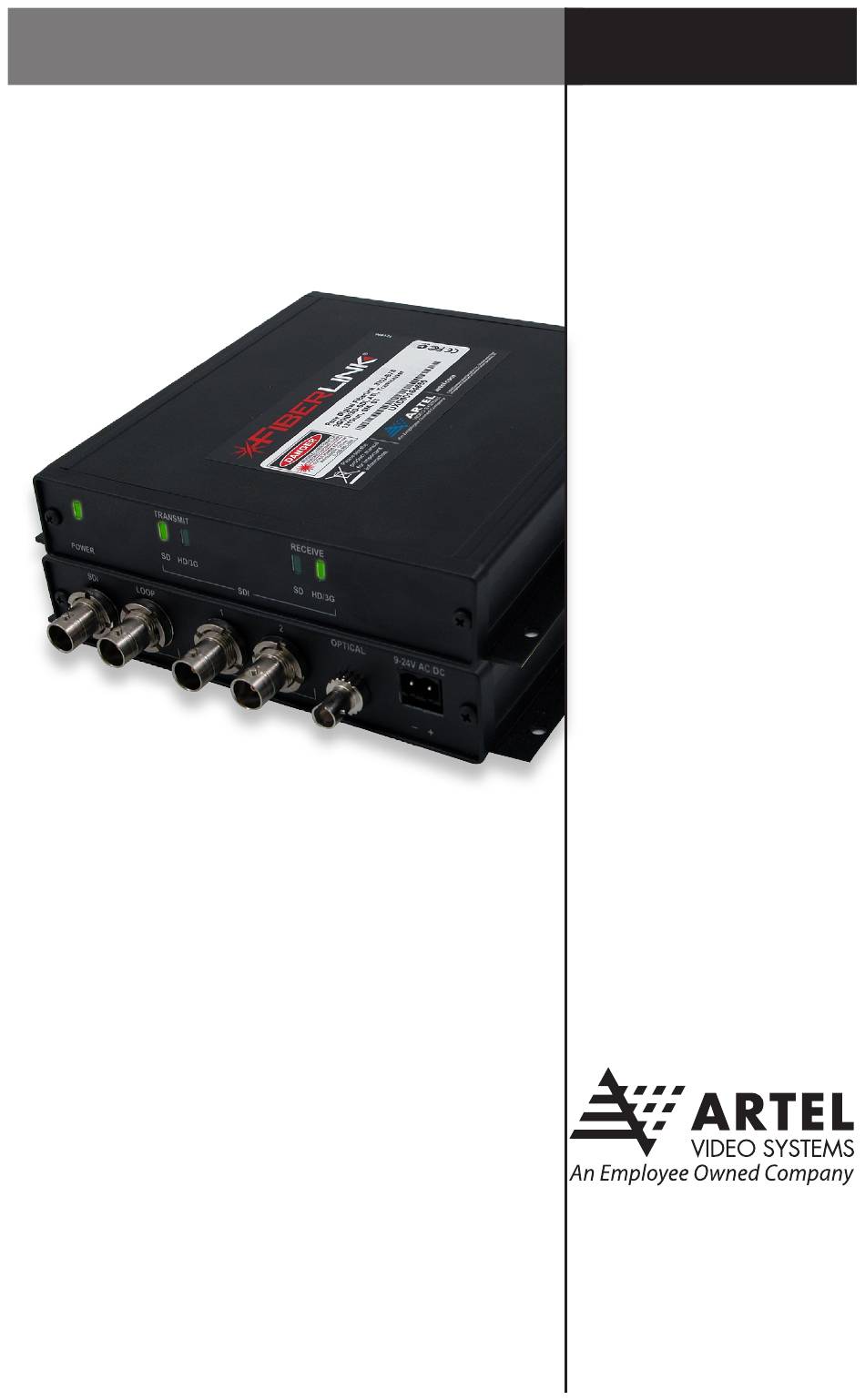

Artel Video Systems' Fiberlink® 3352
Fiberlink®
3352 Series
Bidirectional 3G/HD/SD-SDI Transmission
over one single mode fiber.
User's Manual
Bidirectional, broadcast quality
3G/HD/SD-SDI transmission over
one single mode fiber. The 3352
Series provides a cost effective
method to send two channels of
3G/HD/SD-SDI, with or without
embedded audio, in opposite
directions over one fiber.
World Headquarters
5B Lyberty Way
Westford MA 01886 USA
Tel:
(978) 263-5775
Fax: (978) 263-9755
info@artel.com
artel.com
Advertisement
Table of Contents
Related Manuals for Artel Fiberlink 3352 Series
Summary of Contents for Artel Fiberlink 3352 Series
- Page 1 User’s Manual Artel Video Systems’ Fiberlink® 3352 Bidirectional, broadcast quality 3G/HD/SD-SDI transmission over one single mode fiber. The 3352 Series provides a cost effective method to send two channels of 3G/HD/SD-SDI, with or without embedded audio, in opposite directions over one fiber.
-
Page 2: Table Of Contents
Contents Fiberlink® 3352 Series Contents Welcome ..............3 Features . -
Page 3: Welcome
Fiberlink® 3352 Series Welcome Thank you for purchasing Artel Video Systems’ Fiberlink® 3352 Series. The 3352 Series is used to transmit two 3G/HD/SD-SDI signals, with or without embedded audio and data, in opposite directions over a single fiber optic core. The system delivers noise-free transmission that retains all of the signals’... -
Page 4: Technical Specifications
Technical Specifications Fiberlink® 3352 Series Technical Specifications Model Part Number Specification Unit Type Part Number Transceiver Box 3352-B7L (LC) 3352-B7S (ST) Transceiver Rack Card 3352-C7L (LC) 3352-C7S (ST) General Specifications Indicators Power, Data Rate lock (3G/HD, SD/DVB-ASI) Alarm (Card Version Only) Box Version Dimensions 6.5 W x 1.15 H x 6 L (inches) 165 W x 29 H x 152 L (mm) - Page 5 Technical Specifications Fiberlink® 3352 Series Technical Specifications 3352 Transmitter Specifications (cont.) Serial Video BNC Loop Through Output Number of Loop-Throughs Signal Level 800mV ± 10% DC Offset 0V ± 0.5V Rise/Fall Time < 135 ps at 2.97 Gbps per SMPTE 424M-2006; <...
-
Page 6: Receive Specifications
Technical Specifications Fiberlink® 3352 Series Technical Specifications 3352 Receiver Specifications Fiber Optic Input Connector LC receptacle, PC polish or ST Wavelength 1100 - 1620 nm Maximum Input Power 0 dBm Serial Video BNC Outputs Number of Outputs 2, Non-inverting, Independently Buffered Signal Level 800mV ±... -
Page 7: Installation Instructions
Installation Instructions Fiberlink® 3352 Series Installation Instructions The Fiberlink® 3352 Series of fiber optic transmission systems are ready for immediate use and do not require any special tools or equipment. However, an Optical Power Meter, such as the Fiberlink® 6615, can be useful in determining optical loss budgets during your systems design and maintenance. -
Page 8: Alarm Switch Settings & Options
Alarm Switch Settings & Options Fiberlink® 3352 Series Alarm Switch Settings & Options The Rack Card version of this product has an additional red indicator LED that illuminates when an alarm condition exists. The rack card unit also provides an output to drive a model 6020A Alarm Sensing Module which provides an audible tone and activates a set of contacts for external signaling purposes. -
Page 9: Indicator Leds
LED Indicators Fiberlink® 3352 Series Indicator LEDs The Fiberlink® 3352 Series has four integral indicator LEDs that are used to monitor the state of the unit. Card versions have an additional Alarm LED. Indicator LEDs Status Definition Power Indicates that correct power has been applied. 3G/HD Indicates no 3G-SDI or HD-SDI data rate lock Indicates 3G-SDI or HD-SDI data rate lock at... -
Page 10: Operating Pointers
Operating Pointers | Troubleshooting Fiberlink® 3352 Series Operating Pointers Remember to check attenuation of the fiber optic cable. The system will only operate properly if these specifications fall within the range of the system’s loss budget. Troubleshooting Multimode fiber optic cable contains an optical fiber with a light carrying “core” that is only .0025 inches (62.5 microns) in diameter. -
Page 11: Maintenance And Repairs
They have been designed for long, reliable and trouble-free service and are not normally field repairable. Should difficulty be encountered, Artel Video Systems maintains a complete service facility to render accurate, timely and reliable service of all products. -
Page 12: Warranty
Warranty Fiberlink® 3352 Series Artel Video Systems (Artel) warrants that, for a period of three years after purchase by the Buyer, this product will be free from defects in material and workmanship under normal use and service. A Return Material Authorization (RMA) number must be obtained from Artel before any equipment is returned by the Buyer. -
Page 13: Accessories And Related Products
Accessories and Related Products Fiberlink® 3352 Series Fiberlink® 6656 Visible Fault Locator The Fiberlink 6656 is a light-weight, hand-held tool used to quickly troubleshoot faults in the continuity of both single-mode and multimode fibers. High-intensity visible laser allows for visible fault location of breaks and microbends in both single-mode and multimode fibers. - Page 14 Available in card versions and a small footprint box version, it is ideal for broad- cast or corporate studios, OB vans, rental and staging, auditoriums, stadiums and theaters, airport or transportation hubs, distance learning, surgical or medical imaging and more Learn more at artel.com Page 14 Fiberlink® 3352 Series User’s Manual...
- Page 15 Fiberlink® 3352 Series Fiberlink® 3352 Series User’s Manual Page 15...
- Page 16 User’s Manual Artel Video Systems’ Fiberlink® 3352 Fiberlink® 3352 Series Bidirectional 3G/HD/SD-SDI Transmission over one single mode fiber. World Headquarters 5B Lyberty Way Westford MA 01886 USA Tel: (978) 263-5775 Fax: (978) 263-9755 info@artel.com artel.com ©2015 Artel Video Systems All Rights Reserved.
