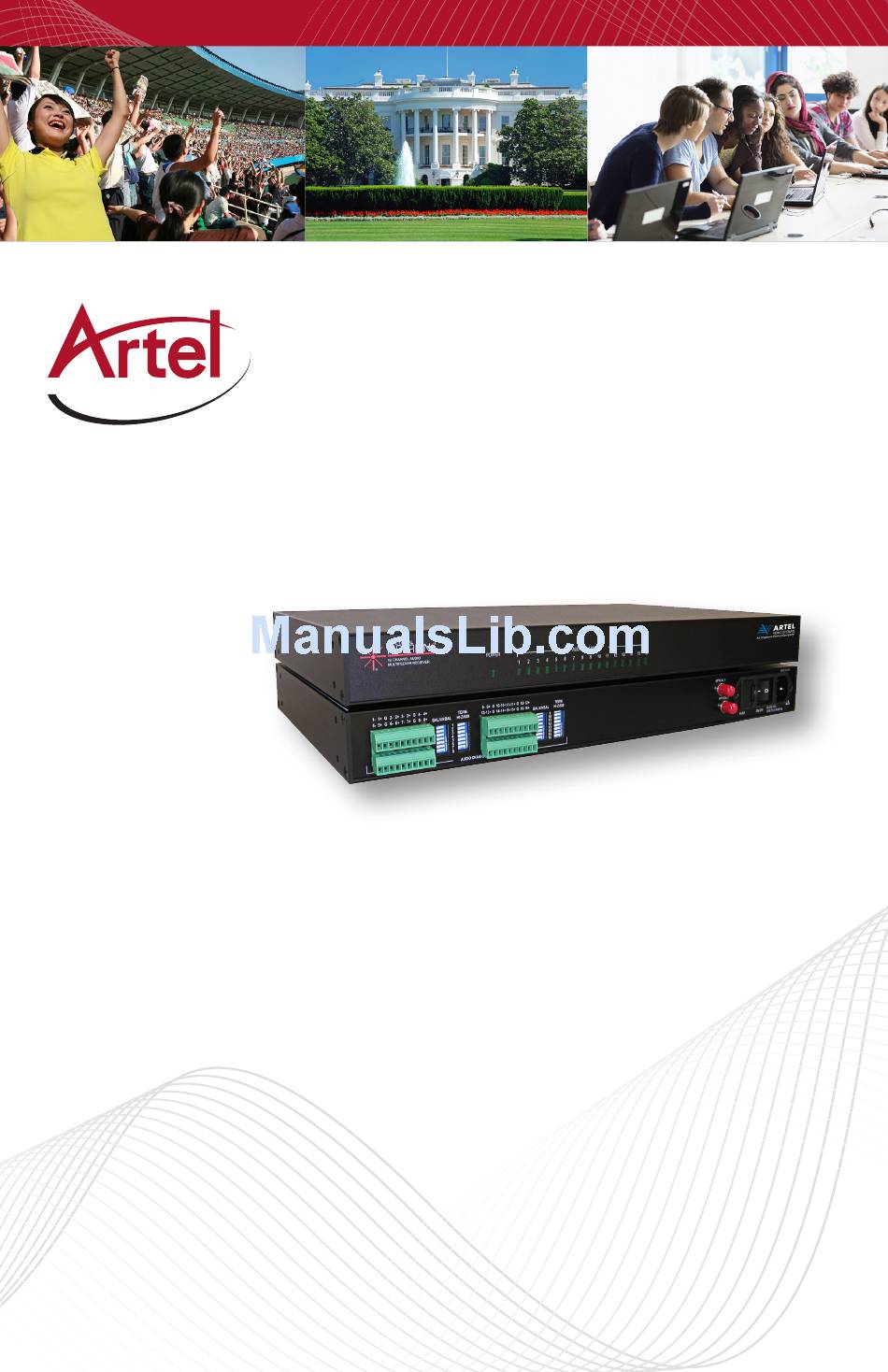

- Page 1 MANUAL FiberLink 4160 and 4320 Series 16 or 32 channels of audio over one single mode or multimode fiber. Installation and Operations Manual WWW.ARTEL.COM...
-
Page 2: Table Of Contents
Contents FiberLink 4160 & 4320 Series Contents Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Features . -
Page 3: Welcome
Welcome | Features | Package Contents FiberLink 4160 & 4320 Series Welcome The FiberLink 4160 & 4320 series optical transmission system are a configurable, adjust- ment-free transmitter/receiver pair that employs digital processing and transmission techniques to convey up to 16 or 32 one-way channels of audio . The use of digital encoding assures high-quality noise-free transmissions that retain all of their initial parameters regardless of fiber optic cable attenuation . -
Page 4: Technical Specifications
Technical Specifications FiberLink 4160 & 4320 Series Technical Specifications Model Part Number Specification Unit Type Part Number 16 Channel Transmitter 4160-xxyyzz 16 Channel Receiver 4161-xxyyzz 32 Channel Transmitter 4320-xxyyzz 32 Channel Receiver 4321-xxyyzz 0 - No second ouput 1 - 850nm Multimode 3 - 1310nm Multimode 7 - 1310nm Single Mode 9 - 1510nm Single Mode... - Page 5 Technical Specifications FiberLink 4160 & 4320 Series Technical Specifications Audio Specifications: Number of Audio Channels 16 or 32, balanced or unbalanced Frequency Response 20 Hz - 20 kHz, +0/-0 .5 dB Bits-per-Sample/Sampling Rate 24 bits; 96 kHz Maximum Audio Level +24 dBu SNR (A-Weighted) 95 dB...
-
Page 6: Installation Instructions
Installation Instructions FiberLink 4160 & 4320 Series Installation Instructions The Fiberlink 4160/4320 Series transmission systems are normally preset for immediate use with audio input circuitry set for balanced 600 Ohm input impedance and output set for balanced audio . If a different protocol is desired, it can be easily selected using the flip switches located on the back panel of the unit . -
Page 7: Audio Switch Settings & Options
Audio Switch Settings FiberLink 4160 & 4320 Series Audio Switch Settings The audio interface circuit used in this product has external switches that are used to configure the signal options . If you wish to make changes to the factory default settings, please refer that the charts below: Balanced/Unbalanced Audio The transmitter and receiver units each have a set of switches that allow the user to specify... -
Page 8: System Terminal Block Connections
System Terminal Block Connections FiberLink 4160 & 4320 Series System Terminal Block Connections The input and output connections for the Pure Digital Fiberlink 4160/4320 Series system are as follows: Audio Connector - Transmitter Position Balanced Unbalanced Position 1- Channel 1 Input (-) Channel 1 Ground Postition 1+ Channel 1 Input (+) -
Page 9: Indicator Leds
LED Indicators FiberLink 4160 & 4320 Series Indicator LEDs The FiberLink 4160/4320 Series has indicator LEDs that are used to monitor the state of the unit . Transmitter LEDs Status Definition Power Indicates that correct power has been applied . Audio Indicates no audio input detected (1-16 or 1-32) Blinking... -
Page 10: Operating Pointers
Operating Pointers | Troubleshooting FiberLink 4160 & 4320 Series Operating Pointers Remember to check attenuation of the fiber optic cable . The system will only operate properly if these specifications fall within the range of the system’s loss budget . Troubleshooting Multimode fiber optic cable contains an optical fiber with a light carrying “core”... -
Page 11: Maintenance And Repairs
. They have been designed for long, reliable and trouble-free service and are not normally field repairable . Should difficulty be encountered, Artel Video Systems maintains a complete service facility to render accurate, timely and reliable service of all products . - Page 12 • Designed and manufactured in the USA • Training and installation support available • 24x7x365 technical support available Artel Video Systems Corp. 5B Lyberty Way, Westford, MA 01886 USA T: 978-263-5775 All specifications subject to F: 978-263-9755 change without notice.
