Wiring Overfill Alarm Without Acknowledgement Switch; Figure 4. Overfill Alarm Only Wiring Connections - Veeder-Root Overfill Alarm Installation Manual

WAYNE COUNTY AIRPORT AUTHORITY
REQUEST FOR BIDS S11-147
Overfill Alarm/Ack Switch Installation Guide

Wiring Overfill Alarm without Acknowledgement Switch

1 . P u l l o n e w i r e f o r n e u t r a l f r o m t h e O v e r f i l l A l a r m t o t h e p o w e r p a n e l .
2 . P u l l o n e w i r e f r o m t h e O v e r f i l l A l a r m t o t h e c o n s o l e f o r c o n n e c t i o n t o t h e a l a r m r e l a y .
3 . P u l l o n e w i r e f o r l i n e f r o m t h e a l a r m r e l a y i n t h e c o n s o l e t o t h e p o w e r p a n e l .
OFF
4 . T u r n p o w e r O f f a n d c o n n e c t w i r i n g a c c o r d i n g t o t h e w i r i n g d i a g r a m i n F i g u r e 4 a n d T a b l e 1 .
Input
Overfill Alarm terminal 2
Line (from power panel)
Ack Switch terminal 1
Ack Switch terminal 5 (line)
Horn Time
Delay Relay
console\ovwir.eps
Table 1.- Console Connections
TLS2 or TLS-50 or
TLS-IB TLS-HLD
Connection Connection
Overfill Alarm without Acknowledge Switch (see Figure 4)
J6, 1 J5, 1
J6, 2 J5, 2
Overfill Alarm with Acknowledge Switch (see Figure 3)
J6, 1 J5, 1
J6, 2 J5, 2
Wiring Overfill Alarm without Acknowledgement Switch
Overfill Alarm
(cover open)
Customer supplied
junction box
N
To power panel

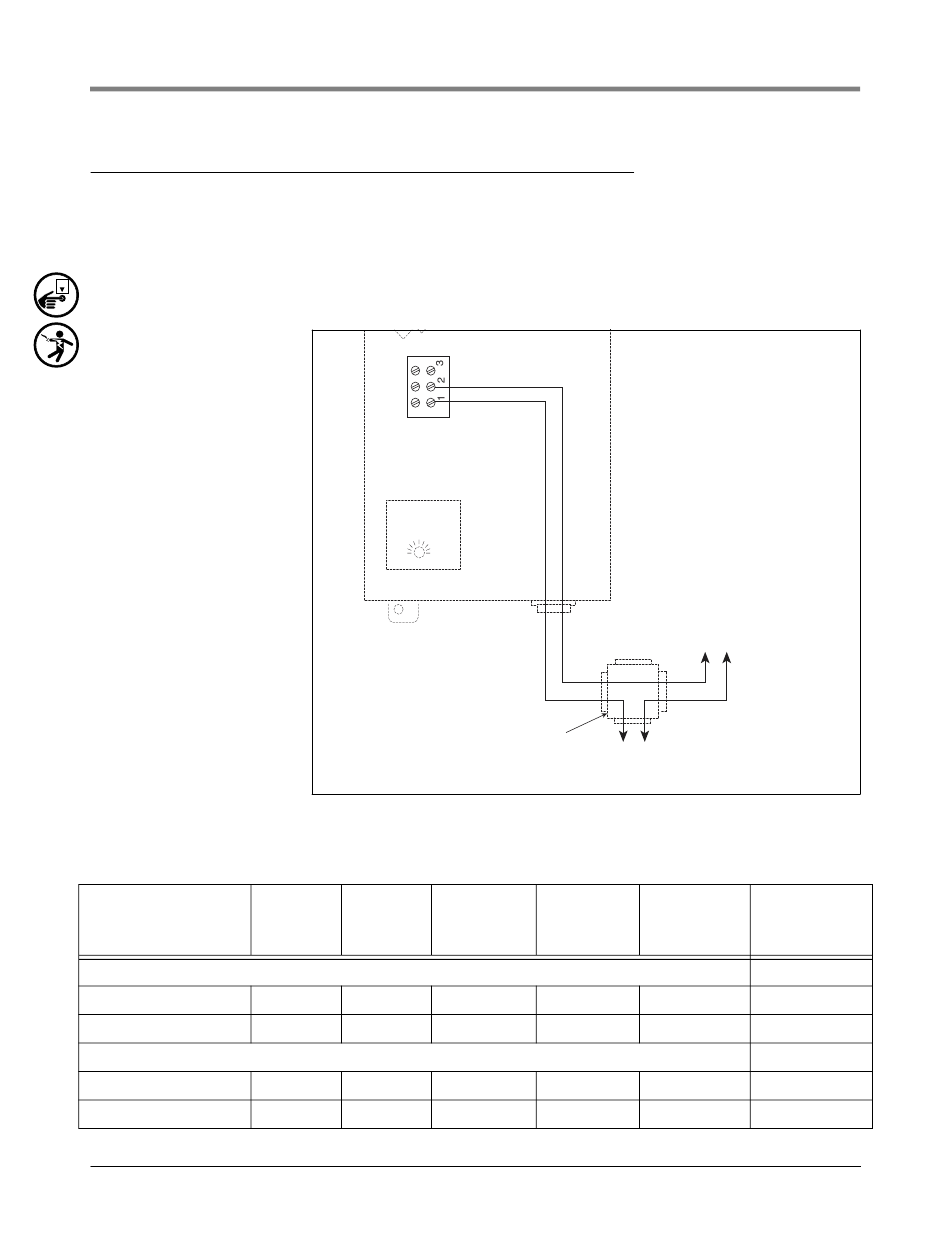

Figure 4. Overfill Alarm only wiring connections

TLS-350
TLS-300
I/O Combo
Output Relay Relay
Connection Connection
NO NO
C C
NO NO
C C
6
ATTACHMENT J
To Console Relay -
See Console Connection
Table in this manual
L
TLS-350
4 Relay Out- TLS-4XX
put Module
Overfill Alarm
Connection Relay Connector
NO NO
C C
NO NO
C C
