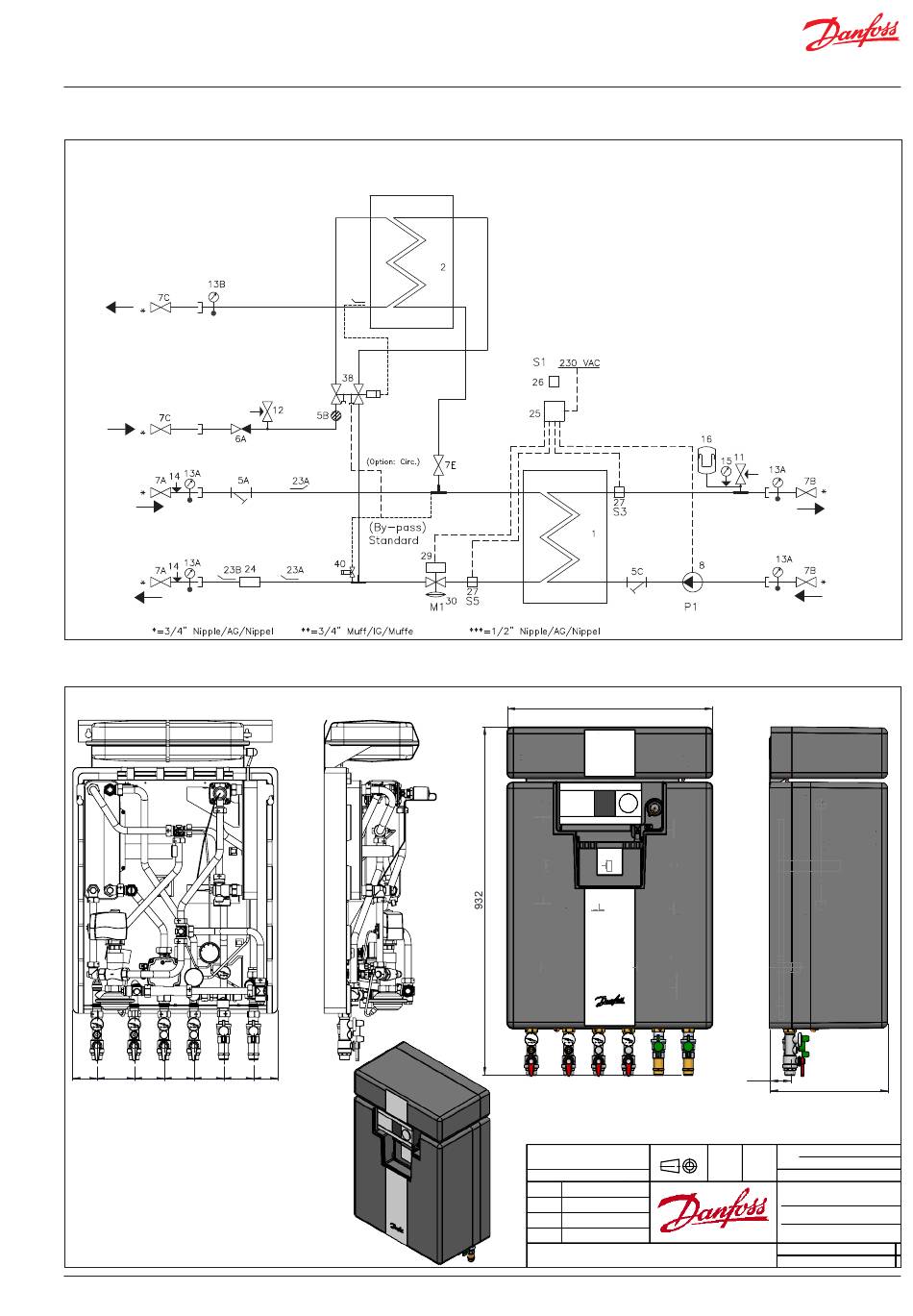

5. DIAGRAM & DIMENSIONAL SKETCH, EXAMPLE - AKVA LUX II VXE A237/337
DHW
DCW
DH
Supply
DH
Return
1 2
A
B
C
D
65 100 80 80
1 2 3 4
Connections:
E
1. District heating (DH) supply
2. District heating (DH) return
3. Heating (HE) return
4. Heating (HE) supply
5. Domestic hot water (DHW)
F
6. Domestic kold water (DCW)
1 2
xxxxxxxxxxxxxxx
3
80 80 65
5 6
1: Fjv. frem
2: Fjv. retur
3: Varme retur
4: Varme frem
5: V.V.
6: K.V
3
Akva Lux II VXe
1 Plate heat exchanger HE
2 Plate heat exchanger DHW
5 Strainer
6 Non-return valve
7 Ball valve ¾
8 Circulation pump
11 Safety valve HE
12 Safety valve DHW
13 Thermometer
14 Manometer connection
15 Manometer
16 Expansion vessel 12 L
4 5
General tolerance accuracy, measurements without tolerance:
ISO 2768 - mK
Weight
Replace
30-10-2018
Design
Approval
Confidential: Property of Danfoss Redan A/S, Nordborg, Denmark.
Not to be handed over to, copied or used by third party. Two- or three
dimensional reproduction of contents to be authorized by Danfoss Redan A/S.
4 5
© Danfoss | Produced by Danfoss Redan A/S | 2021.02 | 9
23A Sensor pocket ½"/10x1, plug M10
for heat meter
23B Plug ½" with O-ring
24 Fitting piece for heat meter
3/4" x 110 mm
25 Danfoss Controller ECL 310/
A237/337
26 Outdoor sensor, ESMT
27 Danfoss sensor, ESMC
29 Danfoss actuator HE, AMV 150
30 Pressure independent control
valve with integrated flow limiter
AVQM
38 PTC2+P controller
40 Thermostat for Bypass/
Circulation
6 7
550
55
Projection Scale Size
1:6 A3
65.592 kg
JJ
Danfoss Redan A/S
6 7
HE
Supply
HE
Return
8
A
B
C
D
315
E
Material
Danfoss Standard
Designation
VXe
F
145F0589
No.
Rev.
Sheet 1 / 1
