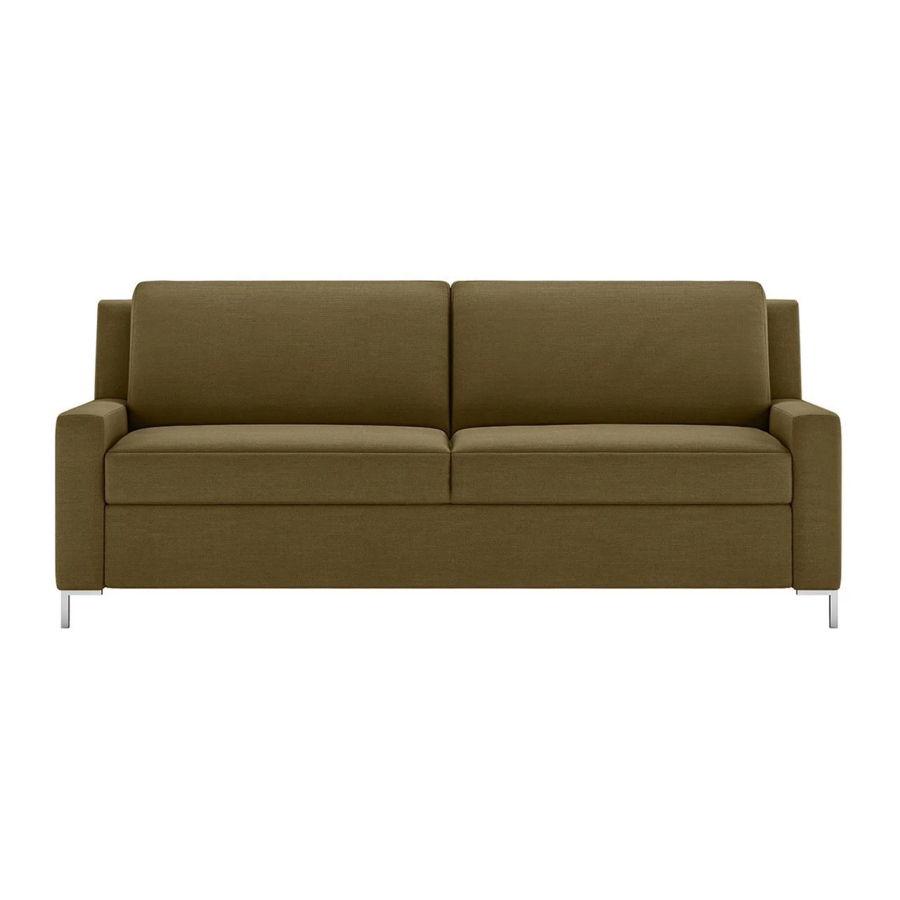

- Page 1 11/28/2017 COMFORT SLEEPER (Ver.8) DISASSEMBLY & REASSEMBLY INSTRUCTIONS...
- Page 2 DISASSEMBLY High Leg Sleeper with “Ear” that extends over the arm Tools: 1/2” & 7/16” sockets, 7/16” wrench, wood block 5” tall, Open bed as shown or mallet plus wood block = 5” (Impact driver optional) Low Leg Sleeper without “Ear” Unhook Velcro holding Dust Cover to back edge of sofa (Low leg sleepers only) Tilt sofa forward onto its Front Arms...
- Page 3 DISASSEMBLY Remove the Bottom Support Panel (High Leg only) Remove Bolt that locks Arm to the Frame on Back with “Ear” “Ear ” Remove the two Springs Place a 5” Block under the Back, near the Arm, and press down on the top of the Arm as shown to release the Back from the Arm on both sides of the sofa...
- Page 4 DISASSEMBLY Remove Back with “EAR” by lifting it up and away For Backs without “EAR”, remove the “Ear ” Inside Back Bolts as shown For Backs without “EAR”, remove the Inside Back Bolts and lift the Back up as shown...
- Page 5 DISASSEMBLY Return the sofa back onto its legs. Remove Two Bolts from each side of the Middle Mattress Section. Lift Middle and Front Mattress Assembly away from the sofa Close the Mechanism from both sides and fold it on the floor...
- Page 6 DISASSEMBLY Remove 4 Bolts from the Back Bed Section on each side, and remove Back Support Tube Mechanism in closed position Remove the Square Back Tube with 7/16” socket Lift Back Bed Section up and out of the sofa and wrench...
- Page 7 DISASSEMBLY Camel Hump Rail Remove 2 Bolts from each side of the Camel Hump Rail Disassembled Sleeper components...
- Page 8 RESASSEMBLY Install the Square Back Tube with 7/16” socket and wrench – Tube mounts on TOP of bracket Install 2 Bolts on each side of the Camel Hump Rail Install 4 bolts on each side. Back Support Tube is attached using the hole from the bottom Install Back Bed Section onto mech...
- Page 9 RESASSEMBLY Open the Mechanism Open the Mech and Place Middle and Front Mattress Assembly Install 2 Bolts through the Bracket on each side onto Mech Brackets Hook Install Back with “EAR” by lining up Hook and Peg Press in and down to seat the Hook and Peg...
- Page 10 RESASSEMBLY Roll sofa body forward onto its Front Arms Install Spring on each side Rear of sofa Wider Wider Narrower Narrower Install the Bottom Support Panel (High Leg only) Install Bolt(s) on each side to attach Back to Arms...
- Page 11 RESASSEMBLY Roll the assembled Sleeper to the upright position as shown. Close and open the sleeper to test it.
