Related Manuals for American Leather Comfort Theatre
Summary of Contents for American Leather Comfort Theatre

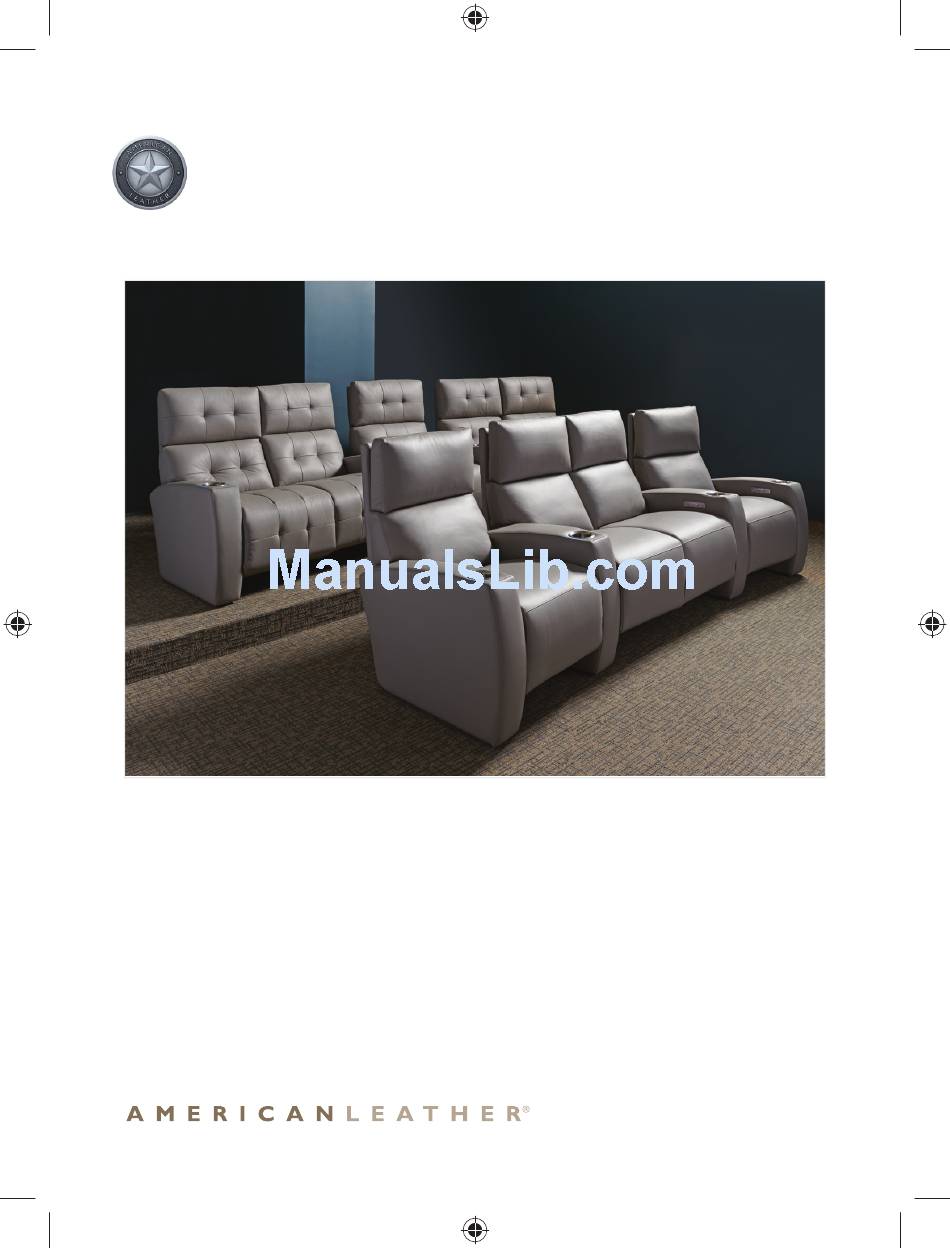

- Page 1 Comfort Theatre by American Leather® YOUR GUIDE TO OPERATING THE ULTIMATE POWER THEATRE SEATING V 07.01.16...
- Page 3 ® Following are helpful hints and important safety information regarding the use and care of your Comfort Theatre ® Please review this instruction manual thoroughly before using your power Comfort Theatre ® This product is intended for household/residential use only.
-
Page 4: Important Safety Instructions
Register your Comfort Theatre warranty at ® www.americanleather.com under the Customer Service section of the website. This will ensure that American Leather ® can contact you in the event of a safety notice or product recall. Please contact your American Leather retailer if you ®... - Page 5 (To Wall) Power Supply Take care when moving the power Comfort Theatre that the ® power cord is not under the legs of the Comfort Theatre , or ® they may get damaged – Never operate the power Comfort Theatre if it has a damaged cord or plug.
- Page 6 Footrest Entrapment: The power Comfort Theatre has a spring-loaded footrest ® to prevent entrapment when the power Comfort Theatre ® is being closed. In the event that something obstructs the footrest, it will stay partially open via springs located on...
- Page 7 - Do not race, play with, or abuse the power Comfort Theatre mechanism. ® - Never operate the power Comfort Theatre if it has a ® damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water.
- Page 8 INSULATION” or “DOUBLE INSULATED.” The symbol (Square within a square ) is also able to be marked on the product. BATTERY SAFETY (optional) If battery operation was purchased as an optional accessory to your power Comfort Theatre there are additional safety ® instructions to be followed:...
- Page 9 WHEN NOT IN USE AND ® STORE OUT OF REACH OF CHILDREN. ALSO, UNPLUG THE MASTER POWER CORD FROM THE CONTROL BOX TO PREVENT USE WHEN A BATTERY IS MOUNTED IN THE COMFORT THEATRE ® POWER SYSTEM. (See Figure 1) WARNING!
-
Page 10: User Maintenance Instructions
None of the electrical components are user-serviceable. Any other servicing should be performed by an authorized service representative. If the power cables or transformer are ever damaged, they can be ordered from your American Leather retailer. ® OVERLOAD PROTECTION The power Comfort Theatre has both electronic and thermal ®... - Page 11 ® extended period of time, remove the power cord from the power socket and wall outlet and store the cord out of reach of children. If the power Comfort Theatre is equipped with ® an optional battery, also unplug the master power cord from the control box.
- Page 12 To raise the footrest, ® press the raised area of the front toggle switch located next to the USB port. If you are sitting in the power Comfort Theatre ® this is the farthest button from the backrest. Simply release the button to stop the footrest in any position.
-
Page 13: Adjusting Headrest
When standing behind the power Comfort Theatre ® you can change the angle by pressing forward on the outside of the headrest. However, if you are already sitting and want to adjust the angle, place both hands on the back of the headrest and pull forward to your desired position. - Page 14 OPTIONAL BATTERY POWER The purchase of the optional battery for use in the power Comfort Theatre allows the power Comfort Theatre ® ® be operated either with the cord plugged into the wall, or with battery power only. This allows you to float the power Comfort Theatre in the room without cords attached.
- Page 15 Comfort Theatre ® at the same time. If the cord is plugged into the power Comfort Theatre ® continuously, the system will not overcharge the battery. The charging time for the battery is about 8 hours.
- Page 16 Power Supply In the event that the battery (See Figure 2) needs to be replaced: Fully open (extend) the footrest and the backrest of the power Comfort Theatre ® Unplug the power socket from the rear of the power Comfort Theatre ®...
- Page 17 Locate the battery to the right of the motor. (See Figure 2) FIGURE 2 Disconnect both battery cord plugs. (See figure 2) Remove the two screws holding the battery to the tray. (See Figure 3) FIGURE 3...
- Page 18 Remove battery from the power Comfort Theatre ® Install new battery with two screws, plug both cords into the connector cords. (Assembly should look like Figure 2) Place the power Comfort Theatre in the upright ® position and plug the cord back into the power socket at the back of the power Comfort Theatre .
- Page 20 americanleather.com V 07.01.16...
