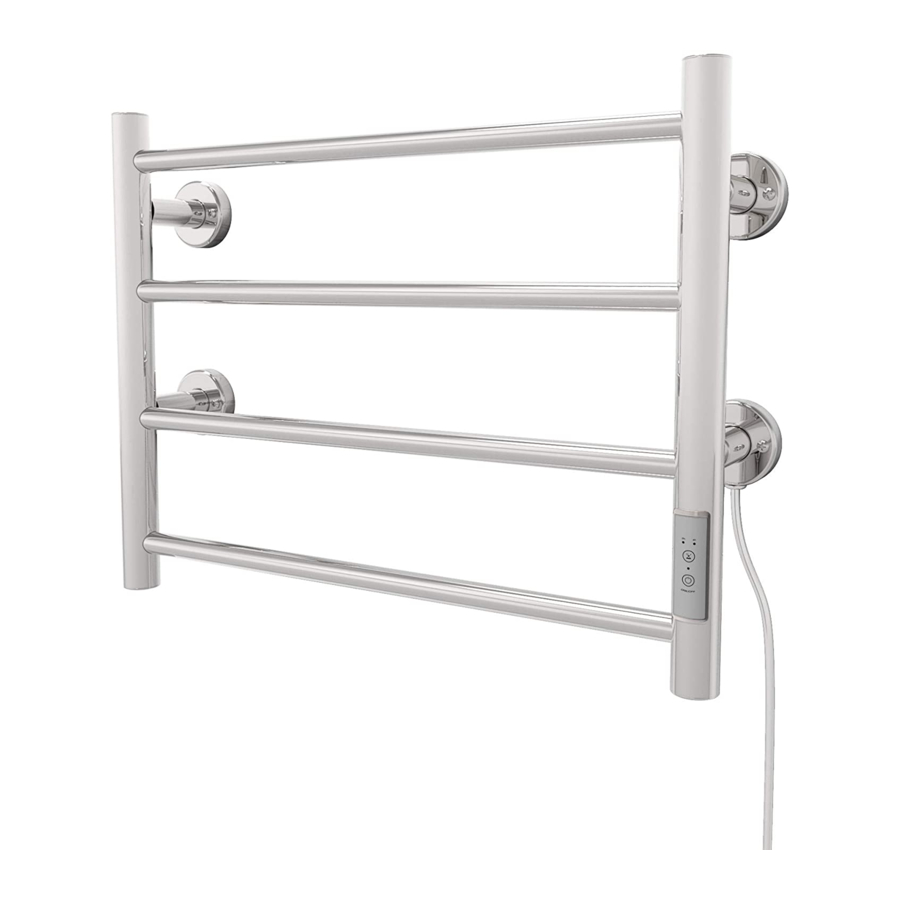

towel warmer
Model OD-0704
SPECIFICATIONS
Voltage: AC 120V
Rated power : 40 W (OD-0704-SS) 50 W (OD-0704-MB)
Unit size: 400 X 530 mm
This towel warmer is intended for the use in bathrooms or laundry areas.
Read the instructions carefully before operating.
1
8

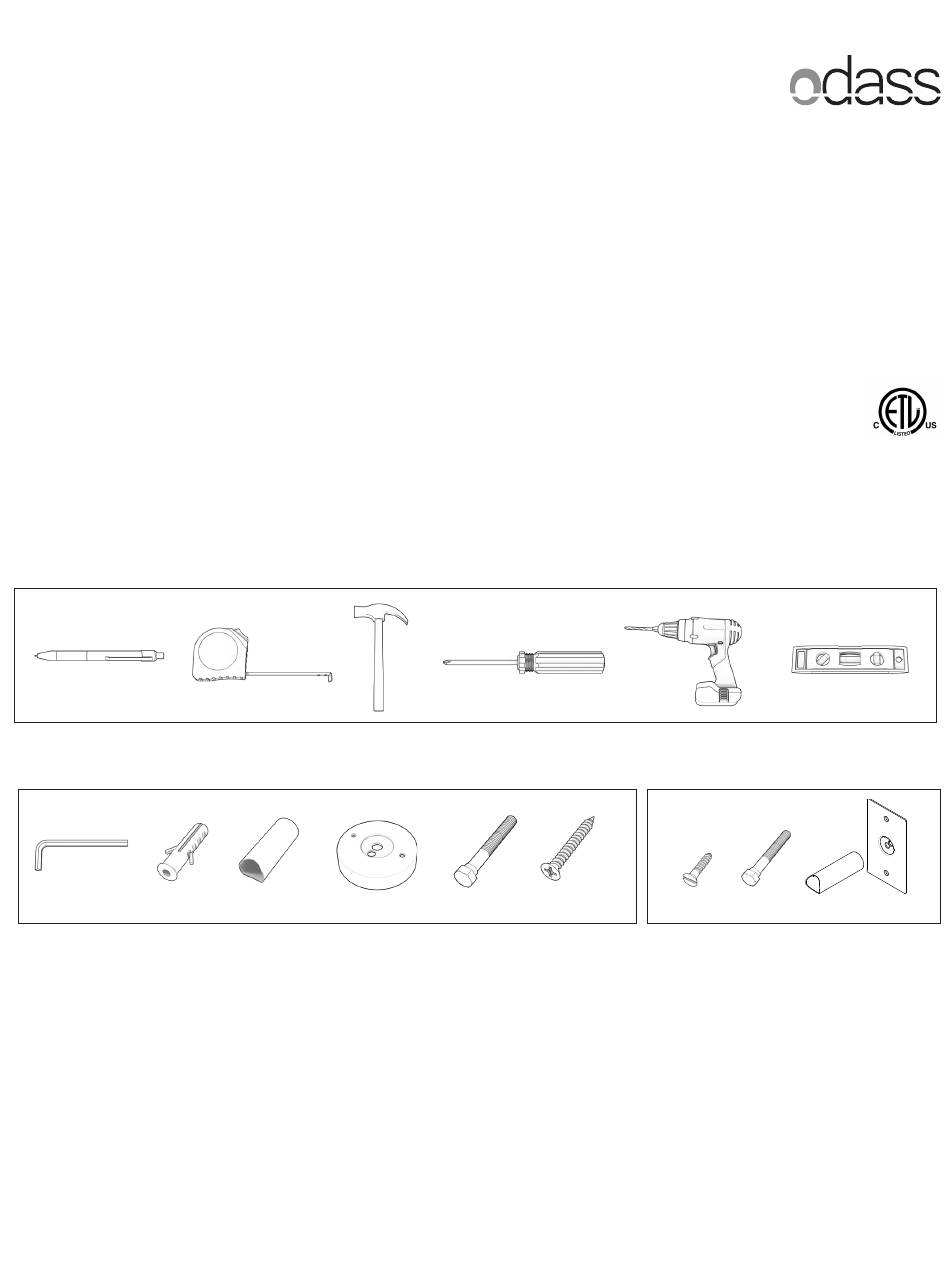

Please read the wall-mounted installation carefully to understand how to install on your ideal location of the wall.
Please use the services of a certified electrician for the apparent wireless installation of this product.
Make sure to complete the installation before using it.
Plug the power cord into an electrical outlet for the apparent wire installation.
Switch ON/OFF : Press button ON/OFF, product will start to work, if you want to stop it, press the button again.
The timer can be adjusted to 2 h (hour) or 4 h (hour). Press the button to select the right time.
Please turn it off and take the plug out from the outlet if you are not using it.
Frequency: 60 Hz
3+1
3+1
4
8
84.00 mm
115.00 mm
C:\dessin classé compagnie\Odass\round tube.asm
Hardwire installation
70.00 mm
bolt
2
1
wire hole
1
TOLERANCES
SAUF CONTRE INDICATION, LES
DIMENSIONS SONT EN POUCES.
± 1/16"
1/X
± .01"
.XX
.XXX
± .003"
.XXXX
± .0005"
± 1°
ANGLE
FINI DE SURFACE :
PROJECTION :
1
#6-32 screw
0.75" long
92.00 mm
Asn Machinerie inc
CE DOCUMENT EST LA
82 St-Joseph Sud
Asn
PROPRIÉTÉ DE
Rivière-Bleue qc
Machinerie inc
IL NE DOIT
Canada G0L-2B0
PAS ÊTRE DÉVOILÉ, UTILISÉ
tel:418-893-5844
fax:418-893-2858
OU REPRODUIT EN TOUT OU
EN PARTIES SANS
cell:418-714-1829
L'AUTORISATION ÉCRITE DE .
alain@asnmachinerie.com
Asn Machinerie inc
www.asnmachinerie.com
NOM
round tube ASM.dft
DESSINÉ PAR
DATE DESSINÉE
21-02-2020
Client
CLIENT
125
emplacement
PAGE
ÉCHELLE
REV
1 de 1
N/A
Advertisement
Table of Contents
Related Manuals for odass OD-0704
Summary of Contents for odass OD-0704
- Page 1 SPECIFICATIONS Voltage: AC 120V Frequency: 60 Hz Rated power : 40 W (OD-0704-SS) 50 W (OD-0704-MB) Unit size: 400 X 530 mm This towel warmer is intended for the use in bathrooms or laundry areas. Read the instructions carefully before operating.
- Page 2 Plug-in installation instruction 1. Identify the location of the holes needed for the screws on the wall. 2. Drill holes in the wall. 3. Insert screw anchor into the holes. 4. Rivet the base onto the nut with 5. Install the base with the screw. the fixing screw.
- Page 3 Hardwire installation instruction 1. Identify the location of the holes needed for the screws on the wall. 2. Drill holes in the wall. 3. Insert screw anchor into the holes. 4. Cut the supply cable. Make sure to keep enough wire to go through the tube and to plug into the junction box.
- Page 4 9. Install the base with the screws. 10. Press the button to turn it on or off, select on the timer 2 or 4 hours.
