5.2.3
5.3 Stereo Mixer Block Diagram

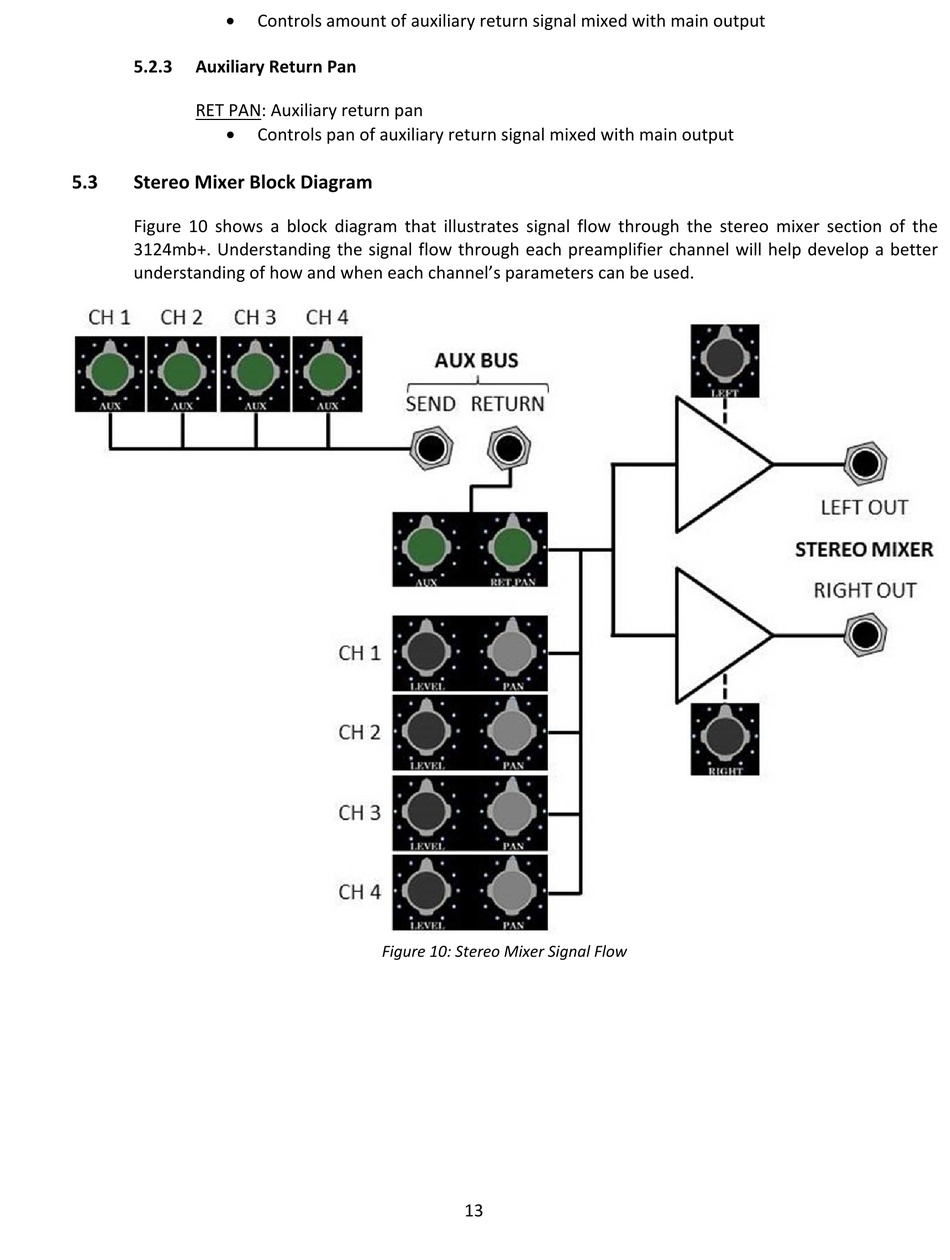

Figure 10 shows a block diagram that illustrates signal flow through the stereo mixer section of the
3124mb+. Understanding the signal flow through each preamplifier channel will help develop a better
understanding of how and when each channel's parameters can be used.

Controls amount of auxiliary return signal mixed with main output
Auxiliary Return Pan
RET PAN: Auxiliary return pan

Controls pan of auxiliary return signal mixed with main output
Figure 10: Stereo Mixer Signal Flow
