4.7
Preamplifier Block Diagram
Figure 7 shows a block diagram that illustrates signal flow through each preamplifier channel of the
3124mb+. Understanding the signal flow through each preamplifier channel will help develop a better
understanding of how and when each channel's parameters can be used.

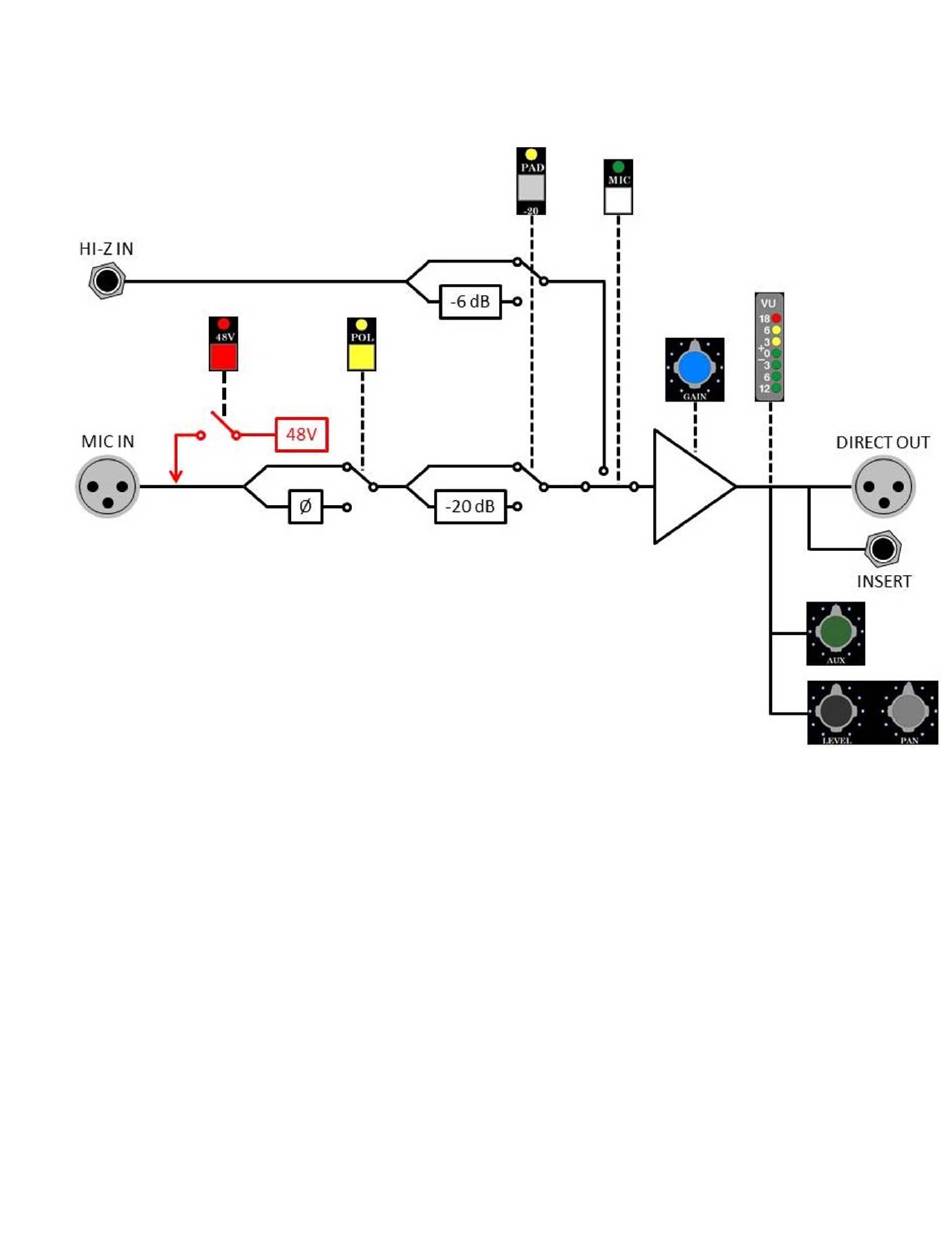

Figure 7: Preamplifier Signal Flow
11
