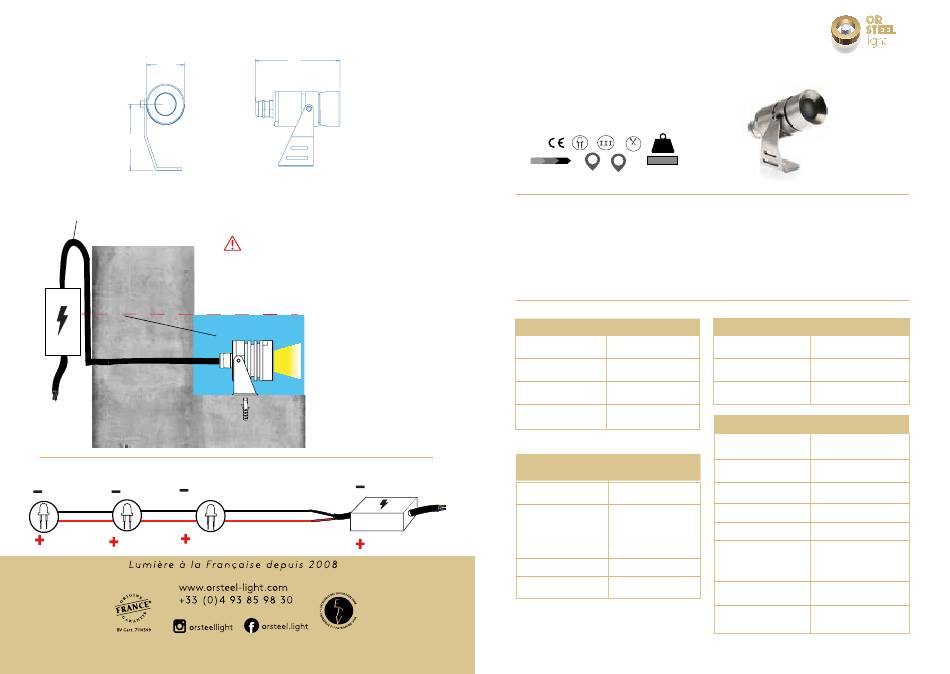

OR STEEL light DRAGONNET 12-24VDC Technical Manual

TECHNICAL SCHEMATICS
32 32
52 52
INSTALLATION SCHEMATICS
Cable ref CAB0010
NEVER TURN ON THE PROJECTEUR
IF IS NOT UNDER WATER.
Concrete
Parallel wiring 12-24VDC
All data are given for information purposes only. They do not constitute a contractual commitment on our part and are subject
to change at any time.
78 78
Water level
TECHNICAL MANUAL
DRAGONNET
12-24VDC
0,22
ACS
A A+ A++
IP69
IK10 T° max 55°C
This submersible spotlight with its directable head will enhance your ponds, waterfalls,
swimming pools and lagoons whether fresh or salt water. It is made from 316L stainless
steel which, together with its IP69 cable, makes it perfectly watertight and extremely
resistant to corrosion.
Electrical features
POWER 1x2,5W
SUPPLY 12-24VDC
POWER SUPPLY Not included
WIRING Parallel
Features
lighting technology
AVERAGE LIFE OF THE 60 000 hours
LED Certified L90 B10
COLOR EMISSION 2700K - 3000K -
4000K - 6000K
RED - GREEN
BLUE - AMBER
ANGLE BEAM 6°-25°-40°-115°
INITIAL OUTFLOW 237lm at 3000k
Mechanical features
Ø32x78mm
DIMENSIONS
WEIGHT 0.22kg
MATERIALS INOX316L
electropolished
General features
OPERATING - 20°c ~+ 60°
TEMPERATURE
INGRESS PROTECTION IP69
IMPACT RESISTANCE IK10
A / A+ / A++
ENERGY CLASS
APPLICANCE CLASS CLASS III
WALKOVER FIXTURE NO
DRIVE-OVER FIXTURE NO
WIRES 2x0,5 mm2 in IP68
PHOTOBIOLOGICAL Risk group I
SAFETY
