OR STEEL light HIPPOCAMPE Technical Manua

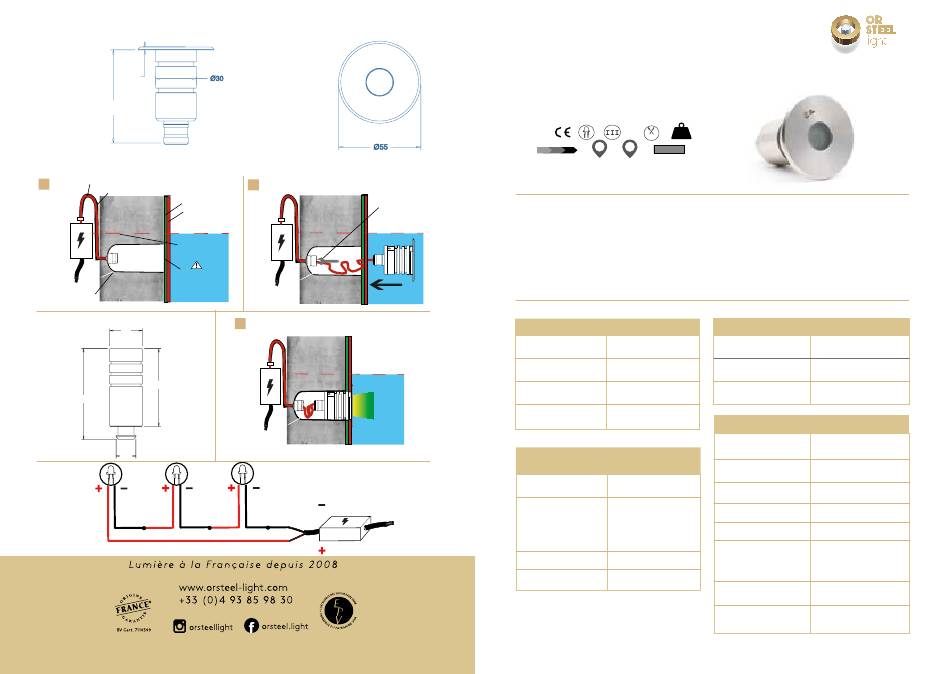

TECHNICAL SCHEMATICS
2 2
66 66
INSTALLATION SCHEMATICS
1
Wire ref CAB0010
Flexible ref TA802 max 10mm
Mortar
Tile
Concrete
Water level
Sealing casing
Fourreau
Sealing casing
to the edge of
the mortar
Connect to the ground
Sealing Casing
40
90
105
24,5
All data are given for information purposes only. They do not constitute a contractual commitment on our part and are subject
to change at any time.
2
max 10mm
Tighten the
cable gland
Concrete
Water level
3
Concrete
Water level
Serial Wiring 350-700mA
TECHNICAL MANUAL
HIPPOCAMPE
350mA-700mA
0,18
ACS
IP69 IK10
A A+ A++
T° max 55°C
The Hippocampe submersible recessed spotlight is for occasional use and lighting small
underwater areas. This spotlight is ideal for lighting stairs, small pools or waterfalls. It
is also very much appreciated for all types of lighting in a marine environment. This
spotlight has been designed in 316L stainless steel to IP69 standard so it is perfectly
watertight in an aquatic environment.
Electrical features
POWER 1x2.5W
SUPPLY 350mA-700mA
POWER SUPPLY Not included
WIRING Serial
Features
lighting technology
AVERAGE LIFE OF THE 60 000 hours
LED Certified L90 B10
COLOR EMISSION 2700K - 3000K -
4000K - 6000K
RED - GREEN
BLUE - AMBER
ANGLE BEAM 6°-25°-40-115°
INITIAL OUTFLOW 237lm at 3000k
Mechanical features
DIMENSIONS Ø55mmx68mm
WEIGHT 0.18kg
MATERIAL INOX316L
electropolished
General features
OPERATING - 20°c ~+ 40°
TEMPERATURE
INGRESS PROTECTION IP69
IMPACT RESISTANCE IK10
A / A+ / A++
ENERGY CLASS
APPLICANCE CLASS CLASS III
WALKOVER FIXTURE NO
DRIVE-OVER FIXTURE NO
WIRES 2x0,5mm2 in IP68
PHOTOBIOLOGICAL Risk group I
SAFETY
