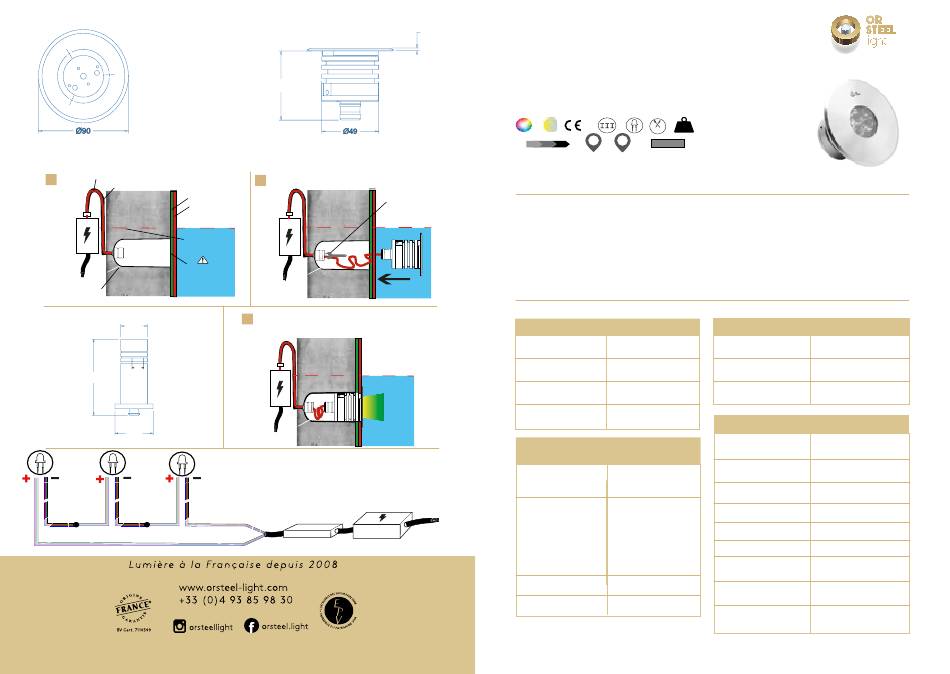

OR STEEL light NEMO Technical Manual

TECHNICAL SCHEMATICS
INSTALLATION SCHEMATICS
1
Wire ref CAB0010
Flexible ref TA802 max 10mm
Mortar
Tile
Concrete
Water level
Sealing casing
Fourreau
Sealing casing
to the edge of
the mortar
Connect to the ground
Sealing casing
56 56
24,5
16 160 0
80 80
All data are given for information purposes only. They do not constitute a contractual commitment on our part and are subject
to change at any time.
2, 2,5 5
61 61
2
max 10mm
Tighten the
cable gland
Concrete
Water level
3
Concrete
Water level
Serial wiring RGBW
TECHNICAL MANUAL
NEMO
RGBW/DYNAMIC WHITE 700mA
0,48
ACS
IP69 IK10
A A+
A++
T° max 55°C
Very appreciated by swimming pool specialists, the Nemo submersible flush mounted
spotlight provides incomparable lighting and enhancement in aquatic zones (ponds,
swimming pools, aquatic spaces or spas). It also adapts well to marine or fresh water
environments and its high luminous flux gives excellent underwater light diffusion. It is
watertight, guaranteed 316L stainless steel to IP69 standard.
Electrical features
POWER 1x10W
SUPPLY 700mA
POWER SUPPLY Not included
WIRING Serial
Features
lighting technology
AVERAGE LIFE OF THE 60 000 hours
LED Certified L90 B10
COLOR EMISSION RGBW :
Red - Green - Blue -
4000°K
Dynamic White :
2700°K - 3000°K
4000°K - 6000°K
10°-25°-40-115°
ANGLE BEAM
INITIAL OUTFLOW 634lm at 4000k
Mechanical features
DIMENSIONS Ø90x63.5mm
WEIGHT 0,48kg
MATERIALS INOX316L
electropolished
General features
OPERATING - 20°c ~+ 40°
TEMPERATURE
INGRESS PROTECTION IP69
IMPACT RESISTANCE IK10
A / A+ / A++
ENERGY CLASS
APPLICANCE CLASS CLASS III
WALKOVER FIXTURE NO
DRIVE-OVER FIXTURE NO
WIRES 8x0,22mm² in IP68
PHOTOBIOLOGICAL Risk group I
SAFETY
