Package Contents

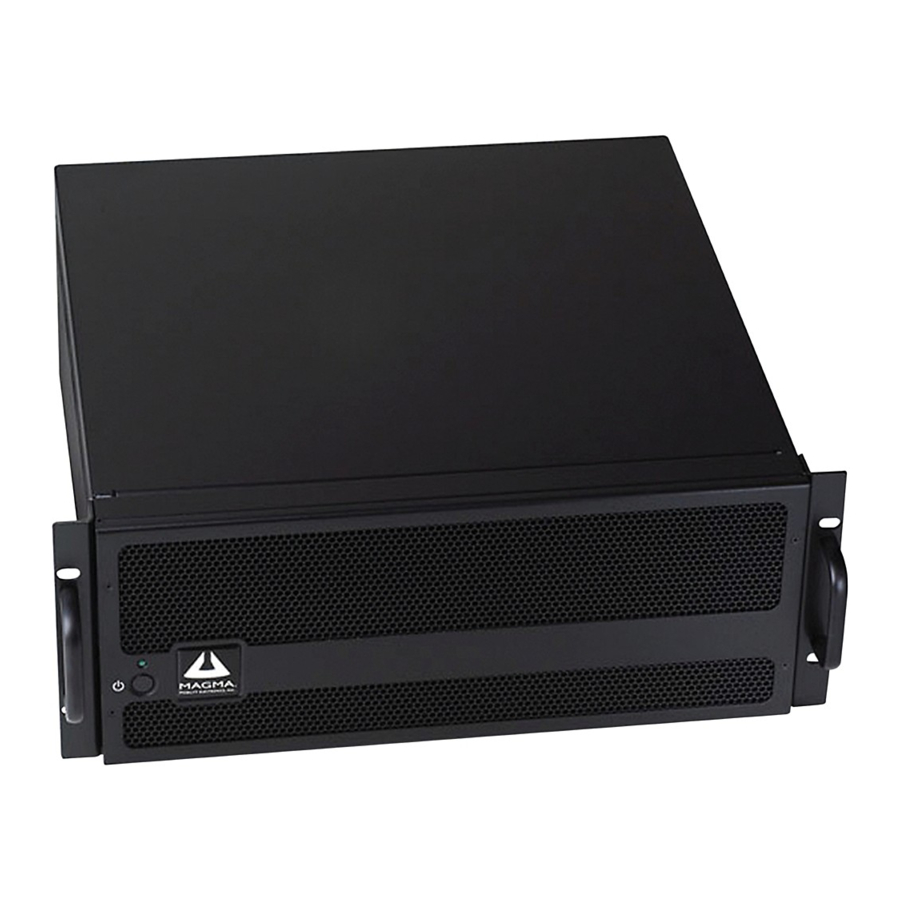

(1) Magma EB7 chassis
(1) PCIe Cable x8 to x4
IMPORTANT
!
Important safety information and other information on how to use Magma ExpressBox
Guide.This manual is available online for a download at www.magma.com/support/manuals.
1

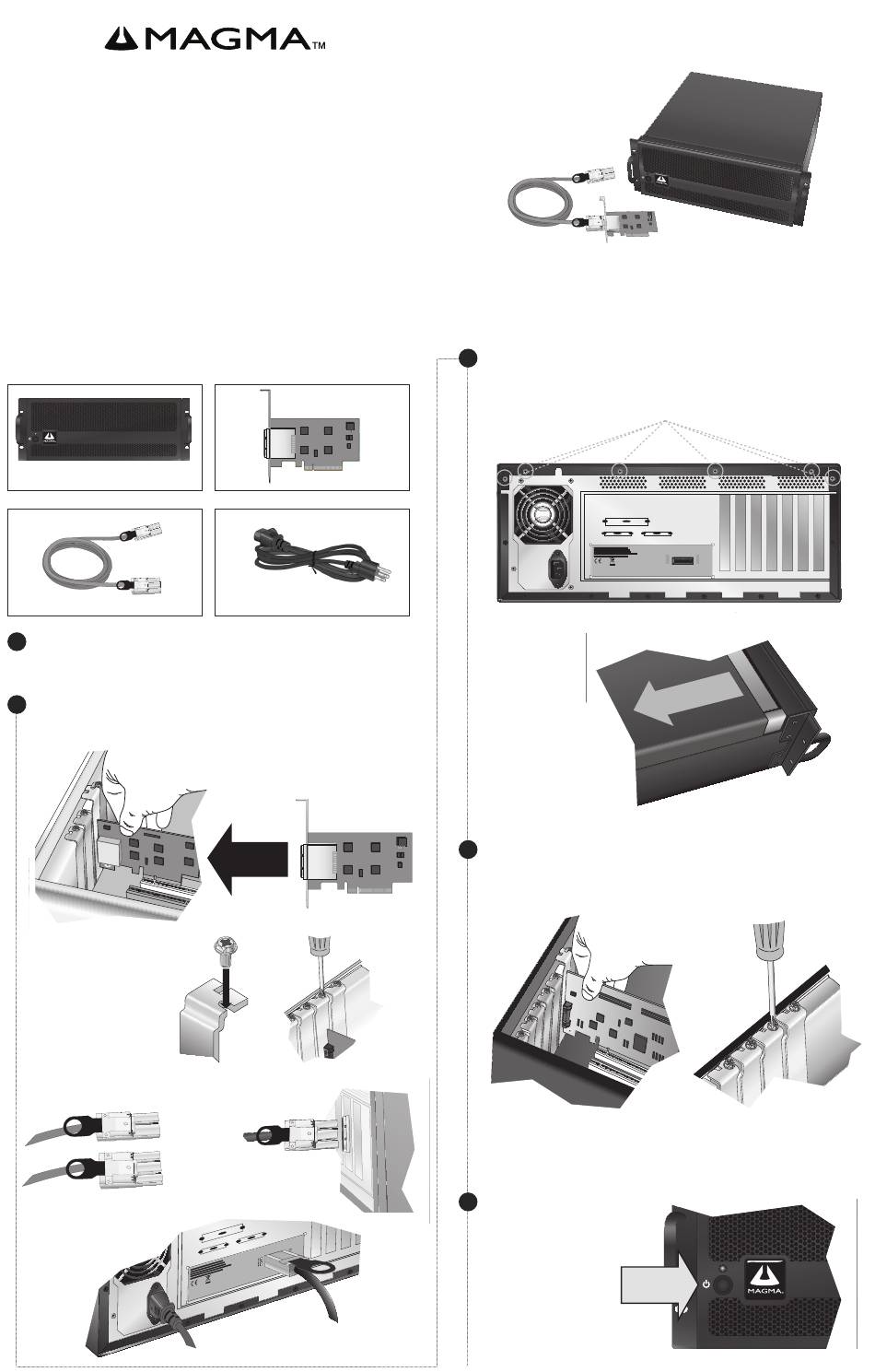

Install PCI Express Host card and connect cables
Install the Magma PCI Express Host Card into an available PCI Express slot in your computer.
Secure it with retaining screw.
Connect the x8 side of the iPass cable to the host card.
x4
x8
Connect the x4 side of the
iPass cable to the back of the
EB7 chassis along with the
chassis power cord.
Magma
(1) Magma PCIe Host Card
(1) Power Cord
7
are provided in the User
HOST COMPUTER
HOST COMPUTER
x8 Connector
7
ExpressBox
x4 Connector
09-09965-01-A
2
Open Enclosure
Remove the 6 screws that retain the top cover of the expansion chassis.
Slide the cover
backwards and upwards.
3
Install PCI Express cards
Remove PCI Express filler bracket for the expansion slot you wish to use in
the chassis. Install peripheral PCI Express card into the slot connector and
secure with retaining screw.
Repeat the process for all other PCI Express peripherals you wish to install
in the chassis.
4
Power on ExpressBox
Turn the power on using
the power switch on the
front of the chassis. Verify
that the green LED above
the power switch is on.
Quick Installation Guide
Magma
7
ExpressBox
(6 locations)
0
4
1
5
2
6
3
7
