1.5

Disassembly and Assembly Procedures

This section provides disassembly and assembly procedures for the Compaq TFT500 Flat Panel

Monitor. Before you begin any of these procedures, be sure to turn off the power to the monitor,

computer system, and other attached devices; then disconnect the power cable from the electrical

outlet.

CAUTION: As you disassemble the monitor, be sure to place the screws in a safe place, and separate

them according to their groupings.

1.5.1

1. Before removing the power supply (spare part no. 296473-001), disconnect the AC cable and all

USB peripheral cables from the power supply.

2. Lay the monitor down on the front bezel on a soft, stable area.

3. Remove the power supply from the monitor base by pulling out on the two clips - one on each

side of the power supply, then pull the power supply outwards and lift it out.

4. Disconnect the DC cable from the power supply.

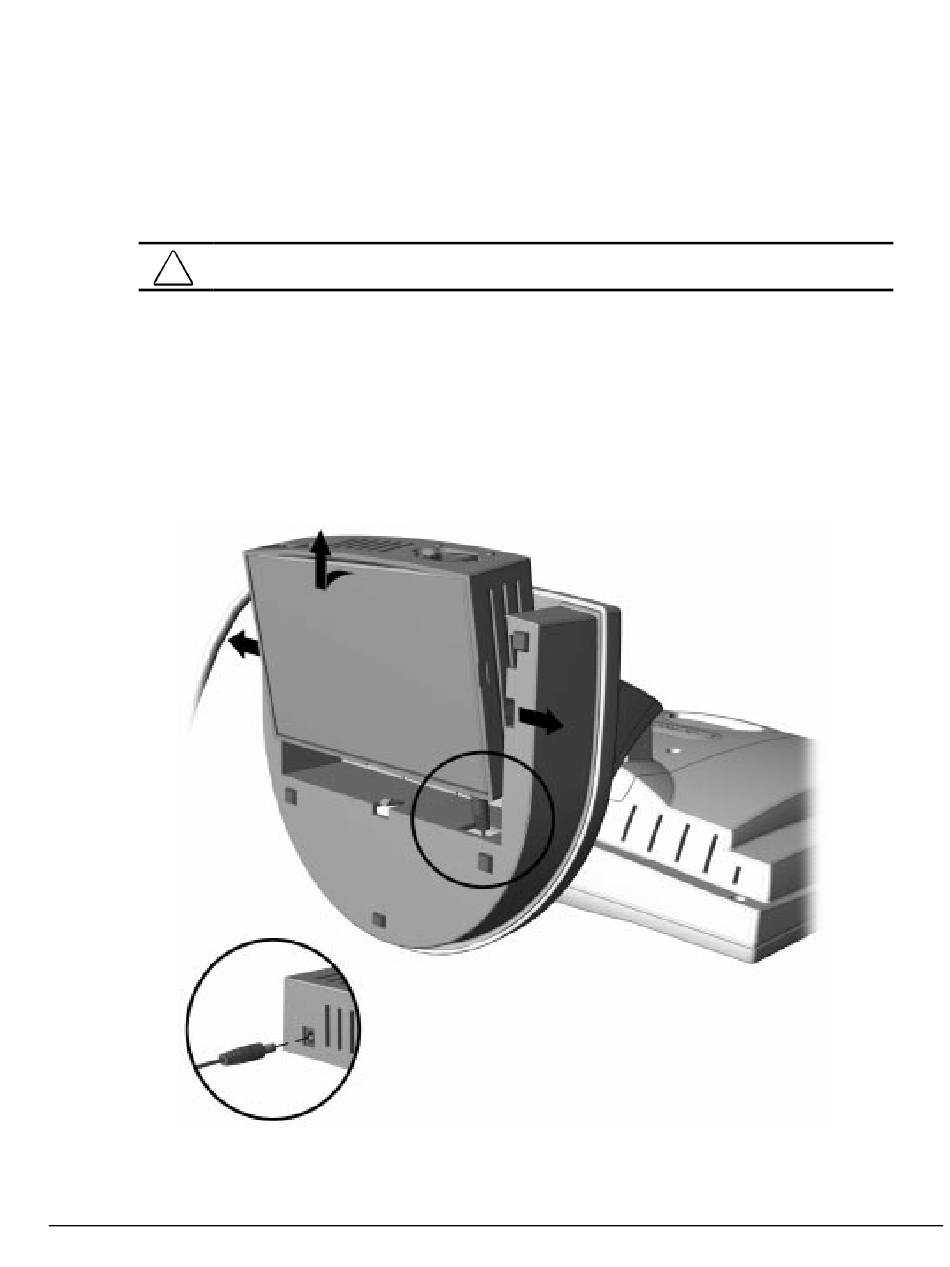

Figure 1-4. Removing the power supply

To reinstall the power supply, reverse this procedure.

Compaq TFT500 Flat Panel Monitor

1-5
