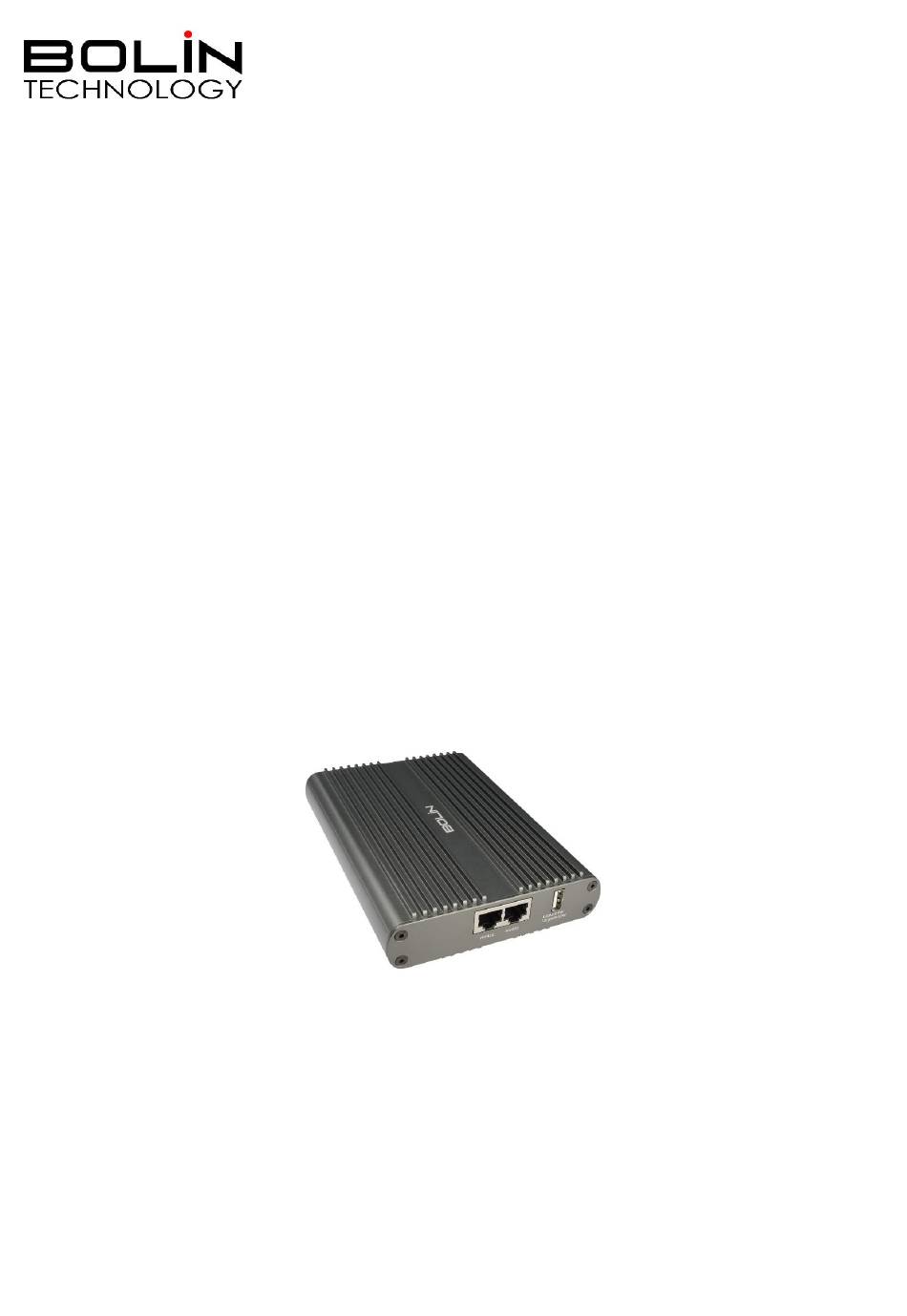

- Page 1 Visca Over IP Serial Control Converter USER MANUAL VERSION: VCC-BL-VNS-07202020 © 2020 Bolin Technology...
-
Page 2: Table Of Contents
Contents IMPORTANT INFORMATION ..............................3 WHAT’S IN THE BOX ................................5 OVERVIEW .................................... 6 ..................................... 6 ODEL UMBERS ......................................6 EATURES VISCA OVER IP SERIAL CONTROL CONVERTER ........................7 SYSTEM CONFIGURATION ..............................8 ....................................8 IAGRAM ......................................9 OWER ........................................9 VISCA OVER IP CONTROL ............................... -
Page 3: Important Information
Before operating the unit, please read this manual thoroughly and retain it for future reference. Copyright Copyright 2015-2020 Bolin Technology all rights reserved. No part of this manual may be copied, reproduced, translated, or distributed in any form or by any means without prior consent in writing from our company. - Page 4 WARNING! Installation and removal of the unit and its accessories must be carried out by qualified personnel. You must read all of the Safety Instructions supplied with your equipment before installation and operation. Warnings: • If the device does not work properly, please contact your dealer. Never attempt to disassemble the device yourself.
-
Page 5: What's In The Box
WHAT’S IN THE BOX Accessories (Optional) -
Page 6: Overview
Overview Model Numbers This user guide is suitable for the following models: • BL-VNS-1 Features • Hardware Visca over IP solution • Support 802.3at PoE+ • Provide Serial RS-232, RS-422/485 control over Ethernet by Visca over IP protocol • MCU firmware upgradable via USB port •... -
Page 7: Visca Over Ip Serial Control Converter
Visca over IP Serial Control Converter 1. 12V DC Power Port Connect include 12V DC power adaptor and cord 2. Power LED Indicator Turns red when the device is boot up completely. 3. RJ45 Port for IP/PoE Network Used for IP network connection, support PoE power supply (IEEE 802.3at) 4. -
Page 8: System Configuration
System Configuration Port Diagram... -
Page 9: Power
Power • Use only the DC power adaptor (JEITA type4) supplied with the unit. Do not use any other DC power adaptor. • If using POE to power the camera, PoE+(IEEE802.3at) is supported • Ensure that the POE power source has sufficient power budget to power the camera, or some features may not function properly. -
Page 10: Visca Over Ip Network Configuration
The communication specifications of VISCA over IP are followings: • Interface: RJ-45 10/100M • Interface protocol: IPv4 • Transport protocol: UDP • IP address: 192.168.0.13 By default • Port: 52381 VISCA over IP Network Configuration Re-assign the camera The default information of the IP camera is following: •... -
Page 11: Rs232 Serial Control Via Visca Over Ip
RS232 serial control via Visca Over IP NOTE: • This Visca Over IP converter does not support Daisy Chain multiple camera control. • This diagram shows how to make the connection correctly, for you to make the control with the controller and the camera successfully, please refer to your controller and camera user guides. -
Page 12: Rs422 Serial Control Via Visca Over Ip
• The baseline cable standard for HD/4K systems is Cat5e. Signal greater distances can be achieved by using Cat6e or higher above as Cat7, which have thicker copper cores for easier signal transfer. • Whichever network cable type you choose, ensure that the main wiring is ‘solid core’, not ‘patch’... -
Page 13: Connection For Controlling Sony Serial Control Ptz Camera
You can use CAT5/6 T-568B Standard Ethernet cable direct connects between the camera and the converter to make RS422 connection by following the pin definition below: Connection for controlling SONY serial control PTZ camera NOTE: • It requires a special firmware to control SONY serial PTZ camera. Please consult your seller to gain the correct version of the firmware. -
Page 14: Firmware Upgrade
The firmware upgrade process is intended to be performed under the supervision of a BOLIN-Authorized repair technician. For assistance with this, please contact your authorized BOLIN Technology dealer, installer, or integrator. BOLIN Technology Technical Support can also be reached for assistance with this process Upgrade via IP You can upgrade device IP Firmware via IP. -
Page 15: User Quick Notice Guide
Part Two Bolin IP web interface User Quick Notice Guide This Visca-Over-IP Serial Control Converter does not have video IP streaming functionality. All features related to IP video streaming are not functional. IP feature is limited with the web GUI. This Quick Guide is for Bolin FHD/4K Dual Output PTZ camera IP web interface use. -
Page 16: Network Connection
updating process takes about 3 minutes. After the update is successful, the page will prompt “Upgrade is successful…”, please click OK button to reboot the camera. • Please don’t power off or reboot the camera during the whole updating process, until the page prompt “Upgrade is successful…”... -
Page 17: Logging In To The Web Interface
• A BOLIN Technology Support team will provide a temporary password that is only valid for 24 hours, which can be used to log in to the camera to create a new password. Please use the temporary password within 24 hours, you will have to repeat the above process to get a new temporary password if it gets expired. -
Page 18: Network-Network Setting-Network
Network-Network Setting-Network The network tab is where the user is able to configure the following: • DHCP options DHCP – An IP address will be dynamically assigned to the camera from the gateway (router) Static IP – The user will enter / define the IP address •... -
Page 19: System-System Setting- Device
System-System Setting- Device This setting page is to get the basic product information of the camera. • Device Name You can set a name to this camera • Model Number The specific model of this camera • Product Serial Number The serial number of this camera, each serial number is unique and fixed, can’t be modified. -
Page 20: System-System Settings-Maintenance
▪ Firmware for FPGA. The name of the file shown as “BC9-FPGA-xxxxxx.dat” A firmware file can be obtained from BOLIN Technology website: www.bolintechnology.com NOTE: For MCU version upgrade, please refer to “Upgrading MCU Firmware” in User Manual Part 1. NOTE: You need to add the camera IP interface URL to the IE browser’s Trusted sites before to start upgrade, otherwise, you will be prompted that the file cannot be opened. - Page 21 2082 TECHNOLOGY LLC BOLIN TECHNOLOGY...
