- Page 1 1 DATECS Linea Pro 5 Industrial User Manual...
- Page 2 LEGAL NOTICE THE INFORMATION IN THIS DOCUMENT CANNOT BE REPRODUCED IN ANY MECHANICAL, ELECTRICAL OR ELECTRONIC WAY AND UNDER ANY CIRCUMSTANCES WITHOUT THE WRITTEN CONSENT FROM DATECS LTD. Address: 4 Datecs Street, Sofia 1592, Bulgaria Phone: +359 2 816 55 50 Fax: +359 2 816 55 65 E-mail: export@datecs.bg...
- Page 3 1 DATECS LINEAPRO 5 INDUSTRIAL USER MANUAL REVISION HISTORY Version Date Change description 1.0.0 09.04.2020 First Release 2.0.0 26.10.2020 Added section “Regulatory” UM 07.01.19/v1.0.0...
-
Page 4: Table Of Contents
1 DATECS LINEAPRO 5 INDUSTRIAL USER MANUAL CONTENTS REGULATORY ................................... 5 TECHNICAL SPECIFICATIONS ..............................6 GENERAL VIEW ..................................8 GETTING STARTED ................................. 10 ATTACHING APPLE DEVICE TO LINEAPRO 5 INDUSTRIAL ..................... 11 REPLACING BATTERY OF LINEAPRO 5 INDUSTRIAL ......................13 OPERATION MODES ................................ -
Page 5: Regulatory
Consult the dealer or an experienced radio/TV technician for help. Consult the dealer or an experienced radio/TV technician for help. Any change or modification to the product not expressly approved by Datecs Ltd could void the user's authority to operate the device. -
Page 6: Technical Specifications
1 DATECS LINEAPRO 5 INDUSTRIAL USER MANUAL TECHNICAL SPECIFICATIONS Two Scan buttons Keyboard and Buttons Battery status button Reset device button Supports: ISO/IEC 14443 Type-A/MIFARE - MIFARE MINI - MIFARE CLASSIC-1K, MIFARE CLASSIC-4K - MIFARE ULTRALIGHT, ULTRALIGHT-C - MIFARE PLUS 2K/4K... - Page 7 1 DATECS LINEAPRO 5 INDUSTRIAL USER MANUAL Use only original equipped DATECS cable USB-A to USB-C (Z05C000000-05) or approved USB-C to USB-C cable for charging Apple device. Use only approved USB adapters. The minimum requirements of USB adapter is 5V/2.1A! Waste Electrical &...
-
Page 8: General View

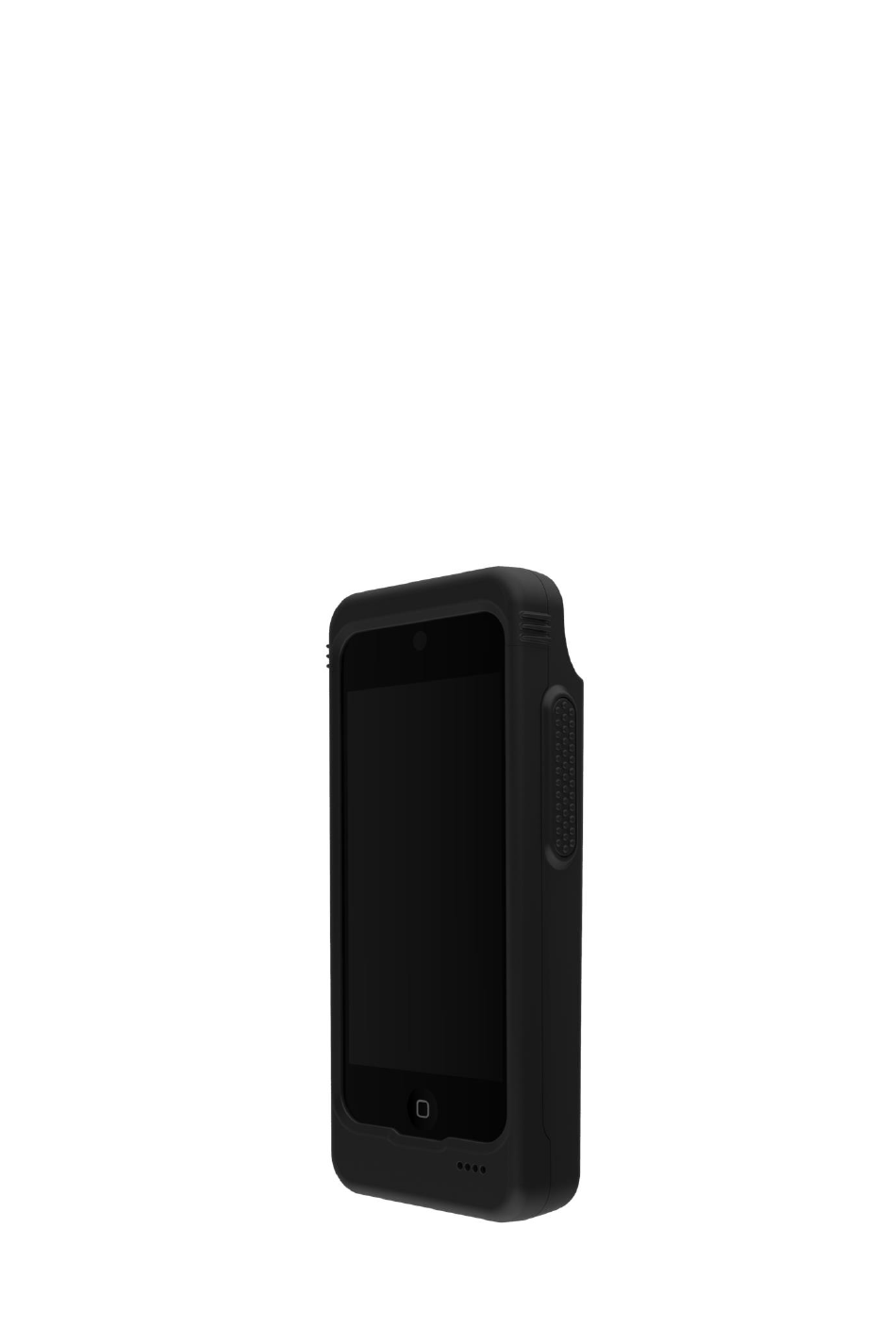

1 DATECS LINEAPRO 5 INDUSTRIAL USER MANUAL GENERAL VIEW UM 07.01.19/v1.0.0... - Page 9 1 DATECS LINEAPRO 5 INDUSTRIAL USER MANUAL 1. Barcode engine 6. Volume buttons of Apple device 2. Back Cover 7. On/Off button of Apple device 3. Right scan button 8. Linea battery cover lock/unlock lever 4. USB type-C connector 9. Battery cover 5.
-
Page 10: Getting Started
GETTING STARTED LineaPro 5 Industrial has rechargeable Li-ion battery. Can be charge from USB port or External features connector. Power source can be variable from USB wall adapters, Datecs power stations … Before first use, battery must be fully charged. -
Page 11: Attaching Apple Device To Lineapro 5 Industrial
1 DATECS LINEAPRO 5 INDUSTRIAL USER MANUAL ATTACHING APPLE DEVICE TO LINEAPRO 5 INDUSTRIAL First is need to be removed back cover. Then must be slide down iPhone to Linea Pro 5 Industrial lightning connector. UM 07.01.19/v1.0.0... - Page 12 1 DATECS LINEAPRO 5 INDUSTRIAL USER MANUAL Slide until completely fit of the iPhone to LineaPro 5 Industrial. Place back cover to LineaPro 5 Industrial. UM 07.01.19/v1.0.0...
-
Page 13: Replacing Battery Of Lineapro 5 Industrial
1 DATECS LINEAPRO 5 INDUSTRIAL USER MANUAL REPLACING BATTERY OF LINEAPRO 5 INDUSTRIAL The rechargeable battery of Linea can be replaced. Put the lever (1) to unlock position, then pull up the battery cover (2). Remove old battery with pulling up. - Page 14 1 DATECS LINEAPRO 5 INDUSTRIAL USER MANUAL Insert first the side with contacting pads of the battery then press it down. Direction of battery cover closing. Place the clips to correct position. When the battery cover is completely closed, slide the lever to lock position.
-
Page 15: Operation Modes
1 DATECS LINEAPRO 5 INDUSTRIAL USER MANUAL OPERATION MODES For start operating with LineaPro 5 Industrial is need to be attached Apple device and installed application for iOS. For downloading the latest SDK please contact with your distributor. For turn On LineaPro 5 Industrial press one of the scan buttons and unlock Apple device screen. -
Page 16: Contactless Cards Reading
1 DATECS LINEAPRO 5 INDUSTRIAL USER MANUAL Contactless cards reading The LineaPro 5 Industrial has a contactless card reader. Contactless card reader is located on the bottom side. Contactless card, tag or etc… must be placed over the RF ID logo (showed on the picture below). -
Page 17: Turn Off Device Function
LineaPro 5 Industrial can charge Apple device, when power source (USB adapter) is attached to USB connector or LineaPro 5 Industrial is placed on Datecs charging station. Charging Apple device can be at LOW and HIGH power and depends on the battery charging state and power source. -
Page 18: Care, Maintenance And Warranty
1 DATECS LINEAPRO 5 INDUSTRIAL USER MANUAL CARE, MAINTENANCE AND WARRANTY • Keep the LineaPro 5 Industrial side of the reach of small children. • Do not drop or knock LineaPro 5 Industrial • Don’t charge LineaPro 5 Industrial when inside of USB connector is spilled liquid.
