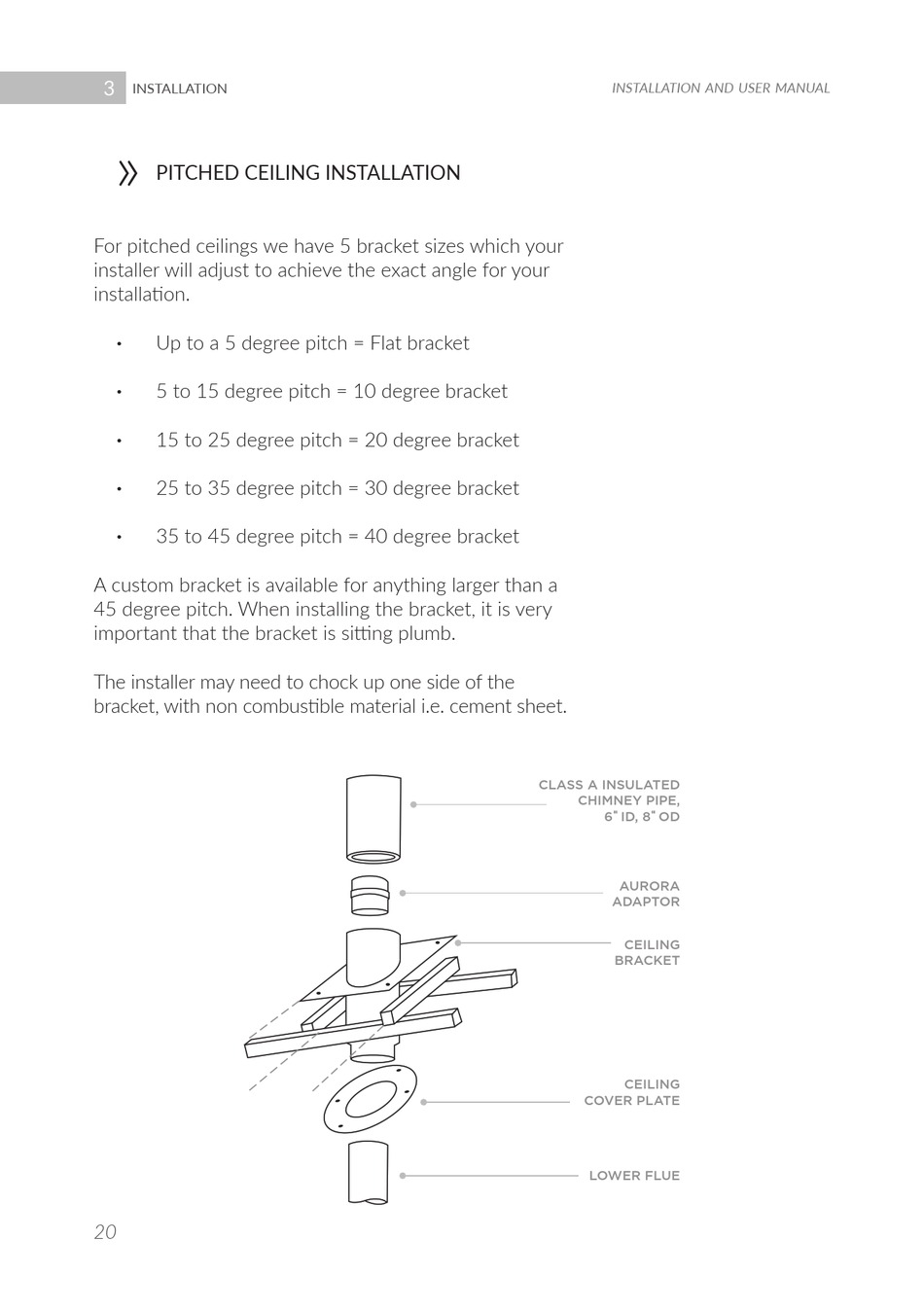

installation
»
PITCHED CEILING INSTALLATION
For pitched ceilings we have 5 bracket sizes which your
installer will adjust to achieve the exact angle for your
installation.
·
Up to a 5 degree pitch = Flat bracket
·
5 to 15 degree pitch = 10 degree bracket
·
15 to 25 degree pitch = 20 degree bracket
·
25 to 35 degree pitch = 30 degree bracket
·
35 to 45 degree pitch = 40 degree bracket
A custom bracket is available for anything larger than a
45 degree pitch. When installing the bracket, it is very
important that the bracket is sitting plumb.
The installer may need to chock up one side of the
bracket, with non combustible material i.e. cement sheet.
20
installation and user manual
CLASS A INSULATED
CHIMNEY PIPE,
6̎ ID, 8̎ OD
AURORA
ADAPTOR
CEILING
BRACKET
CEILING
COVER PLATE
LOWER FLUE
