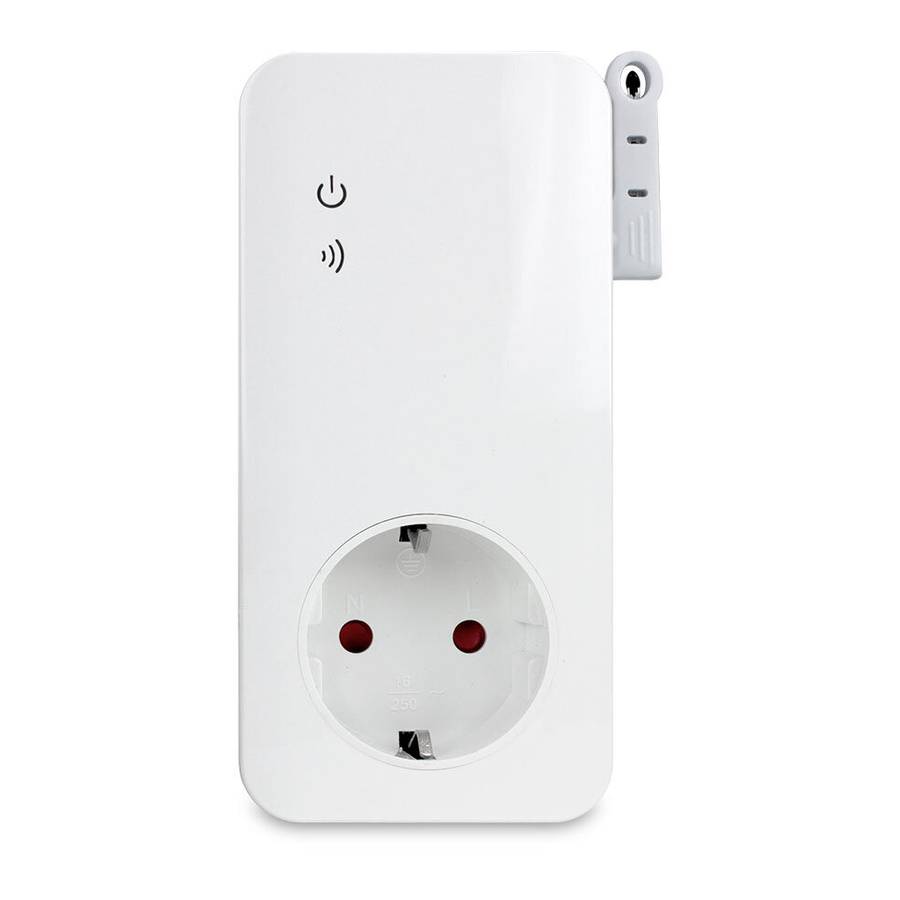

  • Page 1 SimPal-T420 SimPal-T20 4G LTE Power Socket...
  • Page 2 SimPal-T420/T20 4G POWER SOCKET USER MANUAL User Manual Manual version 3.0...
  • Page 3 The power supply output can be turned on or off remotely by the SMS command or voice calling. SimPal-T20 slave socket need to work with T420 Master socket, It can control one T420 and four T20 with one SIM card.

  • Page 4: Table Of Contents

    SimPal-T420/T20 4G POWER SOCKET USER MANUAL For your safety Exception clause 1.1 Package contents 1.2Sockets instructions 1.3 Light indicator 2.1 User authorization level 2.2 About the SMS Command 3.1 Start to use...
  • Page 5 SimPal-T420/T20 4G POWER SOCKET USER MANUAL 3.2 Download “SimPal-T40” APP 3.3 Register Master-number. 3.4 Pairing slave socket 3.5 Turn on/off power 3.6 Delay control 3.7 Schedule control 3.8 Temperature control 3.9 Temperature alarm 3.10 Wireless sensor alarm 3.11 SMS when on/off button pressed...
  • Page 6 SimPal-T420/T20 4G POWER SOCKET USER MANUAL 3.12 Power failure alarm 3.13 Calling control 3.14 SMS notification to User 3.15 Check status 3.16 Weak GSM signal alarm 4. Reset factory setting 5. Main Technical Parameters Appendix: SMS commands list...
  • Page 7 1. Purchase a GSM SIM card (mobile phone card) from GSM network service provider and install it in the socket. This SIM card number is referred as SimPal-T420 number on this brochure. 2. The user needs to activate the Caller ID Presentation function of SIM card, and deactivate PIN code of the SIM.

  • Page 8: For Your Safety

    SimPal-T420/T20 4G POWER SOCKET USER MANUAL For your safety ▪ This socket was designed for home or office use. Do not use it on the electrical appliance which is for industry or business operation, for example, iatrical appliances, large heaters and refrigerates.
  • Page 9 SimPal-T420/T20 4G POWER SOCKET USER MANUAL interference. ▪ Switch off this socket and mobile phone when entering areas marked "Explosive", "Might explode", "Closed wireless transceiver sockets" etc. ▪ Do not cast this socket in a fire, as this may cause explosion.

  • Page 10: Exception Clause

    2. For the latest socket information, please visit: http://www.simpal.cn. We don’t guarantee for the document veracity, reliability or any content except regulate in proper laws. Including no guarantee for socket suitable market or suitable area promise.

  • Page 11: Package Contents

    SimPal-T420/T20 4G POWER SOCKET USER MANUAL 1.1 Package contents...

  • Page 12: Sockets Instructions

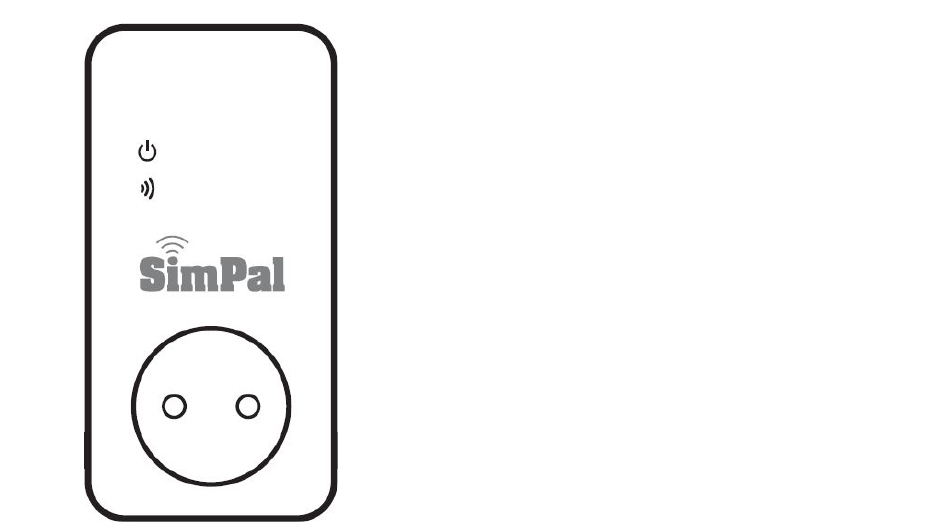

    SimPal-T420/T20 4G POWER SOCKET USER MANUAL 1.2 Sockets instructions Note: Slave socket T20 without SIM card slot...
  • Page 13 SimPal-T420/T20 4G POWER SOCKET USER MANUAL Figure 2: Temperature sensor Instruction...

  • Page 14: Light Indicator

    SimPal-T420/T20 4G POWER SOCKET USER MANUAL 1.3 Light indicator Model Indicator Action Status Turning off Socket power output OFF Power LED Constant light Socket power output ON Searching network (SimPal-T420) Flash slowly Lost connection with T420 (SimPal-T20) Slowly breath Working in standby mode.

  • Page 15: User Authorization Level

    There are two mobile phone user controlling levels: Master-​ u ser (“Master”)​ : Only one​ Master ​ h as authorization to use all features of SimPal-T420. In order to enable all the functions on the socket, the ​ M aster must store his/ her mobile number in the socket’s memory.

  • Page 16: Start To Use

    ● No allow any space within the commands. 3.1 Start to use ▪ Installed SIM card to SimPal-T420 GSM power socket; you will see a SIM card slot at the side, make the SIM card metal contact upside and hardly push the SIM card until SIM card fixed.
  • Page 17 2.Check GSM network signal of the using place: ● GSM network’s signal strength may affect the socket feature. Therefore, before using, the user should ensure that SimPal-T420 is used in an area with a strong GSM network signal (CSQ higher than 12).

  • Page 18: Download "Simpal-T40" App

    SimPal-T420. First time register device on APP, input device name and SIM card number which installed on SimPal-T420 device. The APP will create SMS content, send the SMS to device, it will operate according APP function description. Even without APP, user can send SMS manually according following instruction.
  • Page 19 SimPal-T420/T20 4G POWER SOCKET USER MANUAL Change master-number:​ ​ ​ # 14#​ N ewMasterNumber ​ ​ ( 2) ● NewMasterNumber ​ should be the new Master mobile phone number. 3.3.2 Register Family-number Up to 4 Family-number can be stored on GSM socket.

  • Page 20: Pairing Slave Socket

    SimPal-T420/T20 4G POWER SOCKET USER MANUAL 3.4 Pairing slave socket Master sends SMS to paring slave socket SimPal-T20 with Master SimPal-T420 GSM socket, before paring, need to make sure T20 reset factory setting, if the T20 already paired with other T420 before, need to keep press T20 M button for 10 seconds to reset factory setting.

  • Page 21: Turn On/Off Power

    SimPal-T420/T20 4G POWER SOCKET USER MANUAL Remove all slave socket:​ ​ # 71#​ ​ ( 9) 3.5 Turn on/off power Method �� Method 1​ ： To press ​ M button one second​ (See 5 on Figure1). Method 2​ ： Master​ sends following SMS message to socket in order to set: Master socket power - ON: ​...
  • Page 22 SimPal-T420/T20 4G POWER SOCKET USER MANUAL sending SMS or M button, activate schedule control or temperature control will also deactivate the delay control function. ● When the “delayed switch on the socket” command is received and if the socket output is switched on, the socket output will be switched off immediately and be switch on again as the setting delayed time is reaching.

  • Page 23: Schedule Control

    SimPal-T420/T20 4G POWER SOCKET USER MANUAL 3.7 Schedule control 3.7.1 Activate schedule control Description ● The socket power can be set to automatically turn on according schedule. ● Schedule control function will auto deactivate if user manually change the socket status by SMS or M button, Delay control or Temperature control will also deactivate schedule control function.
  • Page 24 SimPal-T420/T20 4G POWER SOCKET USER MANUAL 3.7.2 Set schedule parameters Description After successful setting of time duration to switch on the socket output, the schedule parameter will be saved on the socket until socket reset to factory settings. �� Method Master​...

  • Page 25: Temperature Control

    ● The socket output will switch on at the ​ S tartTime ​ ​ a nd cut off at the ​ E ndTime ​ . ● For example: ​ # 20#0#1#0000#2130# , 0 means the SimPal-T420, 0000 means time 00:00(hh:mm)AM, 2130 means time 21:30. It will turn on power at 00:00, and turn off at 21:30.
  • Page 26 SimPal-T420/T20 4G POWER SOCKET USER MANUAL status by SMS or M button, Delay control or Schedule control will also deactivate temperature control function. ● There are warming mode and cooling mode for temperature control function. In warming mode, socket will auto turn on when temperature lower than smaller temperature value, and turn off when higher than bigger temperature value;...

  • Page 27: Temperature Alarm

    Description A range of temperature can be pre-set onto each socket. When surroundings temperature is detected out of the pre-set temperature range, the SimPal-T420 will auto-send the SMS alarm message to your mobile phone. This feature depends on the temperature sensor.

  • Page 28: Wireless Sensor Alarm

    Slave socket temperature alarm - OFF:​ ​ # 68#name#0#​ ​ ( 39) 3.10 Wireless sensor alarm Description SimPal-T420 can be working with 6pcs wireless sensor and 2pcs remote control, it can use for alarm functions. Only following sensor can be working with T420: ● WRC-047-F remote control ●...
  • Page 29 SimPal-T420/T20 4G POWER SOCKET USER MANUAL There are two types of alarm sensor, one is alarm type, only alarm when T420 alarm function on, the other one is emergency type, it will always alarm even T420 alarm function off. For smoke detector and water leak detector, suggest to pair as emergency type sensor.

  • Page 30: Sms When On/Off Button Pressed

    The time range is 0-60. Such as #50#30# to set beep 30 seconds. 3.11 SMS when on/off button pressed Description SimPal-T420 will default sending SMS notify Master and Family when press M button to turn on/off power. The Master can enable/disable this SMS notification. Method ��...

  • Page 31: Power Failure Alarm

    SMS when power lost or restore - OFF:​ ​ # 05#0#​ ​ ( 57) 3.13 Calling control SimPal-T420 default send SMS reply when Master or Family calling to turn on/off power, it can change the setting to calling control without SMS reply. ��...

  • Page 32: Sms Notification To User

    SimPal-T420/T20 4G POWER SOCKET USER MANUAL 3.14 SMS notification to User SimPal-T420 will sending SMS alert when mains power lost/restore, temperature alert or other information. Default sending SMS to both Master and family. Master can change the setting only send SMS to Master number.

  • Page 33: Weak Gsm Signal Alarm

    SimPal-T420/T20 4G POWER SOCKET USER MANUAL “Slave4”: ON 25C D Socket under “delay control” it will show character “D” after the temperature value, when socket under “Temperature control”, it will show character “T” after the temperature value, when socket under “Schedule control”, it will show “C” after the temperature value.

  • Page 34: Reset Factory Setting

    ● If the setting status is wrong or the malfunctions can’t be corrected, users can restore the socket to its original status to make it work normally. ● SimPal-T20 need to reset factory setting before pairing with new SimPal-T420 again. Master socket reset factory setting: Method 1: ​...

  • Page 35: Main Technical Parameters

    SimPal-T420/T20 4G POWER SOCKET USER MANUAL SimPal-20 reset factory setting: Method : ​ K eep press the ​ M ​ button of the device for 10 seconds. 5. Main Technical Parameters 110~230V/50HZ, Input power plug CEE 7/7 hybrid Schuko/French/American/Australia plug...

  • Page 36: Appendix: Sms Commands List

    SimPal-T420/T20 4G POWER SOCKET USER MANUAL Appendix: SMS commands list Category Function Command (1) ​ # 00# Register Master-number (2) ​ # 14#​ N ewMasterNumber ​ # Change Master-number (3) ​ # 06#​ F amily-Number ​ # Add Family-number Define the...
  • Page 37 SimPal-T420/T20 4G POWER SOCKET USER MANUAL All socket power - ON (12) ​ # 01# T420 socket power - OFF (13) ​ # 02#0# (14) ​ # 62#name# T20 socket power - OFF All socket power - OFF (15) ​ # 02# Delay switching ON SimPal-T420 after a (16) ​...
  • Page 38 SimPal-T420/T20 4G POWER SOCKET USER MANUAL (25)​ ​ # ​ 6 4#name#0# T20 schedule control – OFF (Default) (26) ​ # 20#0#​ W orkDay ​ # Set T420 schedule control parameters StartTime ​ # ​ E ndTime ​ # (27) #65#name#​...
  • Page 39 SimPal-T420/T20 4G POWER SOCKET USER MANUAL (34) ​ # 21#0#1# T420 temperature alarm - ON (35) ​ # 68#name#1# T20 temperature alarm - ON Set SimPal-T420 temp range (36) ​ # 22#0#​ M inTemp ​ # ​ M axTemp ​ #...
  • Page 40 SimPal-T420/T20 4G POWER SOCKET USER MANUAL (46) ​ # 45# Remove all remote control (47) ​ # 40#1# Alarm function – ON Alarm function – OFF (Default) (48) ​ # 40#0# Schedule alarm - ON (49) ​ # 47#1# Schedule alarm - OFF (Default) (50) ​...
  • Page 41 SimPal-T420/T20 4G POWER SOCKET USER MANUAL (58) ​ # 49#1# SMS when calling control – ON (Default) (59) ​ # 49#0# SMS when calling control – OFF Calling control Calling control function – ON (Default) (60) ​ # 09#1# Calling control function – OFF (61) ​...
  • Page 42 SimPal-T420/T20 4G POWER SOCKET USER MANUAL (71) ​ # 66#name# Check T20 “Temp control” settings (72) ​ # 35#0# Check T420 “Temp alarm” settings Check T20 “Temp alarm” settings (73) ​ # 68#name# Check GSM signal (74) ​ # 27# Weak GSM signal alarm –...
