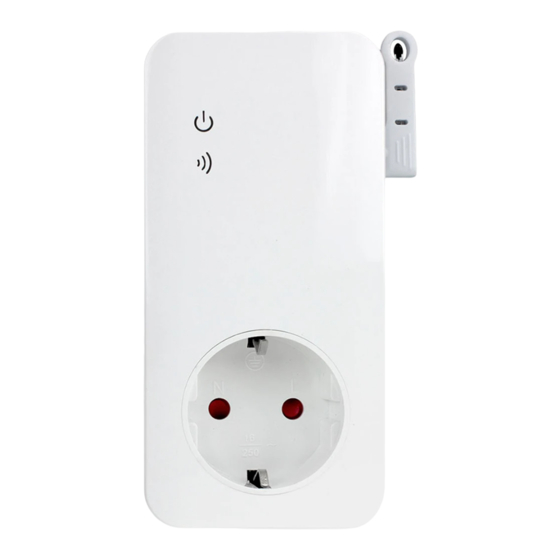

  • Page 1 SimPal-T40-V2 SimPal-T20-V2 GSM Power Socket User Manual Manual version 3.2...
  • Page 2 The power supply output can be turned on or off remotely by the SMS command or voice calling. It can works as router for slave socket SimPal-T20 and wireless accessories. Each SimPal-T40 can connect 4pcs SimPal-T20 slave socket, 6pcs wireless sensor.

  • Page 3: Table Of Contents

    SimPal-T40-V2/T20-V2 USER MANUAL For your safety ..................7 Exception clause .................. 9 1.1 Package contents................10 Sockets instructions ..............11 1.3 Light indicator ................13 2.1 User authorization level ............... 14 www.simpal.fi support@simpal.fi...
  • Page 4 SimPal-T40-V2/T20-V2 USER MANUAL 2.2 About the SMS Command ............. 15 3.1 Start to use ................... 15 3.2 Download “SimPal-T40” APP ............ 17 3.3 Register Master-number............... 18 3.4 Pairing slave socket ..............20 3.5 Turn on/off power ................. 22 3.6 Delay control ................22 www.simpal.fi...
  • Page 5 SimPal-T40-V2/T20-V2 USER MANUAL 3.7 Schedule control ................24 3.8 Temperature control ..............27 3.9 Temperature alarm ............... 29 3.10 Wireless sensor alarm ..............31 3.11 SMS when on/off button pressed ..........33 3.12 Power failure alarm ..............34 3.13 Calling control ................35 www.simpal.fi...
  • Page 6 SimPal-T40-V2/T20-V2 USER MANUAL 3.14 SMS notification to User ............35 3.15 Check status ................36 3.16 Weak GSM signal alarm ............. 38 4. Reset factory setting ............... 39 5. Main Technical Parameters ............40 Appendix: SMS commands list ............42 www.simpal.fi...
  • Page 7 1. Purchase a GSM SIM card (mobile phone card) from GSM network service provider and install it in the socket. This SIM card number is referred as SimPal-T40 number on this brochure. 2. The user needs to activate the Caller ID Presentation function of SIM card, and deactivate PIN code of the SIM.

  • Page 8: For Your Safety

    SimPal-T40-V2/T20-V2 USER MANUAL For your safety ▪ This socket was designed for home or office use. Do not use it on the electrical appliance which is for industry or business operation, for example, iatrical appliances, large heaters and refrigerates. ▪ Before using this socket, make sure that the mobile phones can be used well in the area, otherwise, do not put this socket into operation.
  • Page 9 SimPal-T40-V2/T20-V2 USER MANUAL lassen). ▪ Do not open the case unless maintenance needed by professionals. ▪ Do not keep shaking or fall down this socket, otherwise it can be damaged. ▪ This socket is a wireless signal transmission socket. Keep it away from electronic equipment likely to interfere with the wireless signals, in order to avoid signals interference.

  • Page 10: Exception Clause

    2. For the latest socket information, please visit: http://www.simpal.cn. We don’t guarantee for the document veracity, reliability or any content except regulate in proper laws. Including no guarantee for socket suitable market or suitable area promise.

  • Page 11: Package Contents

    SimPal-T40-V2/T20-V2 USER MANUAL 1.1 Package contents www.simpal.fi support@simpal.fi...

  • Page 12: Sockets Instructions

    SimPal-T40-V2/T20-V2 USER MANUAL 1.2 Sockets instructions Note: Slave socket T20 without SIM card slot www.simpal.fi support@simpal.fi...
  • Page 13 SimPal-T40-V2/T20-V2 USER MANUAL Figure 2: Temperature sensor Instruction www.simpal.fi support@simpal.fi...

  • Page 14: Light Indicator

    Socket power output OFF Power LED Constant light Socket power output ON Searching network (SimPal-T40) Flash slowly Lost connection with Main unit (SimPal-T20) Slowly breath Working in standby mode. SimPal-T40 Two fast and Pairing slave socket or pairing wireless and SimPal-20 one slow Flash sensor status.

  • Page 15: User Authorization Level

    There are two mobile phone user controlling levels: Master-user (“Master”): Only one Master has authorization to use all features of SimPal-T40. In order to enable all the functions on the socket, the Master must store his/ her mobile number in the socket’s memory. Only one Master’s mobile number is allowed for a socket.

  • Page 16: About The Sms Command

    • No allow any space within the commands. 3.1 Start to use ▪ Installed SIM card to SimPal-T40 GSM power socket; you will see a SIM card slot at the side, make the SIM card metal contact upside and hardly push the SIM card until SIM card fixed.
  • Page 17 The socket default power output is OFF. 2. Insert the plug of electronic appliance in the SimPal-T40 electrical outlet. 3. M button (See 5 on Figure1) can be pressed for about one second to switch on or off the socket output.

  • Page 18: Download "Simpal-T40" App

    This allows the user to check the GSM network connection of the socket. 3.2 Download “GSM Socket V3” APP We offer free APP to work with SimPal-T40, search “GSM Socket V3” on Google Play or Apple APP Store, download and install the APP, then it can use APP to control SimPal-T40.

  • Page 19: Register Master-Number

    SimPal-T40-V2/T20-V2 USER MANUAL SimPal-T40 device. The APP will create SMS content, send the SMS to device, it will operate according APP function description. Even without APP, user can send SMS manually according following instruction. 3.3 Register Master-number. Sending following SMS to socket SIM card number from your mobile phone (the phone number...
  • Page 20 SimPal-T40-V2/T20-V2 USER MANUAL 3.3.2 Register Family-number Up to 4 Family-number can be stored on GSM socket. Family-number have the authority to send SMS command to switch on or cut off the SimPal- T40 or SimPal-T20 power output.  Method Master sends following SMS message in order to:...

  • Page 21: Pairing Slave Socket

    #15# 3.4 Pairing slave socket Master sends SMS to paring slave socket SimPal-T20 with Master SimPal-T40 GSM socket, before paring, need to make sure T20 reset factory setting, if the T20 already paired with other T40 before, need to keep press T20 M button for 10 seconds to reset factory setting. Master...
  • Page 22 SimPal-T40-V2/T20-V2 USER MANUAL After receive SMS reply “Power on “name” socket now！”, plug the T20 socket to main power, T20 LED flash slowly for some seconds and go to slowly breath status after connected with T40 socket.  Note • “name” is the slave socket ID communicate with GSM socket, operate slave socket by sending SMS request included “name”...

  • Page 23: Turn On/Off Power

    SimPal-T40-V2/T20-V2 USER MANUAL 3.5 Turn on/off power  Method Method 1：To press M button one second (See 5 on Figure1). Method 2： Master sends following SMS message to socket in order to set: Master socket power - ON: #01#0# (10)
  • Page 24 SimPal-T40-V2/T20-V2 USER MANUAL ⚫ The socket output can be set to delay switch ON/OFF for a period time. ⚫ When the “delayed switch on the socket” command is received and if the socket output is switched on, the socket output will be switched off immediately and be switch on again as the setting delayed time is reaching.

  • Page 25: Schedule Control

    SimPal-T40-V2/T20-V2 USER MANUAL Set Slave socket delay control – OFF: #63#name#0# (21) 3.7 Schedule control 3.7.1 Activate schedule control  Description The socket power can be set to automatically turn on according schedule. ⚫ ⚫ It allows to temporary manual change power on/off by send SMS, press button, Delay control etc.
  • Page 26 SimPal-T40-V2/T20-V2 USER MANUAL Slave socket schedule control - OFF: #64#name#0# (25) Socket will auto switching on or off the output according to the schedule settings. 3.7.2 Set schedule parameters  Description After successful setting of time duration to switch on the socket output, the schedule parameter will be saved on the socket until socket reset to factory settings.
  • Page 27 SimPal-T40-V2/T20-V2 USER MANUAL ⚫ ID: the value is 1-3, it means allow to set three group schedules. ⚫ WorkDay: one digit, the values lie in the range of “0” to “9”. The following table contains the descriptions of each value: It can select different single day.

  • Page 28: Temperature Control

    ⚫ The socket output will switch on at the StartTime and cut off at the EndTime. ⚫ For example: #20#0#1#12345#0800#2130# , 0 means the SimPal-T40, 1 means first group schedule, 12345 means from Monday-Friday, 0000 means time 08:00(hh:mm)AM, 2130 means time 21:30. It will turn on power at 08:00, and turn off at 21:30 on Monday- Friday.
  • Page 29 SimPal-T40-V2/T20-V2 USER MANUAL when temperature higher than bigger temperature value and turn off when temperature lower than smaller value.  Method The Master sends following SMS message in order to set: Master socket temperature control - ON: #23#0#1# (28) Master socket temperature control - OFF: #23#0#0#...

  • Page 30: Temperature Alarm

    SimPal-T40-V2/T20-V2 USER MANUAL Set Slave socket temp control parameters: #67#name#mode#low-temp#high-temp# (33) Mode parameter can be 1 or 2, Warming mode is 1, cooling mode is 2; Temperature range should be within -10 to 50 degree. For example #24#0#1#15#25#, it means set SimPa-T40 temperature control parameter, work with warming mode, turn on power when temperature lower than 15 degree, turn off power when temperature higher than 25 degree.
  • Page 31 SimPal-T40-V2/T20-V2 USER MANUAL is detected out of the pre-set temperature range, the SimPal-T40 will auto-send the SMS alarm message to your mobile phone. This feature depends on the temperature sensor.  Method Master sends following SMS message in order to set:...

  • Page 32: Wireless Sensor Alarm

    SimPal-T40-V2/T20-V2 USER MANUAL 3.10 Wireless sensor alarm  Description SimPal-T40 can be working with 6pcs wireless sensor and 2pcs remote control, it can use for alarm functions. Only following sensor can be working with T40: WRC-048-F V2 remote control WDS-051-F V2 Wireless door sensor...
  • Page 33 SimPal-T40-V2/T20-V2 USER MANUAL Method Master sends following SMS message in order to: Pair alarm sensor: #30#1#Name# (40) Pair emergency sensor: #30#2#name# (41) Pair remote control: #30#3# (42) Check pair sensor list: #30# (43) Remove single sensor: #44#name# (44) Remove all wireless sensor: #44#...

  • Page 34: Sms When On/Off Button Pressed

    The time range is 0-60. Such as #50#30# to set beep 30 seconds. 3.11 SMS when on/off button pressed  Description SimPal-T40 will default sending SMS notify Master and Family when press M button to turn on/off power. The Master can enable/disable this SMS notification.  Method Master sends following SMS message in order to set: www.simpal.fi...

  • Page 35: Power Failure Alarm

    (55) 3.12 Power failure alarm  Description SimPal-T40 will default sending SMS notify when main power supply lost or restore. It only alert when SimPal-T40 power supply change, SimPal-T20 power supply change will not report. Master can enable/disable this SMS notification.

  • Page 36: Calling Control

    SimPal-T40-V2/T20-V2 USER MANUAL 3.13 Calling control SimPal-T40 default send SMS reply when Master or Family calling to turn on/off power, it can change the setting to calling control without SMS reply.  Method Master sends following SMS message in order to: SMS when calling control –...

  • Page 37: Check Status

    SimPal-T40-V2/T20-V2 USER MANUAL  Method Master sends following SMS message in order to: SMS to family number – ON (Default): #16#1# (62) SMS to family number – OFF: #16#0# (63) 3.15 Check status  Method Master or Family sends following SMS message in order to:...
  • Page 38 SimPal-T40-V2/T20-V2 USER MANUAL It will show characters to show this device status, the meanings of difference characters as following: “H” means home alarm function on, it will send SMS when paired wireless sensor trigger. “D” means the socket under Delay Control.

  • Page 39: Weak Gsm Signal Alarm

    SimPal-T40-V2/T20-V2 USER MANUAL Check Slave socket “Temperature control” parameters: #66#name# (71) Check Master socket “Temperature alarm” parameters: #35# (72) Check Slave socket “Temperature alarm” parameters: #68#name# (73) 3.16 Weak GSM signal alarm The socket can send a SMS notification when the GSM signal strength is too weak. The Master user can enable/disable this SMS notification.

  • Page 40: Reset Factory Setting

    ⚫ If the setting status is wrong or the malfunctions can’t be corrected, users can restore the socket to its original status to make it work normally. ⚫ SimPal-T20 need to reset factory setting before pairing with new SimPal-T40 again. Master socket reset factory setting: Method 1: Keep press the side M button of the device for 10 seconds.

  • Page 41: Main Technical Parameters

    SimPal-T40-V2/T20-V2 USER MANUAL SimPal-20 reset factory setting: Method : Keep press the M button of the device for 10 seconds. 5. Main Technical Parameters 110~230V/50HZ, Input power plug CEE 7/7 hybrid Schuko/French/American/Australia plug 110~ 230V/50HZ, 230V/30A(30s), Output power outlet 16A long-duration, CEE7/4 German “Schuko”/ French/ American/Australia...
  • Page 42 SimPal-T40-V2/T20-V2 USER MANUAL Slave socket distance Up to 30 meters Temperature -10℃~50℃ sensor range GSM working band 850/900/1800/1900Mhz (Only T40 support GSM) www.simpal.fi support@simpal.fi...

  • Page 43: Appendix: Sms Commands List

    SimPal-T40-V2/T20-V2 USER MANUAL Appendix: SMS commands list Category Function Command Register Master-number (1) #00# Change Master-number (2) #14#NewMasterNumber# Add Family-number (3) #06#Family-Number# Define the users Check Family-number (4) #06# Delete Family-number (5) #15#Family-Number# Delete all Family-number (6) #15# Pairing slave socket...
  • Page 44 T40 socket power - OFF (13) #02#0# T20 socket power - OFF (14) #62#name# All socket power - OFF (15) #02# Delay switching ON SimPal-T40 after a (16) #12#0#Minutes#1# certain minutes Delay switching ON SimPal-T20 after a (17) #63#name#Minutes#1# certain minutes...
  • Page 45 SimPal-T40-V2/T20-V2 USER MANUAL Category Function Command control T40 schedule control – OFF (Default) (23) #19#0#0# T20 schedule control - ON (24) #64#name#1# T20 schedule control – OFF (Default) (25) #64#name#0# (26) #20#0#ID#WorkDay# Set T40 schedule control parameters StartTime#EndTime# (27) Set T20 schedule control parameters...
  • Page 46 SimPal-T40-V2/T20-V2 USER MANUAL Category Function Command (32) #24#0#mode#low- Set T40 temp control parameters temp#high-temp# (33) #67#name#mode#low- Set T20 temp control parameters temp#high-temp# T40 temperature alarm - ON (34) #21#0#1# T20 temperature alarm - ON (35) #68#name#1# Set SimPal-T40 temp range...
  • Page 47 SimPal-T40-V2/T20-V2 USER MANUAL Category Function Command sensor alarm Pair emergency sensor (41) #30#2#name# Pair remote control (42) #30#3# Check sensor list (43) #30# Remove single sensor (44) #44#name# Remove all sensors (45) #44# Remove all remote control (46) #45# Alarm function – ON (47) #40#1# Alarm function –...
  • Page 48 SimPal-T40-V2/T20-V2 USER MANUAL Category Function Command Set beeper duration (53) #50#time# SMS when on/off button pressed - ON (54) #03#1# (Default) SMS when on/off button pressed - OFF (55) #03#0# notification SMS when power lost or restore – ON (56) #05#1# (Default) SMS when power lost or restore –...
  • Page 49 SimPal-T40-V2/T20-V2 USER MANUAL Category Function Command Check T40 socket status (64) #07# Check T20 socket status (65) #70# Check T40 “Delayed Control” settings (66) #34# Check T20 “Delayed Control” settings (67) #63#name# Check T40 “Schedule control” settings (68) #33# Check status Check T20 “Schedule control”...
  • Page 50 SimPal-T40-V2/T20-V2 USER MANUAL Category Function Command Check GSM signal (74) #27# Weak GSM signal alarm – ON (75) #27#1# Weak GSM signal alarm – OFF (Default) (76) #27#0# Reset socket Reset T40 to factory setting (77) #08#1234# www.simpal.fi support@simpal.fi...
