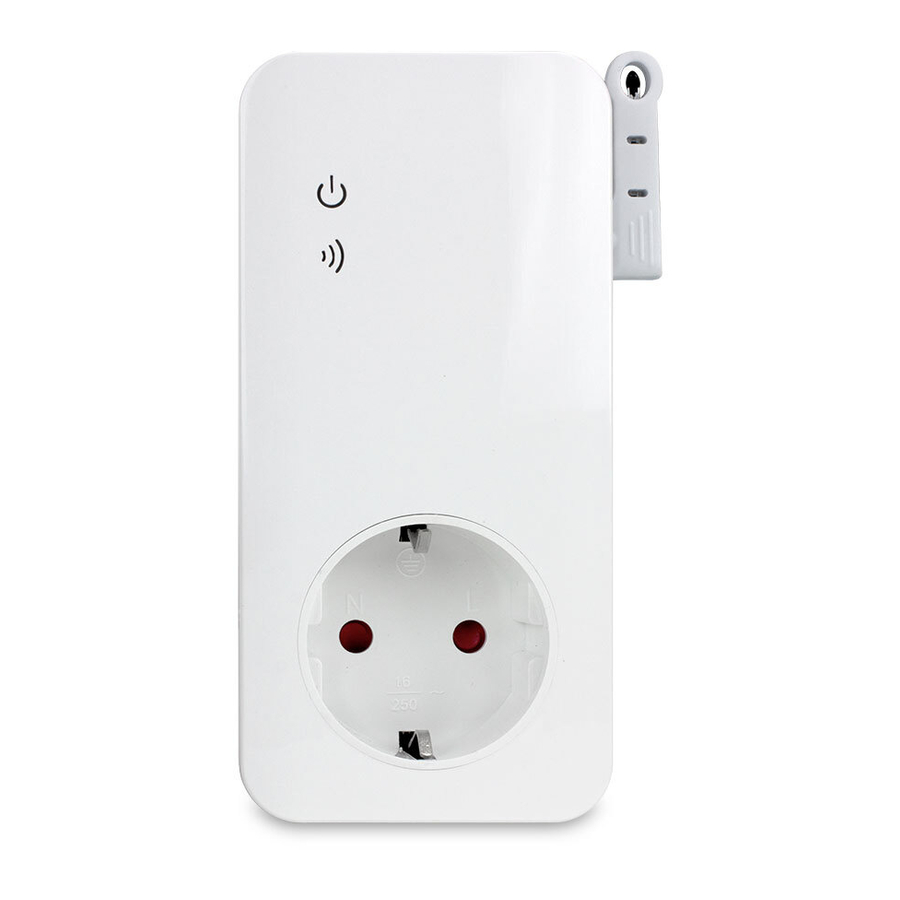

SimPal-T420
4G Power Socket
SimPal-T20
Wireless
Power
Socket
User Manual
Version 3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SimPal-T420 and is the answer not in the manual?

Questions and answers

Related Manuals for SimPal SimPal-T420

Summary of Contents for SimPal SimPal-T420

  • Page 1 SimPal-T420 4G Power Socket SimPal-T20 Wireless Power Socket User Manual Version 3.0...
  • Page 2 SimPal-T420/T20 Power Socket Thank you for purchasing the SimPal-T420/T20. SimPal-T420 4G power socket is a remote-controlled socket consisting of a 4G LTE module. The power supply output can be turned on or off remotely by SMS command or voice calling.

  • Page 3: Table Of Contents

    SimPal-T420/T20 USER MANUAL For your safety ..................7 Exception clause ................. 11 1.1 Package contents................12 1.2 Sockets instructions ...............13 1.3 Light indicator ................15 2.1 User authorization level ..............16...
  • Page 4 SimPal-T420/T20 USER MANUAL 2.2 About the SMS Command ..............17 3.1 Start to use ..................17 3.2 Download “LTE Socket” APP ............20 3.3 Register Master-number..............20 3.4 Pairing slave socket ..............22 3.5 Turn on/off power ................24 3.6 Delay control .................25...
  • Page 5 SimPal-T420/T20 USER MANUAL 3.7 Schedule control ................27 3.8 Temperature control ..............30 3.9 Temperature alarm ................33 3.10 Connect wireless sensor ..............34 3.11 SMS when on/off button pressed ..........37 3.12 Power failure alarm ..............37 3.13 Calling control ................38...
  • Page 6 SimPal-T420/T20 USER MANUAL 3.14 SMS notification to User .............39 3.15 Check status ................39 3.16 Weak LTE signal alarm ...............41 4. Reset factory setting ................42 5. Main Technical Parameters ............43 Appendix: SMS commands list ............45...
  • Page 7 1. Purchase a LTE SIM card (mobile phone card) from LTE network service provider and install it in the socket. This SIM card number is referred as SimPal-T420 number on this brochure. 2. The user needs to activate the Caller ID Presentation function of SIM card, and deactivate PIN code of the SIM.

  • Page 8: For Your Safety

    SimPal-T420/T20 USER MANUAL For your safety  This socket was designed for home or office use. Do not use it on the electrical appliance which is for industry or business operation, for example, Industrial appliances, large heaters and refrigerates.  Before using this socket, make sure that the mobile phones can be used well in the area, otherwise, do not put this socket into operation.
  • Page 9 SimPal-T420/T20 USER MANUAL  Do not plug this socket in a row, only allow connect other electricity device on the socket. (nicht hintereinander stecken, nur andere Stromgerä te an der Steckdose anschließen lassen).  Do not open the case unless maintenance needed by professionals.
  • Page 10 SimPal-T420/T20 USER MANUAL FCC Radiation Exposure Statement:  This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC Warning This device complies with Part 15 of the FCC Rules.
  • Page 11 SimPal-T420/T20 USER MANUAL used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television...

  • Page 12: Exception Clause

    2. For the latest socket information, please visit: http://www.simpal.cn. We don’t guarantee for the document veracity, reliability or any content except regulate in proper laws. Including no guarantee for socket suitable market or suitable area promise.

  • Page 13: Package Contents

    SimPal-T420/T20 USER MANUAL 1.1 Package contents...

  • Page 14: Sockets Instructions

    SimPal-T420/T20 USER MANUAL 1.2 Sockets instructions Note: Slave socket T20 without SIM card slot...
  • Page 15 SimPal-T420/T20 USER MANUAL Figure 2: Temperature sensor Instruction...

  • Page 16: Light Indicator

    Socket power output OFF Power Indicator Turn on Socket power output ON Searching network (SimPal-T420) Flash slowly Lost connection with T420 (SimPal-T20) Slowly breath Working in standby mode. SimPal-T420 Two fast and Pairing slave socket or pairing wireless and SimPal-20 one slow Flash sensor status.

  • Page 17: User Authorization Level

    There are two mobile phone user controlling levels: Master-user (“Master”): Only one Master has authorization to use all features of SimPal-T420. Master number has the authorization to use all functions of this socket. Only one Master’s mobile number is allowed for a socket.

  • Page 18: About The Sms Command

    3.1 Start to use  Installed SIM card to SimPal-T420 4G power socket; you will see a SIM card slot at the side, make the SIM card metal contact upside and hardly push the SIM card until SIM card fixed.
  • Page 19 15 seconds, then long beep ring and turn to slowly breathe status, breathe indicator means the socket already register LTE network, its ready to working. The socket default power output is OFF. 2. Insert the plug of electronic appliance in the SimPal-T420 electrical outlet.
  • Page 20 2. Check LTE network signal of the using place:  LTE network’s signal strength may affect the socket feature. Therefore, before using, the user should ensure that SimPal-T420 is used in an area with a strong LTE network signal (CSQ higher than 12).

  • Page 21: Download "Lte Socket" App

    SimPal-T420/T20 USER MANUAL 3.2 Download “LTE Socket” APP We offer free APP to work with SimPal-T420, search “LTE Socket” on Google Play or Apple APP Store, download and install the APP, then it can use APP to control SimPal-T420. First time register device on APP, input device name and SIM card number which installed on SimPal-T420 device.
  • Page 22 SimPal-T420/T20 USER MANUAL 3.3.1 Change Master number Master sends following SMS message in order to: Change master-number: #14#NewMasterNumber  NewMasterNumber should be the new Master mobile phone number. 3.3.2 Register Family-number Max 4 Family-number can be stored on each socket.

  • Page 23: Pairing Slave Socket

    #06# Delete Family  Method Master sends following SMS message in order to: Delete a Family: #15#Family-Number # Delete all Family numbers: #15# 3.4 Pairing slave socket Master sends SMS to paring slave socket SimPal-T20 with Master SimPal-T420 4G socket,...
  • Page 24 SimPal-T420/T20 USER MANUAL before paring, need to make sure T20 reset factory setting, if the T20 already paired with other T420 before, need to keep press T20 M button for 10 seconds to reset factory setting. Master send following SMS message in order to: Pairing Slave socket: #60#name# After receive SMS reply “Power on “name”...

  • Page 25: Turn On/Off Power

    SimPal-T420/T20 USER MANUAL Remove slave socket: #71#name# Remove all slave socket: #71# 3.5 Turn on/off power  Method Method 1：To press M button one second (See 5 on Figure1). Method 2： Master sends following SMS message to socket in order to set:...

  • Page 26: Delay Control

    SimPal-T420/T20 USER MANUAL Slave socket power - OFF: #62#name# (14) Master socket and all Slave socket power – OFF: #02# (15) 3.6 Delay control  Description  The socket output can be set to delay switch ON/OFF for a period time.
  • Page 27 SimPal-T420/T20 USER MANUAL #12#0#Minutes#1# (16) Slave socket turn OFF now and turn ON after certain minutes: #63#name#Minutes#1# (17) Master socket turn ON now and turn OFF after certain minutes: #12#0#Minutes#0# (18) Slave socket turn ON now and turn OFF after certain minutes: #63#name#Minutes#0# (19) ...

  • Page 28: Schedule Control

    SimPal-T420/T20 USER MANUAL 3.7 Schedule control 3.7.1 Activate schedule control  Description  The socket power can be set to automatically turn on according schedule.  Schedule control function will auto deactivate if user manually change the socket status by SMS or M button, Delay control will also deactivate schedule control function.
  • Page 29 SimPal-T420/T20 USER MANUAL Socket will auto switching on or off the output according to the schedule settings. 3.7.2 Set schedule parameters  Description After successful setting of time duration to switch on the socket output, the schedule parameter will be saved on the socket.
  • Page 30 SimPal-T420/T20 USER MANUAL  WorkDay: one digit, the values lie in the range of “0” to “8”. The following table contains the descriptions of each value: Value Corresponding day Everyday Monday Tuesday Wednesday Thursday Friday Saturday Sunday Monday to Friday Weekend ...

  • Page 31: Temperature Control

    SimPal-T420/T20 USER MANUAL  For example: #20#0#1#1200#0800# , 0 means the SimPal-T420, 1200 means time 12:00(hh:mm)AM, 0800 means time 08:00. It will turn on power at 12:00, and turn off at 08:00 of next day. 3.8 Temperature control 3.8.1 Activate temperature control ...
  • Page 32 SimPal-T420/T20 USER MANUAL mode, socket will auto turn on when temperature lower than smaller temperature value, and turn off when higher than bigger temperature value; Cooling mode, socket will auto turn on when temperature higher than bigger temperature value and turn off when temperature lower than smaller value.
  • Page 33 SimPal-T420/T20 USER MANUAL Set Master socket temp control parameters: #24#0#mode#low-temp#high-temp# (32) Set Slave socket temp control parameters: #67#name#mode#low-temp#high-temp# (33) Mode parameter can be 1 or 2, Warming mode is 1, cooling mode is 2; Temperature range should be within -10 to 50 degree.

  • Page 34: Temperature Alarm

     Description A range of temperature can be pre-set onto each socket. When surroundings temperature is detected out of the pre-set temperature range, the SimPal-T420 will auto-send the SMS alarm message to your mobile phone. This feature depends on the temperature sensor.

  • Page 35: Connect Wireless Sensor

    (39) 3.10 Connect wireless sensor  Description SimPal-T420 can be working with 6pcs wireless sensor and 2pcs remote control, it can use for alarm functions. Only following sensor can be working with T420: WRC-047-F remote control WSD-049-F Wireless smoke detector...
  • Page 36 SimPal-T420/T20 USER MANUAL There are two types of alarm sensor, one is alarm type, only alarm when T420 alarm function on, the other one is emergency type, it will always alarm even T420 alarm function off. For smoke detector and water leak detector, suggest to pair as emergency type sensor.
  • Page 37 SimPal-T420/T20 USER MANUAL Sensor name only can be English letter of digital number, can not set other characters as sensor name. Max allow 10 characters for sensor name. Set alarm function - ON: #40#1# (47) Set alarm function - OFF: #40#0#...

  • Page 38: Sms When On/Off Button Pressed

    SimPal-T420/T20 USER MANUAL 3.11 SMS when on/off button pressed  Description SimPal-T420 will default sending SMS notify Master and Family when press M button to turn on/off power. The Master can enable/disable this SMS notification.  Method Master sends following SMS message in order to set:...

  • Page 39: Calling Control

    SMS when power lost or restore - OFF: #05#0# (57) 3.13 Calling control SimPal-T420 default send SMS reply when Master or Family calling to turn on/off power, it can change the setting to calling control without SMS reply.  Method Master sends following SMS message in order to: SMS when calling control –...

  • Page 40: Sms Notification To User

    Calling control function – OFF: #09#0# (61) 3.14 SMS notification to User SimPal-T420 will sending SMS alert when mains power lost/restore, temperature alert or other information. Default sending SMS to both Master and family. Master can change the setting only send SMS to Master number.
  • Page 41 SimPal-T420/T20 USER MANUAL Master or Family sends following SMS message in order to: Check Master socket operating status: #07# (64) Check Slave socket operating status: #70# (65) After receiving the SMS commands, it will reply SMS message like this: Main unit: ON 23C “Slave1”: OFF 30C...

  • Page 42: Weak Lte Signal Alarm

    SimPal-T420/T20 USER MANUAL Check Master socket “Schedule control” parameters: #33# (68) Check Slave socket “Schedule control” parameters: #64#name# (69) Check Master socket “Temperature control” parameters: #32# (70) Check Slave socket “Temperature control” parameters: #66#name# (71) Check Master socket “Temperature alarm” parameters:...

  • Page 43: Reset Factory Setting

     If the setting status is wrong or the malfunctions can’t be corrected, users can restore the socket to its original status to make it work normally.  SimPal-T20 need to reset factory setting before pairing with new SimPal-T420 again.

  • Page 44: Main Technical Parameters

    SimPal-T420/T20 USER MANUAL Master socket reset factory setting: Method 1: Keep press the side M button of the device for 10 seconds. Method 2: Master sends following SMS message in order to: Reset Master socket: #08#1234# (77) SimPal-20 reset factory setting: Method : Keep press the M button of the device for 10 seconds.
  • Page 45 SimPal-T420/T20 USER MANUAL Relative humidity 10-90%，without condensation Communication LTE PHASE 2/2+ protocols (including data operation) Data interface LTE SIM 1.8V/3.0V socket Slave socket distance Up to 30 meters Temperature -10℃~50℃ sensor range LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26/B66/B71 4G LTE working band UMTS: B2/B4/B5...

  • Page 46: Appendix: Sms Commands List

    SimPal-T420/T20 USER MANUAL Appendix: SMS commands list Category Function Command Register Master-number (1) #00# Change Master-number (2) #14#NewMasterNumber# Add Family-number (3) #06#Family-Number# Define the users Check Family-number (4) #06# Delete Family-number (5) #15#Family-Number# Delete all Family-number (6) #15# Pairing slave socket...
  • Page 47 T420 socket power - OFF (13) #02#0# T20 socket power - OFF (14) #62#name# All socket power - OFF (15) #02# Delay switching ON SimPal-T420 after a (16) #12#0#Minutes#1# certain minutes Delay switching ON SimPal-T20 after a (17) #63#name#Minutes#1# certain minutes...
  • Page 48 SimPal-T420/T20 USER MANUAL Category Function Command control T420 schedule control – OFF (Default) (23) #19#0#0# T20 schedule control - ON (24) #64#name#1# T20 schedule control – OFF (Default) (25) #64#name#0# (26) #20#0#WorkDay# Set T420 schedule control parameters StartTime#EndTime# (27) Set T20 schedule control parameters...
  • Page 49 (33) Set T20 temp control parameters #67#name#mode#low-temp#hig h-temp# T420 temperature alarm - ON (34) #21#0#1# T20 temperature alarm - ON (35) #68#name#1# Set SimPal-T420 temp range (36) #22#0#MinTemp#MaxTemp# Temperature alarm Set SimPal-T20 temp range (37) #69#name#MinTemp#MaxTemp# T420 temperature alarm - OFF (Default) (38) #21#0#0# T20 temperature alarm –...
  • Page 50 SimPal-T420/T20 USER MANUAL Category Function Command sensor alarm Pair emergency sensor (41) #30#2#name# Pair remote control (42) #30#3# Check sensor list (43) #30# Remove single sensor (44) #44#name# Remove all sensors (45) #44# Remove all remote control (46) #45# Alarm function – ON (47) #40#1# Alarm function –...
  • Page 51 SimPal-T420/T20 USER MANUAL Category Function Command Set beeper duration (53) #50#time# SMS when on/off button pressed - ON (54) #03#1# (Default) SMS when on/off button pressed - OFF (55) #03#0# SMS when power lost or restore – ON notification (56) #05#1# (Default) SMS when power lost or restore –...
  • Page 52 SimPal-T420/T20 USER MANUAL Category Function Command Check T420 socket status (64) #07# Check T20 socket status (65) #70# Check T420 “Delayed Control” settings (66) #34# Check T20 “Delayed Control” settings (67) #63#name# Check T420 “Schedule control” settings (68) #33# Check status Check T20 “Schedule control”...
  • Page 53 SimPal-T420/T20 USER MANUAL Category Function Command Check LTE signal (74) #27# Weak LTE signal alarm – ON (75) #27#1# Weak LTE signal alarm – OFF (Default) (76) #27#0# Reset socket Reset T420 to factory setting (77) #08#1234#...
  • Page 54 SimPal-T420/T20 USER MANUAL FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC Warning This device complies with Part 15 of the FCC Rules.
  • Page 55 SimPal-T420/T20 USER MANUAL NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 56 SimPal-T420/T20 USER MANUAL -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for...
