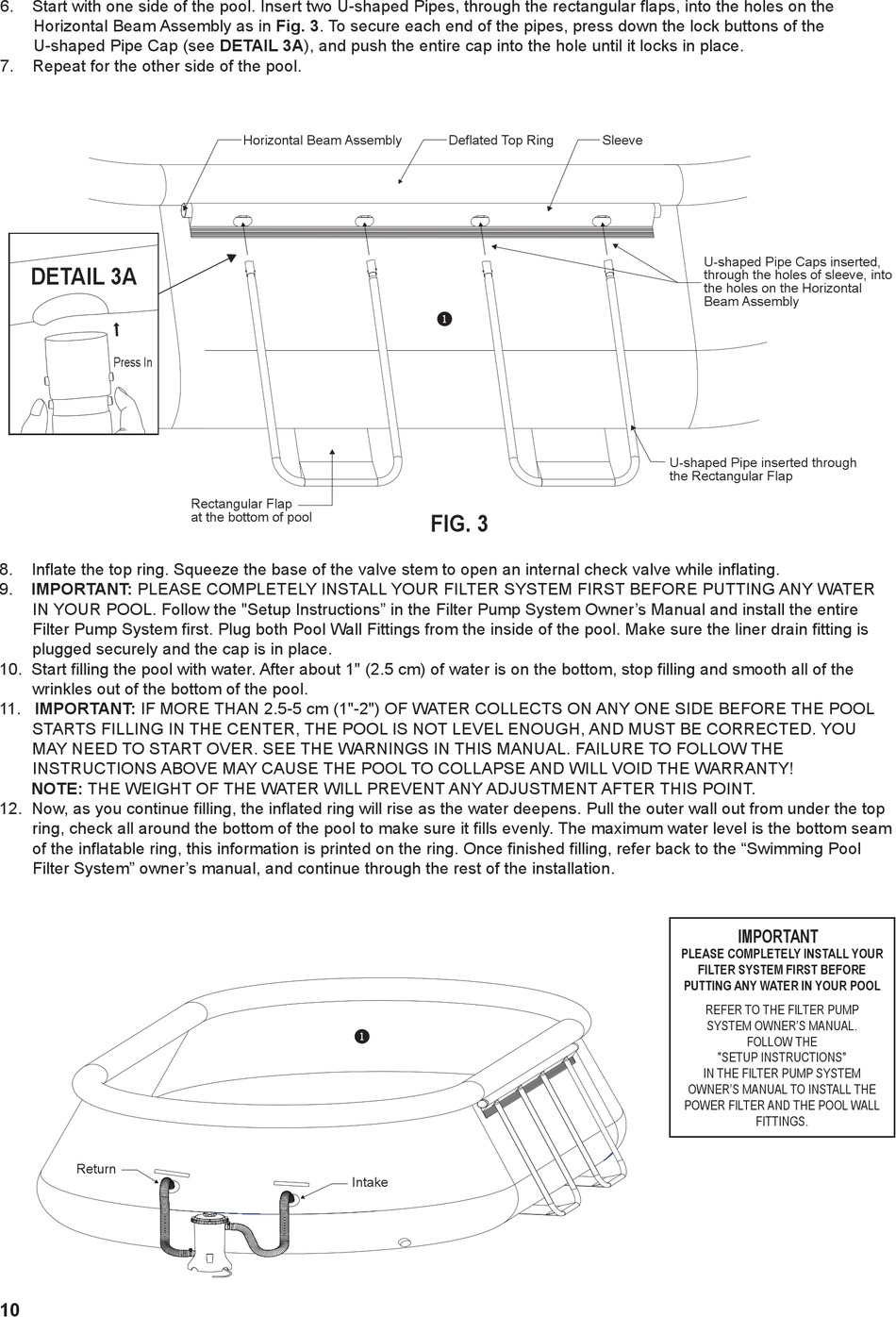

6. Start with one side of the pool. Insert two U-shaped Pipes, through the rectangular flaps, into the holes on the
Horizontal Beam Assembly as in Fig. 3. To secure each end of the pipes, press down the lock buttons of the
U-shaped Pipe Cap (see DETAIL 3A), and push the entire cap into the hole until it locks in place.
7. Repeat for the other side of the pool.
DETAIL 3A
Press In
8. Inflate the top ring. Squeeze the base of the valve stem to open an internal check valve while inflating.
9. IMPORTANT: PLEASE COMPLETELY INSTALL YOUR FILTER SYSTEM FIRST BEFORE PUTTING ANY WATER
IN YOUR POOL. Follow the "Setup Instructions" in the Filter Pump System Owner's Manual and install the entire
Filter Pump System first. Plug both Pool Wall Fittings from the inside of the pool. Make sure the liner drain fitting is
plugged securely and the cap is in place.
10. Start filling the pool with water. After about 1" (2.5 cm) of water is on the bottom, stop filling and smooth all of the
wrinkles out of the bottom of the pool.
11. IMPORTANT: IF MORE THAN 2.5-5 cm (1"-2") OF WATER COLLECTS ON ANY ONE SIDE BEFORE THE POOL
STARTS FILLING IN THE CENTER, THE POOL IS NOT LEVEL ENOUGH, AND MUST BE CORRECTED. YOU
MAY NEED TO START OVER. SEE THE WARNINGS IN THIS MANUAL. FAILURE TO FOLLOW THE
INSTRUCTIONS ABOVE MAY CAUSE THE POOL TO COLLAPSE AND WILL VOID THE WARRANTY!
NOTE: THE WEIGHT OF THE WATER WILL PREVENT ANY ADJUSTMENT AFTER THIS POINT.
12. Now, as you continue filling, the inflated ring will rise as the water deepens. Pull the outer wall out from under the top
ring, check all around the bottom of the pool to make sure it fills evenly. The maximum water level is the bottom seam
of the inflatable ring, this information is printed on the ring. Once finished filling, refer back to the "Swimming Pool
Filter System" owner's manual, and continue through the rest of the installation.
Return
10
Horizontal Beam Assembly
Rectangular Flap
at the bottom of pool
1
Intake
Deflated Top Ring Sleeve
1
FIG. 3
U-shaped Pipe Caps inserted,
through the holes of sleeve, into
the holes on the Horizontal
Beam Assembly
U-shaped Pipe inserted through
the Rectangular Flap
IMPORTANT
PLEASE COMPLETELY INSTALL YOUR
FILTER SYSTEM FIRST BEFORE
PUTTING ANY WATER IN YOUR POOL
REFER TO THE FILTER PUMP
SYSTEM OWNER'S MANUAL.
FOLLOW THE
"SETUP INSTRUCTIONS"
IN THE FILTER PUMP SYSTEM
OWNER'S MANUAL TO INSTALL THE
POWER FILTER AND THE POOL WALL
FITTINGS.
