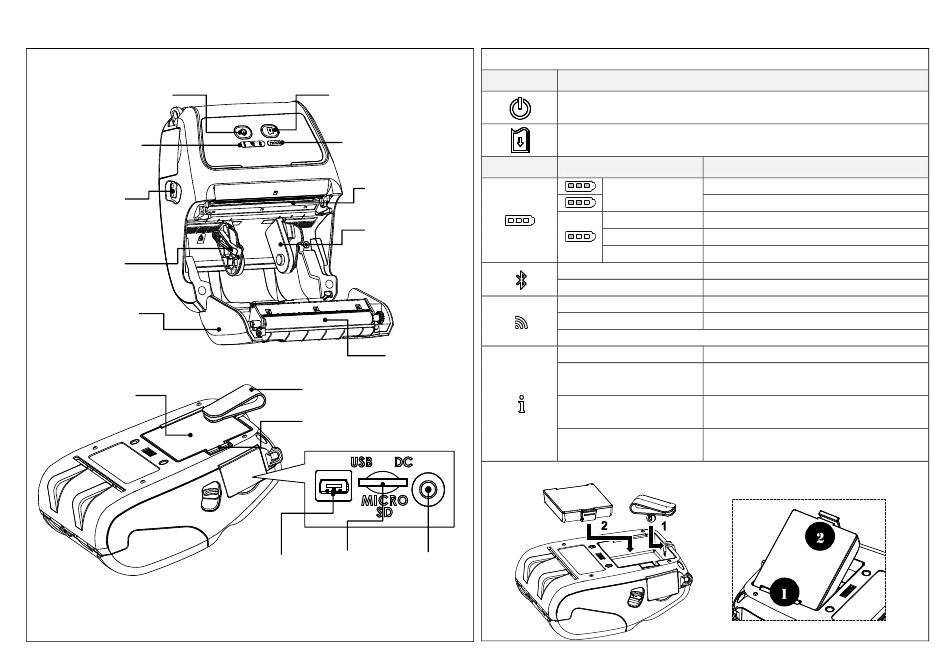

Quick Installation Guide
Printer Overview
Power on/off button
Printer status
LED indicator
Media cover
Power LED
release button
indicator
Media holder
lock switch
Media cover
Li-ion battery
Feed button
Battery status LED
indicator
Print head
Media holder
Print head
Label roll guard
Platen
Belt chip
Platen
Battery open clasp
MicroSD
USB interface
card socket
USB interface
Keys and LEDs Indication
Keys
− Press and hold for 2-3 seconds to turn on the printer.
− Press and hold for 2-3 seconds to turn off the printer.
− Ready status: Feed one label
− Printing status: Pause the print job
LEDs
Blue (solid)
Blue (blinking)
Blue (solid)
Blue (blinking)
Note: WiFi device is optional.
Off
Green (blinking)
Red (solid)
Red (blinking)
Install Belt Clip and Battery
Power jack
Page 1 of 2
Function
Status
Indication
Full charged
Green (solid)
2/3 charged level
Green (solid)
1/3 charged level
Green (blinking)
Low battery
Amber (solid)
Battery is charging
Bluetooth device is ready
Bluetooth device is communicating
WiFi device is ready
WiFi device is communicating
Printer is ready
− Printer is paused
−
Printer is downloading data
−
Media cover is open
−
Out of memory
−
No paper
−
Paper jam
