INSTRUCTION
Ed : 07/14
Rev : 00
Codice :
GRLDEVEFTW600

Advertisement

loading
Need help?

Need help?

Do you have a question about the WBK 600 FLEXI FIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Everfit WBK 600 FLEXI FIT

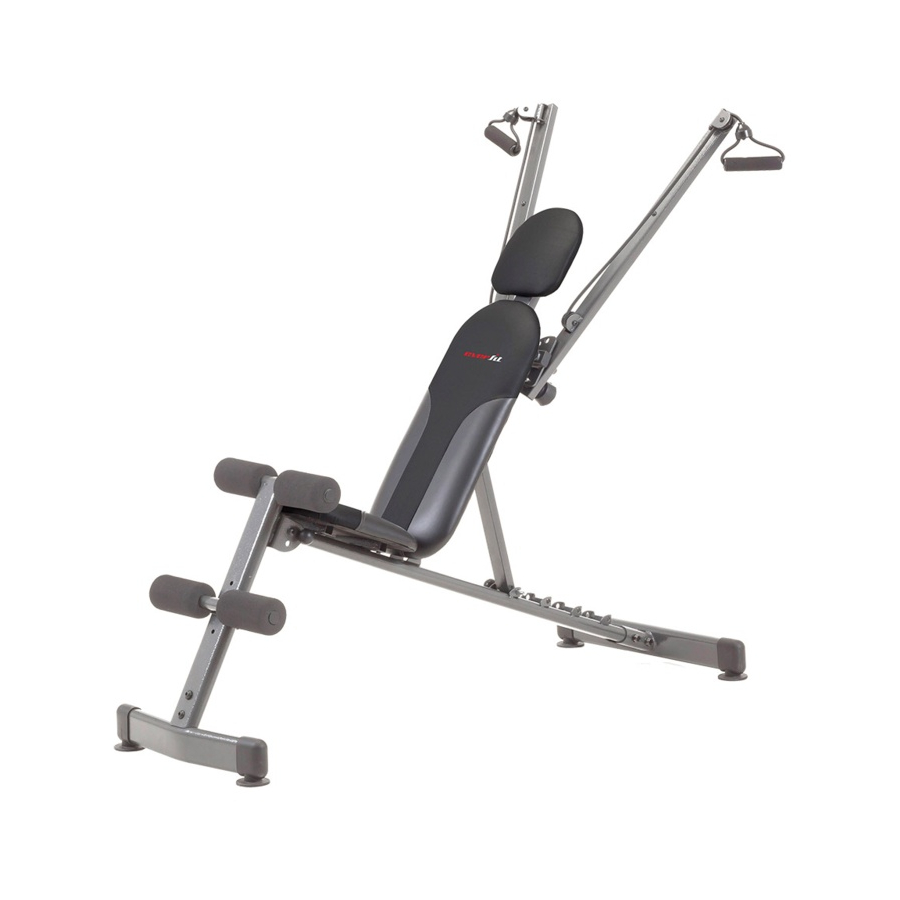

Summary of Contents for Everfit WBK 600 FLEXI FIT

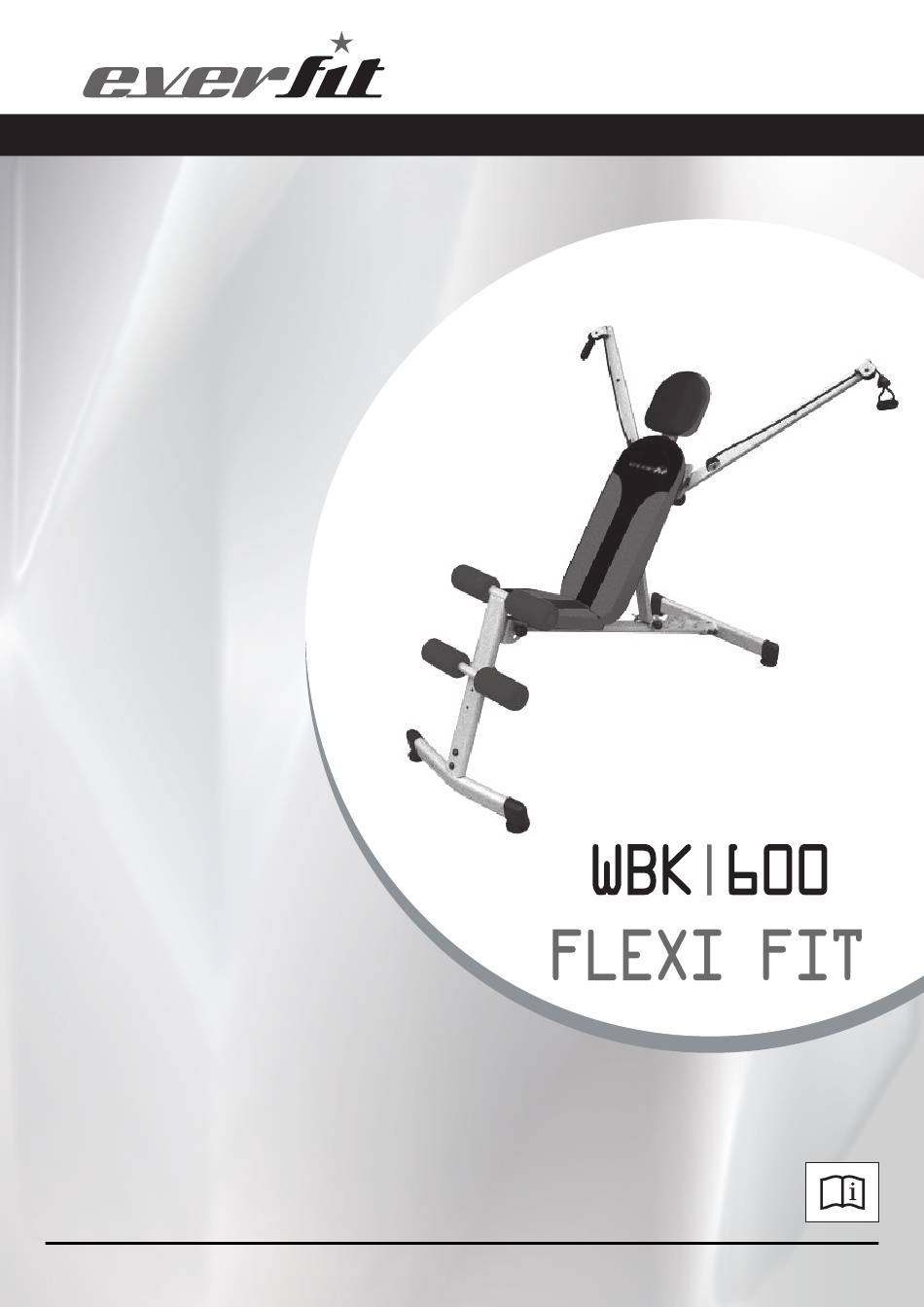

  • Page 1 INSTRUCTION Ed : 07/14 Rev : 00 Codice : GRLDEVEFTW600...

  • Page 2: Hardware Pack

    HARDWARE PACK...

  • Page 3: Assembly Instruction

    ASSEMBLY INSTRUCTION Tools Required for Assembling the Machine: Adjustable wrench and Allen wrench Note: It is strongly recommended two or more people assemble this machine to avoid possible injury. STEP 1 (See Diagram1) A. Attach the Front Base Support (#7) to Front Vertical Support (#1). Secure it with two M10 x 42mm Allen Bolts (#35), fourΦ10 Washers (#27) and two M10 Aircraft Nuts (#37).
  • Page 4 STEP 2 (See Diagram 2) D. Attach Backrest Incline Support (#5) to the Bracket on the Backrest Support Frame (#8), Align the hole and secure with one M10*72MM Allen Bolt (#33), two Ø10MM Washers (#27) and one M10 Aircraft Nut (#37). E.
  • Page 5 G.Attach the Backrest Support Frame (#8) to the U Shaped Bracket on the mid of the Seat Pad Support Frame (#2), Align the hole and secure with one M10X72MM Allen Bolt (#33), two Ø10mm Washers (#33) and one M10 Aircraft Nut (#37). H.Attached the Backrest Incline Support to the U-Shaped Bracket on the Seat Support Frame, adjust to the desired incline and insert the Lock Pin (#11).
  • Page 6 K.Attach the short Foam Roll Tube (#4) to the Front Vertical Support (#1). Use the Knob (#23) to secure the tube at the selected hole. Push two Foam Rolls (#18) onto each end of the Foam Roll Tube (#4). L. Insert the Long Foam Roll Tube (#6) halfway through the hole on the top of the Front Vertical Support (#1).

  • Page 7: Exploded Diagram

    EXPLODED DIAGRAM...
  • Page 8 PARTS LIST Description Key No. Description Front Vertical Support 30x70MM Foot Seat Support Frame 25x50MM End Cap Φ25MM End Cap Rear Base Support Short Foam Roll Tube Knob Backrest Incline Adjust Frame Rubber Band Φ6MM Washer Long Foam Roll Tube Φ8MM Washer Front Base Support Φ10MM Washer...
  • Page 9 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.everfit.it - info@everfit.it...
