- Page 1 INSTRUCTION Ed : 02/17 Rev: 00...
-

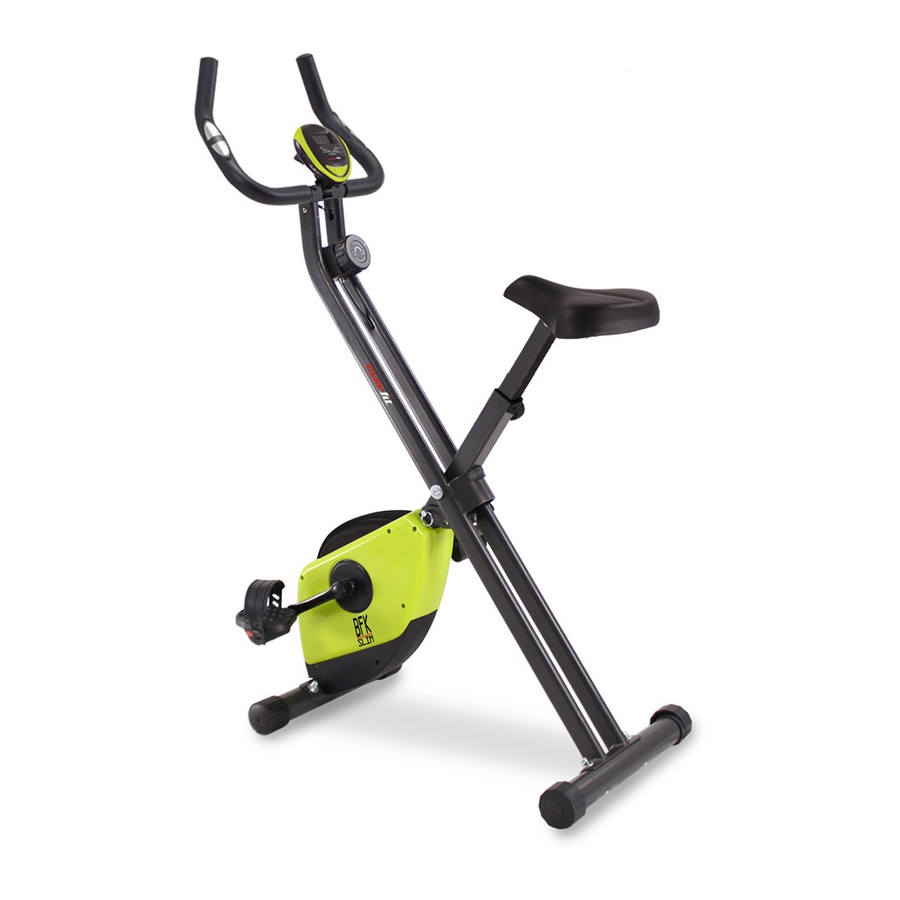

Page 2: Product Overview
PRODUCT OVERVI PRODUCT OVERVIEW Meter Pulse Sensor Tension Knob Handlebar Left Pedal Seat Middle Cover Adjustment Knob Right Chain Cover Rear Frame Right Pedal Wheel End cap Pull Pin Stabilizer Stabilize Wheel End cap THEFOLLOWINGTOOLS ARE INCLUDED FOR ASSEMBLY: Wrench Allen Wrench (5mm) w/ Screwdriver... -
Page 3: Hardware Identification Chart
HARDWARE IDENTIFICATION CHART adyattachedtothepart. Part Number and Description 44 Carriage Bolt M8x60 80 Hex head bolt M8X40 57 Acorn Nut M8 58 Arc Washer 23 Adjustment Knob... - Page 4 ASSEMBLYINSTRUCTIONS RUCTIONS ASSEMBLY INSTRUCTIONS Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing materials from your area and place them back into the box. Do not dispose of the packing materials until assembly is completed.
- Page 5 ASSEMBLYINSTRUCTIONS RUCTIONS STEP4 Attach the SEAT(25) to the SEAT POST(5) with NYLOCK NUTS(79) and LARGE WASHERS (78). Insert the SEAT POST(5) into the MAIN FRAME(1) and secure with the ADJUSTMENT KNOB(23). NOTE: 1. Make sure that the pin on the ADJUSTMENT KNOB (23) is inserted into one of the holes in the SEAT POST(5). The ADJUSTMENT KNOB(23) should be screwed in tight to make the SEAT POST(5) securely in the MAIN FRAME(1).
- Page 6 ASSEMBLYINSTRUCTIONS RUCTIONS STEP5 Insert the wire(13) of Handlebar (3) into the Rear Frame (2),then secure the handlebar on the Rear Frame (2) with Hex Head Bolts M6 (80), and insert the Meter (11) onto the iron sheet of Handlebar (3), then connecting wire (17) and connector (41), connecting wire(13) and Meter wire(77).
- Page 7 STEP6 ASSENBLY INSTRUCTIONS Thread the Left Pedal (27) to the Left Crank (28) as shown. Tighten the pedal securely. Refer to the detail view below. Repeat on the Right side in order to attach the Right Pedal (35) to the Right Crank (36).
- Page 8 OPERATIONALINSTRUCTIONS OPERATIONAL INSTRUCITONS USING THE FITNESS METER POWER ON: Pedal movement or press the button. T I M E S C A N POWER OFF: Automatically shuts off after four minutes of inactivity. S P E E D P U L S E D I S T A N C E O D O M E T E R C A L O R I E S...
-
Page 9: Operational Instructions
OPERATIONALINSTRUCTIONS LOAD ADJUSTMENT To increase the load, turn the TENSION KNOB(39) clockwise. To decrease the load, turn the TENSION KNOB(39) counterclockwise. There are eight levels for the load adjustment. SEAT ADJUSTMENT Proper seat adjustment is important. 1. Turn the ADJUSTMENT KNOB(23) to loosen, then pull the ADJUSTMENT KNOB(23) to release the pin. - Page 10 STORAGE 1. To store the BIKE, simply keep it in a clean dry place. 2. To avoid damage to the electronics, remove the batteries before storing the BIKE for one year or more. 3. To move the BIKE, hold the HANDLEBAR and tilt the BIKE onto the Wheels of the Stabilizer at the front. 4.
-
Page 11: Product Parts Drawing
PRODUCT PARTS DRAWING PARTSLIST... - Page 12 PARTS LIST Description PARTSLIST Main Frame Rear Frame Hand Rail Stabilizer Seat Post Left Chain Cover Right Chain Cover Middle Cover Bushing Foam Pad Meter Handrail Foam Wire Pulse Sensor Sensor Clip Bearing Housing Meter Transmission Line Plastic Bushing Plastic Washer Φ10.2*Φ14 Protection Pad End Cap Adjustment Knob...
- Page 13 Grommet Plug Carriage Bolt M8X60 PARTSLIST Hex Head Round Bolt M8X20 Eye Bolt M6 Tension Bracket Nylock Nut M6 Screw, Round Head Self-Tapping ST4.2X16 Screw, Round Head Self-Tapping ST4.2X16 Screw, Round Head M4X10 Screw, Round Head M5X20 Flat Washer M5 Screw, Round Head M6X12 Screw, Round Head Self-Tapping ST4.0x20 Flat Washer M4...
- Page 14 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.everfit.it - info@everfit.it...
