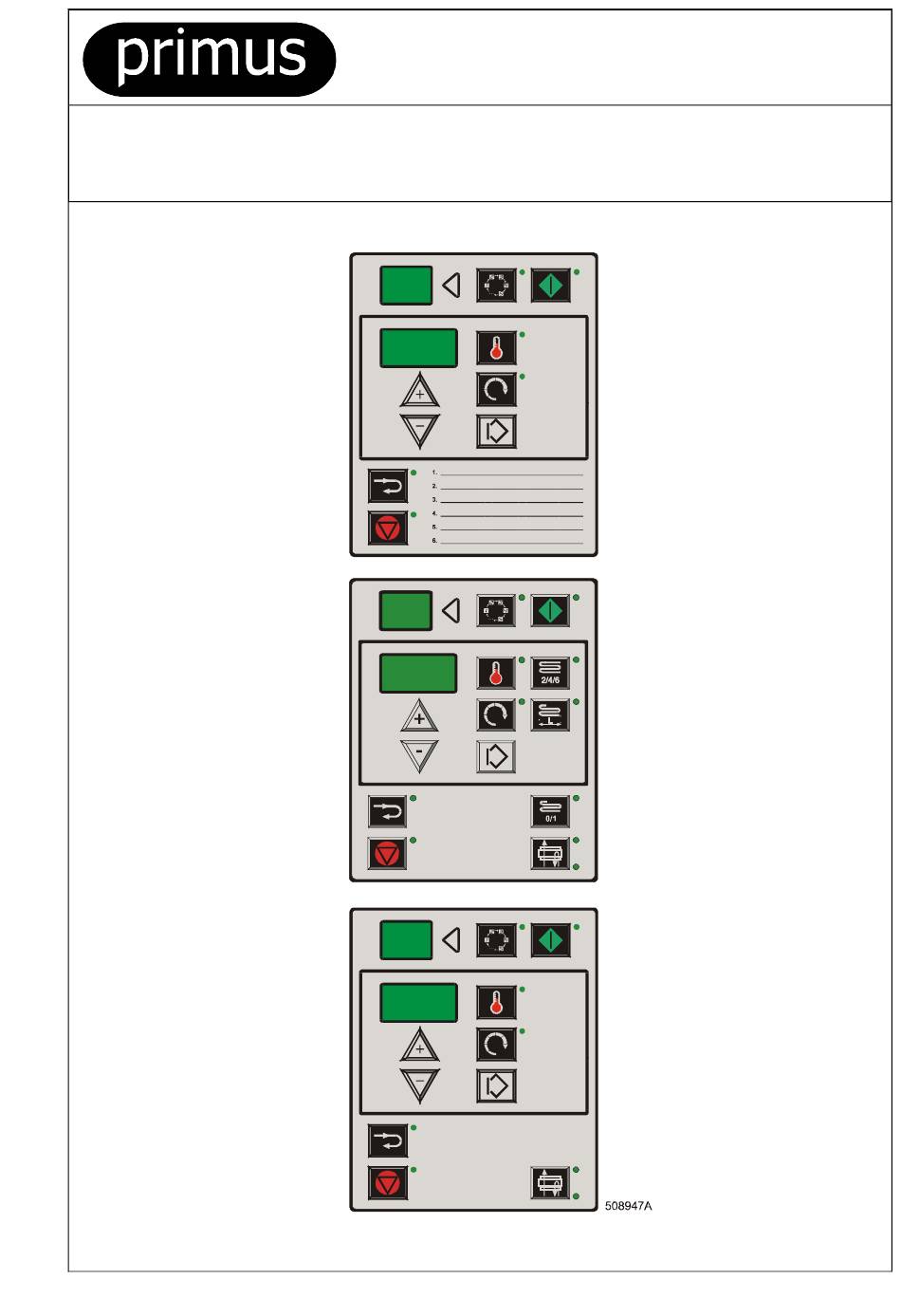

- Page 1 I35/50, IF50, IR50 PROGRAMMING MANUAL IRONING MACHINES WITH INSERTION WIDTH PUBLICATION DATE: 25 Aug 2006 1400/1600/2000/2500/3200 MM AND IRONING MACHINES 508913C WITH FRONT/REAR DELIVERY WITH FOLDER OR WITHOUT FOLDER WITH INSERTION WIDTH 2000/2500/3200 MM...
-
Page 2: Table Of Contents
1. CONTENT Publication date: 25 Aug 2006 Page: 1. CONTENT ........................1 2. WARNINGS AND SYMBOLS ..................2 2.1. WARNINGS............................2 2.2. SYMBOLS USED ..........................2 3. DESCRIPTION OF CONTROLS ..................3 3.1. DESCRIPTION OF BUTTONS FUNCTIONS – VERSION OPL ............3 3.2. DESCRIPTION OF BUTTONS FUNCTIONS – VERSION WITH COIN METER..........6 3.3. -
Page 3: Warnings And Symbols
2. WARNINGS AND SYMBOLS 2.1. WARNINGS Manufacturer reserves the right to change specifications mentioned in this manual any time without notice. All data mentioned here are entirely informative, because it is not possible to mention all specific details of the machine. This English version is the original version. -
Page 4: Description Of Controls
3. DESCRIPTION OF CONTROLS THE CONTROL ENABLES: – Version OPL: create 20 programs (number 1÷20), each of them is combination of temperature, speed, direction of cloths delivery and for ironer with front/rear delivery with folder also parameters for folding; additionally the program 0 is saved in memory, adjusted from manufacturer to 80°C, 4 m/min, which is not possible to change. - Page 5 START The button serves for the machine start – it starts all motors, heating and on machines with pedal and clutch also the feeding table. LED next to the button indicates the machine operation. PROGRAM SELECTION The button enables to choose required program for ironing. Every press of the button increases number of program by 1, from the program 20 it comes over to program 1 again (it means the program sequence is 0-1-2-3-…-19-20-1-2-…).
- Page 6 PROGRAM SAVING This button works only when the programming switch is on. Long press (2s) of the button leads to saving of actual values into actual program, so these values are used at every next start of the machine. If you do not save the values by pressing this button, then the previous values will be read at next start of the machine.
-
Page 7: Description Of Buttons Functions - Version With Coin Meter
DIRECTION OF DELIVERY Every press of the button changes direction of delivering out the linen (forward/backward); each direction is indicated by LED. Valid also for ironer with front/rear delivery without folder. 3.2. DESCRIPTION OF BUTTONS FUNCTIONS – VERSION WITH COIN METER Program creating is not available for version with coin meter, ironer is adjusted to constant temperature and ironing speed (see chapter „3.3. - Page 8 SIZE OF IRONER Choose correct size of ironer (according to production label): Ironer with roller diameter 350 mm, roller length 1400 mm = 314 Ironer with roller diameter 350 mm, roller length 1600 mm = 316 Ironer with roller diameter 350 mm, roller length 2000 mm = 320 Ironer with roller diameter 500 mm, roller length 1600 mm = 516 Ironer or ironer with front/rear delivery with roller diameter 500 mm, roller length 2000 mm = 520 Ironer or ironer with front/rear delivery with roller diameter 500 mm, roller length 2500 mm = 525...
- Page 9 DIAGNOSTIC MENU („DG“) Displaying the state of inputs and outputs of the control unit with possibility to change the state of individual outputs. Input to diagnostic mode is executed by set-up the item „dG“ in initialization to „On“ (by means of „+“...
-
Page 10: Table Of Error Codes, Messages And Troubleshooting
4. TABLE OF ERROR CODES, MESSAGES AND TROUBLESHOOTING 4.1. TROUBLESHOOTING Control system ensures complete control of the ironer. When a failure occurs, the machine will go automatically to safety state. Following table is a guide for solving of common problems. 4.2. -
Page 11: Explanation Of Error Messages
4.6. EXPLANATION OF ERROR MESSAGES IMPORTANT! TECHNICAL REPAIRS OF IRONER CAN BE EXECUTED ONLY BY TECHNICIANS WITH APPROPRIATE KNOWLEDGE OF THE MACHINE. ERROR 1: TEMPERATURE OF IRONING ROLLER IS HIGHER THAN 200°C Error is detected by temperature sensor. For higher safety the machine is equipped with separate safety thermostat, which disconnects heating when temperature exceeds 210°C. - Page 12 ERROR 7: UNDER PRESSURE SWITCHES ARE OFF (GAS HEATING ONLY) 1 or 2 (according to width of machine) under pressure sensors detect correct function of combustion gases exhaust. If the combustion gases exhaust is weak and there is a danger of spreading combustion gases to the space around ironer, then under pressure switches will open and by this the gas valve gets closed and the burner will turn off.
- Page 13 ERROR 12: WRONG FUNCTION OF SAFETY BAR When the machine is switched on, the correct function of safety bar is checked. In case of wrong function the error 012 is reported. The machine control is blocked and it is possible just to switch the machine off and eliminate the failure.
- Page 14 IMPORTANT ! MACHINE TYPE: CONTROLLERS: - OPL - COINMETER INSTALLATION DATE: INSTALLATION CARRIED OUT BY: SERIAL NUMBER: ELECTRICAL DATAILS: ....VOLT....PHASE....Hz NOTE: ANY CONTACTS WITH YOUR DEALER REGARDING MACHINE SAFETY, OR SPARE PARTS, MUST INCLUDE THE ABOVE IDENTIFICATION. MAKE CERTAIN TO KEEP THIS MANUAL IN A SECURE PLACE FOR FUTURE REFERENCE.
