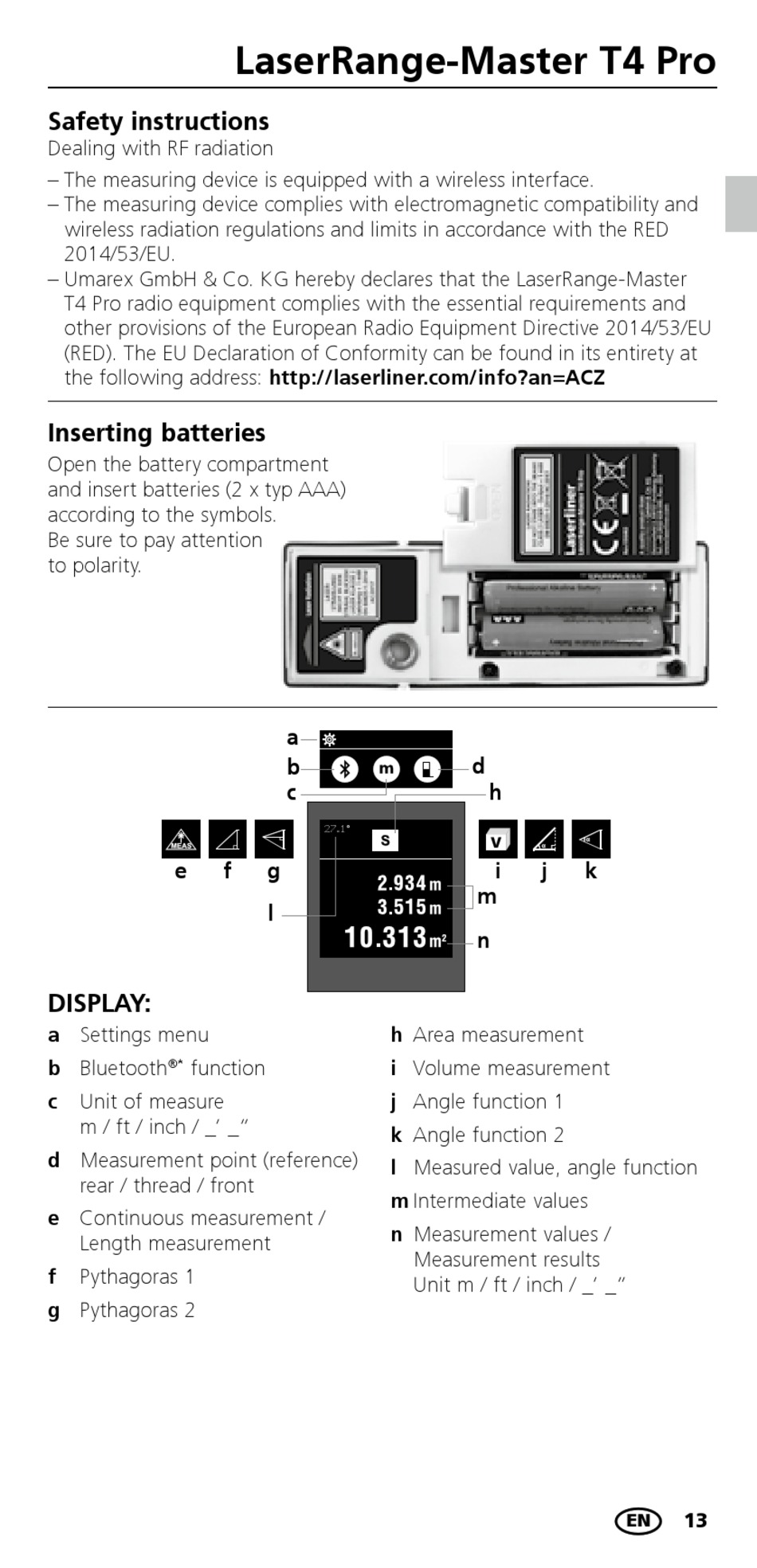

Inserting Batteries - LaserLiner LaserRange-Master T4 Pro Operating Instructions Manual

Safety instructions
Dealing with RF radiation
– The measuring device is equipped with a wireless interface.
– The measuring device complies with electromagnetic compatibility and
wireless radiation regulations and limits in accordance with the RED
2014/53/EU.
– Umarex GmbH & Co. KG hereby declares that the LaserRange-Master
T4 Pro radio equipment complies with the essential requirements and
other provisions of the European Radio Equipment Directive 2014/53/EU
(RED). The EU Declaration of Conformity can be found in its entirety at
the following address: http://laserliner.com/info?an=ACZ

Inserting batteries

Open the battery compartment
and insert batteries (2 x typ AAA)
according to the symbols.
Be sure to pay attention
to polarity.
e
DISPLAY:
a Settings menu
b Bluetooth function
®*
c Unit of measure
m / ft / inch / _' _"
d Measurement point (reference)
rear / thread / front
e Continuous measurement /
Length measurement
f Pythagoras 1
g Pythagoras 2
LaserRange-Master T4 Pro
a
b
c
27.1
°
f g
l
d
h
i
m
n
h Area measurement
i Volume measurement
j Angle function 1
k Angle function 2
l Measured value, angle function
m Intermediate values
n Measurement values /
Measurement results
Unit m / ft / inch / _' _"
j k
13
