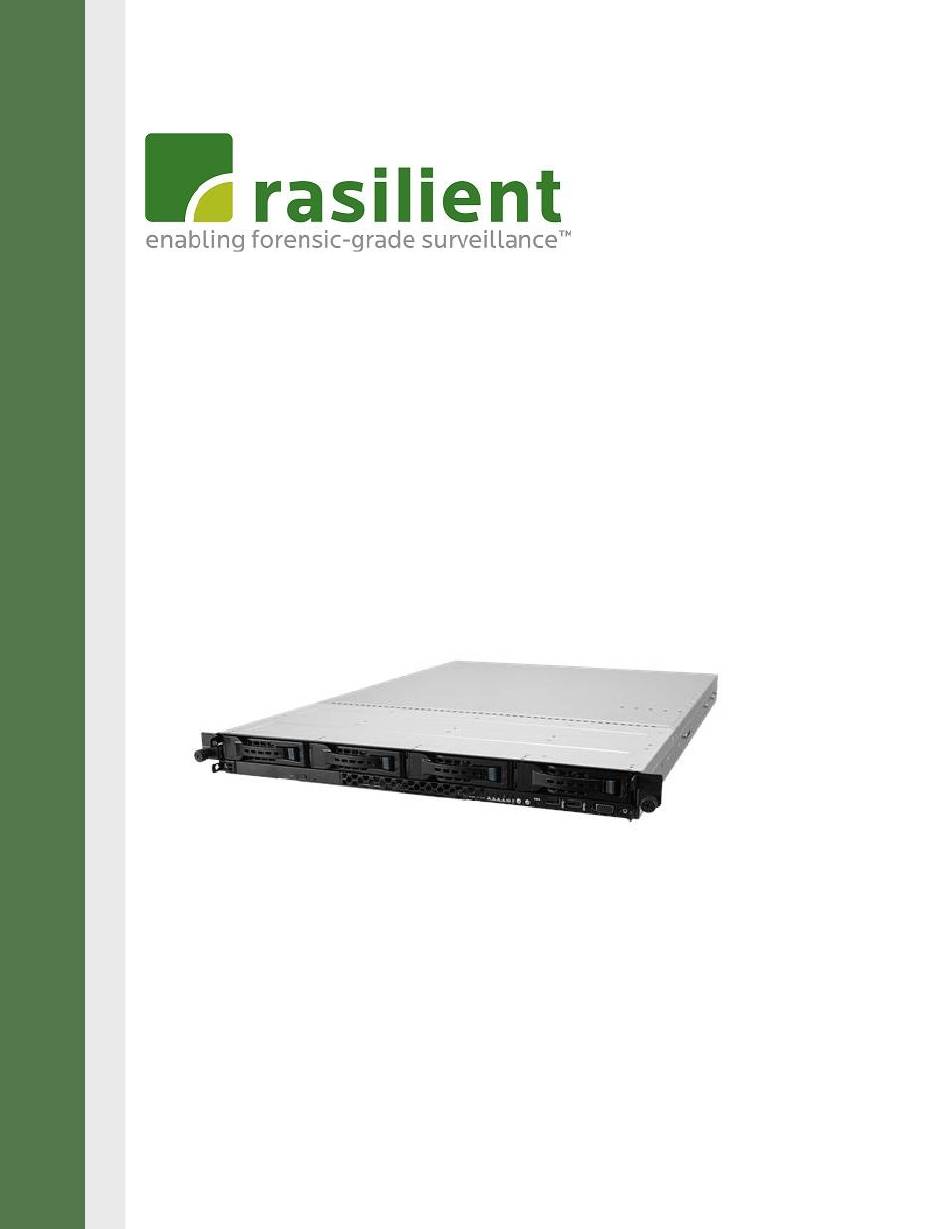

Rasilient ApplianceStor 174R User Manual

Performance storage server

Advertisement

Quick Links

November 2020
RASILIENT CONFIDENTIAL PROPRIETARY INFORMATION This document
contains confidential information that is proprietary to Rasilient or confidential
information which Rasilient has a legal duty to protect from disclosure. The
information contained in this document may not be disclosed without the express
written permission of Rasilient Systems Inc.
ApplianceStor 174R
ApplianceStor 175R
Performance Storage Server
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ApplianceStor 174R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rasilient ApplianceStor 174R

  • Page 1 RASILIENT CONFIDENTIAL PROPRIETARY INFORMATION This document contains confidential information that is proprietary to Rasilient or confidential information which Rasilient has a legal duty to protect from disclosure. The information contained in this document may not be disclosed without the express...
  • Page 2 Copyright Notice All rights, including copyright, in the content of this manual are owned or controlled by RASILIENT and protected by copyright. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of RASILIENT Systems, Inc.
  • Page 3: Table Of Contents

    Contents About This Manual ......................2 Conventions ........................2 Safety Symbols ......................3 Safety Precautions ......................4 Technician Notes ......................4 Electrostatic Discharge Precautions ................4 Rack Warnings ......................4 System Warnings .......................5 Regulatory and Integration Information .................6 Regulatory Compliance Identification Numbers ............6 Product Safety Compliance ..................6 Product EMC Compliance ..................6 European Union Notice ....................7 Power Cords ......................8...
  • Page 4 List of Figures Figure 1: AS175 Front View ..................12 Figure 2: AS175 Front Panel ................... 13 Figure 3: AS175 Rear View and Panel ..............14 Figure 4:Front Panel LEDs ..................15 Figure 5: HDD Status LEDs ..................16 Figure 6: HDD Installation ..................18 Figure 7: AS175 Power Supply Insert / removal ............
  • Page 5 List of Tables Table 1: Safety Compliance ..................6 Table 2: European Union Compliance ...............7 Table 3: Introduction of the Manual ................. 10 Table 4: Package Contents ..................10 Table 5: Specifications ..................... 11...
  • Page 6: About This Manual

    About This Manual Conventions Safety Symbols Safety Precautions Regulatory and Integration Information...
  • Page 7 About This Manual Conventions To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual. Warning: Provides Information to prevent injury in the process of completing a task. Provides Information to prevent damage to the components in the process Caution: of completing a task.
  • Page 8: Safety Symbols

    Safety Symbols The following symbols are placed on some components of the system to alert the user to potential hazards, WARNING: Electric Shock Hazard – To reduce risk of injury from electric shock hazards, do not open this component. WARNING: Contains No User or Field Serviceable Parts – To reduce the risk of injury from electric shock hazards, do not open this component.
  • Page 9: Safety Precautions

    Safety Precautions Technician Notes Only authorized technicians should attempt to repair this equipment. Before installing this system, carefully read all the manuals included with the system.  All repair procedures allow only module replacement. Because of the complexity of the individual boards and sub-assembles, no one should attempt to make repairs at the component level or make modifications to any printed wiring board.
  • Page 10: System Warnings

    If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.
  • Page 11: Regulatory And Integration Information

    Regulatory and Integration Information Regulatory Compliance Identification Numbers For the purpose of regulatory compliance certifications and identification, this system is assigned a serial number. This system serial number can be found on the product label, along with the required approval markings and information.
  • Page 12: European Union Notice

    The rating label on the device shows which class (A or B) the equipment falls into. Class A devices do not have an FCC logo or FCC ID on the label. Class B devices have an FCC logo or FCC ID on the label. Once the class of the device is determined, refer to the following corresponding statement.
  • Page 13: Power Cords

    Canadian Notice (Avis Canadien) Class A Equipment Power Cords The power cord set included in the system meets the requirements for use in the country where the system was purchased. If this system is to be used in another country, contact your sales representative to purchase a power cord that is approved for use in that country.
  • Page 14: Introduction

    Chapter 1 Introduction Audience Assumptions About This Guide Packing Checklist Specifications Product Features System Overview...
  • Page 15: Table 3: Introduction Of The Manual

    Introduction Audience Assumptions This manual assumes that you are a service technician or network administrator familiar with computer hardware, data storage and network administration terminology and tasks. About this Guide This hardware installation guide provides step by step instructions on how to prepare and install the ApplianceStor 175 Storage Server.
  • Page 16: Specifications

    Specifications The table below is the technical specification for the AS175. Table 5: Specifications 2x Intel Xeon Scalable Radeon HD7750 (Not available with RAID) Memory Up to 64GB DDR4 2400 ECC RDIMM Expansion Slot 1x PCIe Gen3 x16 (system can only be fitted with 1 GPU or RAID adapter at a time) Storage 2x 240/480/960 GB SSD for OS...
  • Page 17: Product Features

    Effortless installation Management and administration along with advance RAID Rasilient provides a complete physical security solution. All necessary components are offered, including high-performance recording, viewing/monitoring and administration servers, and high-performance storage...
  • Page 18: Front View

    Front View The front of the AS175 allows easy access to the 4 hot plug drive canisters. Each drive canister has a status LED located to the right of the release handle. The power and reset buttons, LED indicators, slim type optical drive, and two USB ports are located on the front panel.
  • Page 19: Back View

    Back View The back of the AS175 rear panel includes the expansion slots, system power socket, and rear fans. The middle part includes the I/O shield with openings for the rear panel connectors on the motherboard. Figure 3: AS175 Rear View and Panel System LED Information This system is equipped with LED indicators for all major components of the system.
  • Page 20: Figure 4:Front Panel Leds

    Front panel LEDs Figure 4:Front Panel LEDs LAN Port (RJ-45) LEDs...
  • Page 21: Figure 5: Hdd Status Leds

    Dedicated Management LAN port (DM_LAN1) LED indications HDD status LED Figure 5: HDD Status LEDs...
  • Page 22: Hardware Installation

    Chapter 2 Hardware Installation Hard Disk Drives Mounting the System onto a Rack...
  • Page 23: Figure 6: Hdd Installation

    Hardware Installation Hard Disk Drives The system supports four hot-swap SATA/SAS hard disk drives. The hard disk drive installed on the drive tray connects to the motherboard SATA/SAS ports via the SATA/SAS backplane. To install a 3.5” hot-swap SATA/SAS HDD: Push the spring lock to the right (A) then pull the tray lever outward (B) to release the drive tray.
  • Page 24 To remove a 3.5” hot-swap SATA/SAS HDD: Firmly hold the tray lever and pull the drive tray out of the bay.
  • Page 25: Power Supply Modules

    Power Supply Modules The AS175 contains one or two 770 watt power supply modules to provide redundant power for the entire enclosure. One power supply provides enough power to boot up and run a fully loaded system. The second power supply serves as a backup in the event of a system failure. The location of the power supply modules on the AS175 is shown below.
  • Page 26: Mounting The System Onto A Rack

    Mounting the System onto a Rack Rail kit installation The tool less design of the rail kit allows you to easily install the rack rails into the server rack without the need for additional tools. The kit also comes with a metal stopping bracket that can be installed to provide additional support and stability to the server.
  • Page 27 Follow steps 2 to 4 if the depth of your server rack exceeds 850mm, if the depth of your server rack is less than 850mm, please skip steps 2 to 4 and proceed with step 5. 2. Slightly slide out and extend the right rack rail, then prepare one of the bundled rail components. 3.
  • Page 28 A 1U space consists of three square mounting holes with two thin lips on the top and the bottom. 6. Secure the rail components to the rail using the bundled screws. 7 Press the spring lock ( ) then insert the studs into the selected square mounting holes on the rack post. 8.
  • Page 29: Rail Kit Dimensions

    11. Lift the server chassis and insert into the rack rail. Ensure that the rack rail cabinet and the rack posts are stable and standing firmly on a level surface. Rail kit dimensions Figure 9: Rail Kit dimensions...
