Little Tikes 640278M Assembly

Adult assembly required / Le montage devra être effectué par un adulte
Debe ser armado por un adulto
A
640278M
XIM640278-1 - 11/15
www.littletikes.com
www.littletikes.co.uk
www.littletikes.nl
E. Vinyl slide with connector hose
www.littletikes.pl
• Lubricate all metallic moving parts at the beginning of
ENGLISH
the play season and twice per month during the play
season.

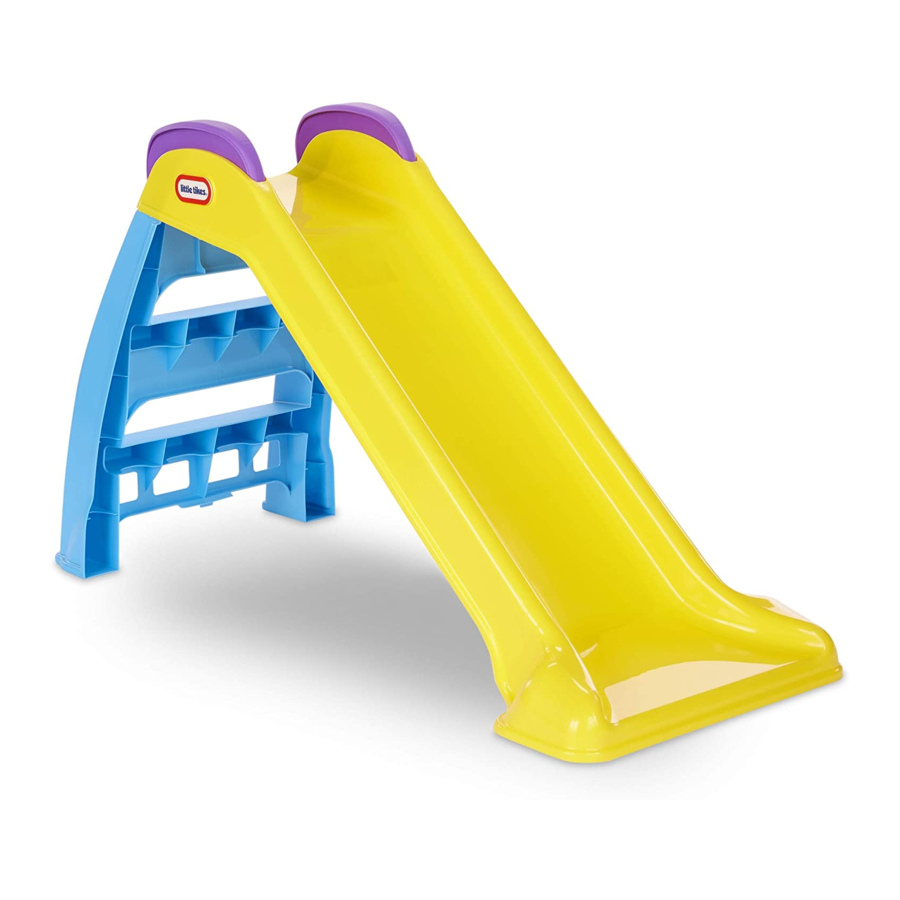

WET AND DRY FIRST SlIDE™
• Check all protective coverings on bolts, pipes, edges,
and corners. Replace if they are loose, cracked, or
Ages: 1 1/2 - 6 years
missing.
Please save sales receipt for proof of purchase.
• Check all moving parts including swing seats, ropes,
WARNING:
cables, and chains for wear, rust, or other deterioration.
Replace if any of these conditions exist.
ADUlT ASSEMBlY REQUIRED.
• Check metal parts for rust. If found, sand and repaint
• Keep these instructions for future reference.
using a nonlead-based paint meeting the requirements
• To prevent serious injury, children must not use the
of 16 CFR 1303.
equipment until properly installed.
• Rake and check depth of loose fill protective surfacing
• Falls onto hard surfaces can result in head or other serious
materials to prevent compaction and to maintain
injuries. Never place on concrete, asphalt, wood, packed
appropriate depth. Replace as necessary.
earth or other hard surfaces. Carpet over hard floors
• Take this product indoors or do not use when
may not prevent injury. Always use protective surfacing
temperatures fall below 0°F/-18°C.
on the ground under and surrounding the playground
AFTER USE
equipment according to the enclosed "Consumer
• Detach garden hose. Detach vinyl slide from slide. Dry, roll
Information Sheet for Playground Surfacing Materials."
up and store the Wet and Dry First Slide™ when not in use.
Maximum fall height protection up to 2 feet (0.6 m)
• Do not store the Wet and Dry First Slide™ indoors or in a
required.
closed container until slide is completely dry.
• Adult supervision required. Do not leave children
• Store slide in a secure place, away from children, to
unattended.
prevent suffocation.
• This product is intended for use by children ages
1 1/2 - 6 years.
CAUTION! NOT FOR ADUlT USE. NOT FOR
• Maximum weight per child: 60 lbs. (27.2 kg). Limit 1 child.
CHIlDREN OVER 6 YEARS OR UNDER 18 MONTHS.
• This product is intended for indoor/outdoor domestic
THIS PRODUCT IS NOT INTENDED FOR ANYONE
family use only.
• Observing the following statements and warnings reduces
the likelihood of serious or fatal injury. Because of their size, older children and adults risk spine,
neck, head, or other life-threatening injuries from using
• Place this product on level ground and at least 6'6" (2 m)
away from any object. Objects to be avoided include, but this slide.
are not limited to, fences, buildings, overhead branches, Reckless use, misuse or abuse of this slide may cause
laundry lines or electrical wires. serious injury. Use with adult supervision only.
• It is recommended that the orientation of the assembled Proper adult assembly is required.
product be such that direct sunlight is minimized on DO NOT SLIDE HEAD FIRST. Head first slide may result in
surfaces intended for standing or sitting. serious injury.
• Instruct children on proper use of this product, only after
properly placed, and not in a manner other than intended.
CONSUMER SERVICE
• Instruct children not to attach items to the product that
TOll-FREE NUMBER:
are not specifically designed for use with the product
such as, but not limited to, jump ropes, clotheslines, United States:
pet leashes, cables and chains, as they may cause a
www.littletikes.com
strangulation hazard. 1-800-321-0183 Monday - Friday
• Instruct children to remove their bike or other sports
The Little Tikes Company
helmet before playing on this product. 2180 Barlow Road
• Dress children appropriately: do not allow children to wear
Hudson, OH 44236
loose-fitting clothing including ponchos, scarves and
E-mail: littletikes.cares@littletikescare.com
garments with drawstrings.
United Kingdom:
• Vinyl slide is NEVER to be used unattached from slide.
www.littletikes.co.uk
• Warning. Only for domestic use.
Little Tikes
MAINTENANCE
MGA Entertainment (UK) Ltd
WARNING:
50 Presley Way
Crownhill
Failure to perform periodic checks could cause this product
Milton Keynes MK8 0ES
to overturn or cause a fall.
Bucks, UK
The following checks should be performed at the beginning E-mail: Info.LittleTikes@mgae.com
and end of each season and twice monthly during the usage
Printed in U.S.A. D.R.©2015 The Little Tikes Company
period:
© The Little Tikes Company, an MGA Entertainment company. LITTLE TIKES® is a trademark of Little Tikes in the
• Reinstall any plastic parts, such as swing seats or any U.S. and other countries. All logos, names, characters, likenesses, images, slogans, and packaging appearance
are the property of Little Tikes. Please keep this address and packaging for reference since it contains important
other items that were removed for the cold season.
information. Contents, including specifications and colors, may vary from photos depicted on package.
• Tighten all hardware.
Instructions included. Please remove all packaging including tags, ties & tacking stitches before giving this
product to a child.
B
A. Slide / Toboggan / Tobogán
B. Steps / Marches / Escalera
F. Hose attachement
Fixation de tuyau
Toile en vinyle avec tuyau connecteur
Conexión de manguera
Tobogán de vinilo con manguera de conexión
lIMITED WARRANTY
The Little Tikes Company makes fun, high quality toys. We warrant to the original purchaser that this product
is free of defects in materials or workmanship for one year * from the date of purchase (dated sales receipt is
required for proof of purchase). At the sole election of The Little Tikes Company, the only remedies available
under this warranty will be the replacement of the defective part or replacement of the product. This warranty is
valid only if the product has been assembled and maintained per the instructions. This warranty does not cover
abuse, accident, cosmetic issues such as fading or scratches from normal wear, or any other cause not arising
from defects in material and workmanship. *The warranty period is three (3) months for daycare or commercial
purchasers.
U.S.A and Canada: For warranty service or replacement part information, please visit our website at www.
littletikes.com, call 1-800-321-0183 or write to: Consumer Service, The Little Tikes Company, 2180 Barlow Road,
Hudson OH 44236, U.S.A. Some replacement parts may be available for purchase after warranty expires—
contact us for details.
Outside U.S.A and Canada: Contact place of purchase for warranty service. This warranty gives you specific
legal rights, and you may also have other rights, which vary from country/state to country/state. Some countries/
states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation
or exclusion may not apply to you.
Please keep this manual as it contains important information.
WET AND DRY FIRST SlIDE™
Ages : 18 mois - 6 ans
Prière de conserver le reçu comme preuve d'achat.
ATTENTION :
WEIGHING OVER 60 lBS. (27.2 KG.)
MONTAGE PAR UN ADUlTE REQUIS
• Conserver ces instructions à titre de référence.
• Pour prévenir des blessures graves, les enfants ne doivent
pas utiliser l'équipement avant son installation complète.
• Une chute sur une surface dure peut causer un traumatisme
crânien ou d'autres blessures graves. Ne placez jamais
ce produit sur du béton, de l'asphalte, du bois, de la terre
battue, ou d'autres surfaces dures. Un tapis sur un plancher
dur pourrait ne pas suffire à empêcher les blessures. Utilisez
toujours un revêtement de protection sur le sol, sous et autour
de l'équipement du terrain de jeux, conformément à la « Fiche
d'informations au consommateur sur les matériaux de surface
des aires de jeux » jointe. Hauteur maximale de protection
contre les chutes requise jusqu'à 0.6 mètre (2 pieds).
• La surveillance par un adulte est recommandée. Ne laisser
jamais un enfant sans surveillance.
• Ce produit est destiné à des enfants de 18 mois - 6 ans.
• Poids maximum par enfant : 27.2 kg. Limité à 1 enfant.
• Ce produit n'est conçu que pour une utilization
domestique et familiale, à l'intérieur et l'extérIeur.
• L'observation des règles et des précautions suivantes
diminue les risques d'accidents graves ou mortels.
• Installer cet appareillage sur un terrain nivelé et à une
distance d'au moins 2 m de tout objet. Les objets à
éviter comprennent mais sans s'y limiter, les clôtures, les
constructions, les branches hautes, les cordes à linge ou
les fils électriques.
• Nous vous recommandons d'orienter le produit assemblé
de manière à minimiser l'exposition au soleil des surfaces
conçues pour se tenir debout ou s'asseoir.
• Apprendre aux enfants comment utiliser cet appareillage
de manière appropriée, seulement après avoir
MINIMUM SIZE allowed is .2" high
Updated 12.2.11 per Paul Madan (new spacing) correctement effectué le montage et l'installation. Et non
pas d'une manière qui ne correspondrait pas à la fonction
de l'appareillage.
Assembly / Montage / Ensamblaje
1
C
D
C. Left Handle D. Right Handle
Poignée gauche Poignée droite
Mango izquierdo Mango derecho
3
C
A
4
Visit our website at
www.littletikes.com
to register your product online and
D
to enter our sweepstakes.
(No purchase necessary)
FRANÇAIS
A
Vinyl slide attachment / Fixation de la toile en vinyle / Acoplamiento del tobogán de vinilo
5
Flip slide up and locate a hole on each side.
Flip slide up and locate a hole on each side.
Flip slide up and locate a hole on each side.
To detach slide, push
2
down on ladder.
Pour détacher la
toboggan, appuyer sur
B
l'échelle.
Para quitar el tobogán
empuje la escalera hacia
abajo.
A
C
A
D
A
6
Thread velcro strap
through each hole and
secure.
Engagez la sangle Velcro
dans chaque trou et
attachez-la.
Pase las tiras de velcro por
cada uno de los orificios y
sujételas.
Turn slide (A) over and align top
of steps (B) with slots in bottom
of slide. Push down until bump is
positioned in slot as shown.
Posez le toboggan à l'envers (A) et
alignez le haut des marches (B) sur les
encoches au bas du toboggan. Appuyer
vers le bas de manière à positionner la
bosse dans l'encoche comme indiqué.
Dé vuelta el tobogán (A) y alinee el lado
superior de la escalera (B) con las ranuras
en el lado inferior del tobogán. Empuje
hacia abajo hasta que el saliente quede
en la ranura tal y como se muestra.
Align notched end of left handle
(C) with slot on left side of slide
and snap into place.
Alignez l'extrémité de la poignée
gauche (C) munie d'une encoche sur la
rainure du côté gauche du toboggan et
enclenchez-la.
Alinee el extremo con muesca del
mango izquierdo (C) con la ranura en el
lado izquierdo del tobogán y encájelo
en su sitio.
Align notched end of right handle
(D) with slot on right side of slide
and snap into place.
Alignez l'extrémité de la poignée
droite (D) munie d'une encoche sur la
rainure du côté droit du toboggan et
enclenchez-la.
Alinee el extremo con muesca del
mango derecho (D) con la ranura en el
lado derecho del tobogán y encájelo
en su sitio.
E
Vinyl should lay flat with hose attachment on the left as
shown.
La toile en vinyle doit être bien à plat avec la fixation de tuyau
posée à gauche, comme illustré.
El tobogán de vinilo debe quedar extendido con la conexión de
manguera a la izquierda tal y como se muestra.
