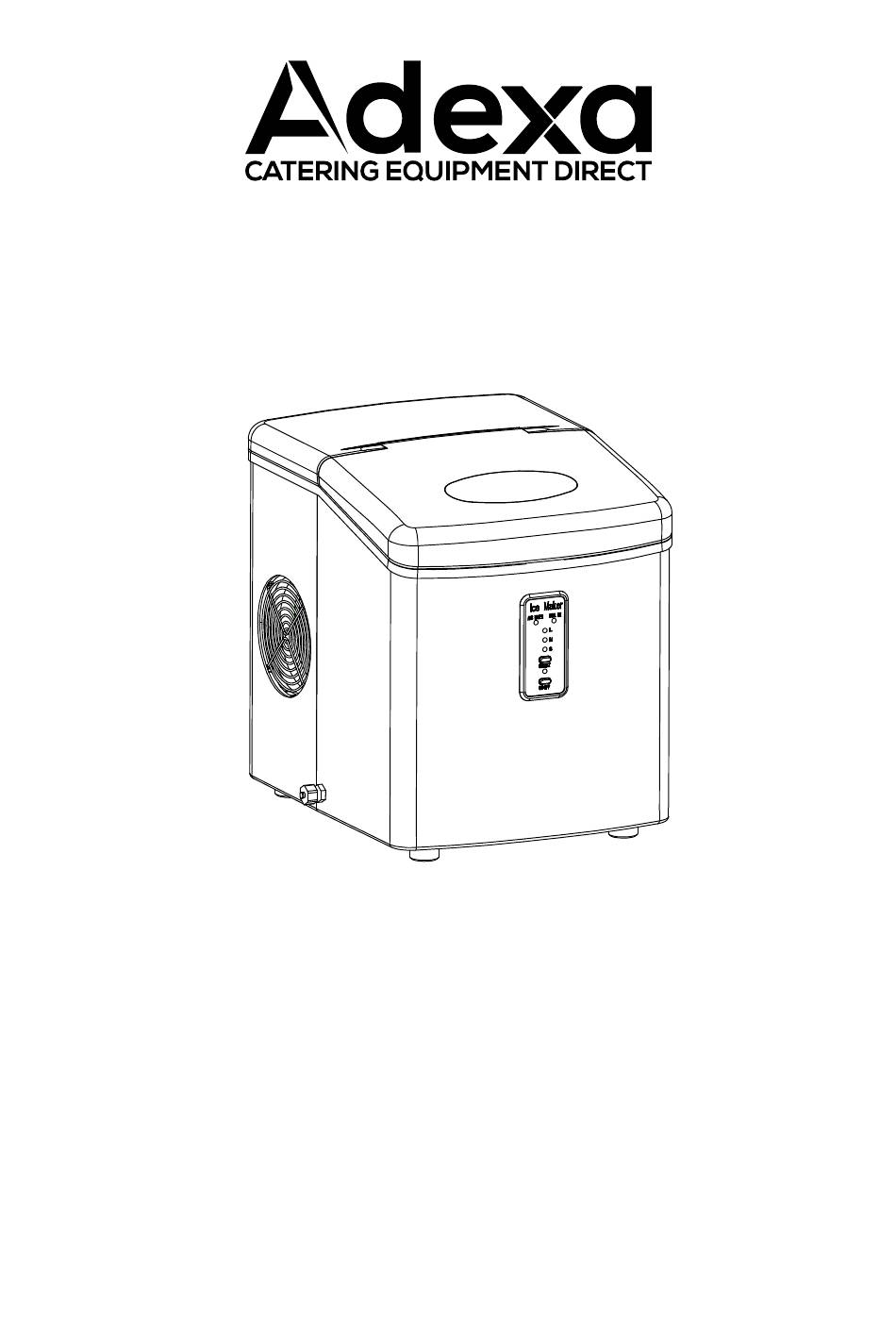

- Page 1 PORTABLE AUTOMATIC ICE MAKER HZB-15/SA INSTRUCTION MANUAL It is important that you read these instructions before using your portable ice maker and we strongly recommend that you keep them in a safe place for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS………………………………………………. ….2 PREPARING YOUR ICE MAKER FOR USE ………………………………………………………………………3 IMPORTANT SAFETY TIPS GETTING TO KNOW YOUR UNIT ………………………………………………………… ………………………………………………………… OPERATING PROCEDURES & MAINTENANCE ………………… …………………………………………… ………………… …………………………………………… UNPACKING UNPACKING YOUR YOUR MAKER MAKER ………………... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PREPARING YOUR ICE MAKER FOR USE Your safety and the safety of others are very important. We have provided many important safety messages manual and your appliance. Always read and obey all safety messages. This is the safety alert symbol: All safety messages will follow the safety alert symbol and the word “DANGER”... - Page 4 Keep cord away from traffic areas, and do not submerge in water. We do not recommend the use of an extension cord, as it may overheat and become a risk of fire. If you must use an extension cord, use No.0.75mm minimum size and rated no less than 16A/250V~ with a plug.
- Page 5 IMPORTANT: The wires in this mains lead are colored in accordance with the following code: Green and yellow: Grounding Blue: Neutral Brown: Live To avoid a hazard due to instability of the appliance, it must be placed at an even or flat surface.
-
Page 6: Getting To Know Your Unit
GETTING TO KNOW YOUR UNIT 1. Cover: With a transparent window to allow interior visibility. 2. Ice scoop. 3. Ice shovel. 4. Control Panel: Easy to use, visible functions touch display setting. A. Selected ice size displaying: Small, Medium, and Large. B. -
Page 7: Operating Procedures & Maintenance
OPERATING PROCEDURES & MAINTENANCE UNPACKING YOUR ICE MAKER 1. Remove the exterior and interior packaging. Check that ice basket and ice scoop is included. If any parts are missing, please contact our customer service. 2. Clean the interior with lukewarm water and a soft cloth. Take out the ice basket and clean it 3. -
Page 8: Using Your Ice Maker
USING YOUR ICE MAKER 1. Open the cover, remove the ice basket and pour water into tank. Keep water level below the water level mark. 2. Press “Power” button on the control panel to begin the ice making cycle. 3. Select the size of the ice cube by pressing the “Select” button. If the room temperature is lower than 15℃, it is recommended to select the small or medium ice sign button in order to avoid ice sticking together. -
Page 9: Technical Parameters & Circuit Diagram
TECHNICAL PARAMETERS & CIRCUIT DIAGRAM TECHNICAL PARAMETERS Model HZB-15/SA Model HZB-15/SA Protection Type Protection Type Climate Type SN/N /ST/T Climate Type SN/N /ST/T Power 220-240 Power 220-240 Making Current Making Current Harvest Current Harvest Current Refrigerant Refrigerant Weight 11.2 Weight 11.2...
