KPF-04
•
Set the rotary switch at 400V
•
Insert the test leads into the input jack.
•
Connect the test prods of the test leads in PARALLEL to the circuit to be measured.
•
prees Mode button to selet ACV or DCV function.
•
Read the measured value from the LCD display.
WARNING: Before taking any in-circuit resistance measurement,remove power
from the circuit being tested and discharge all the capacitors.

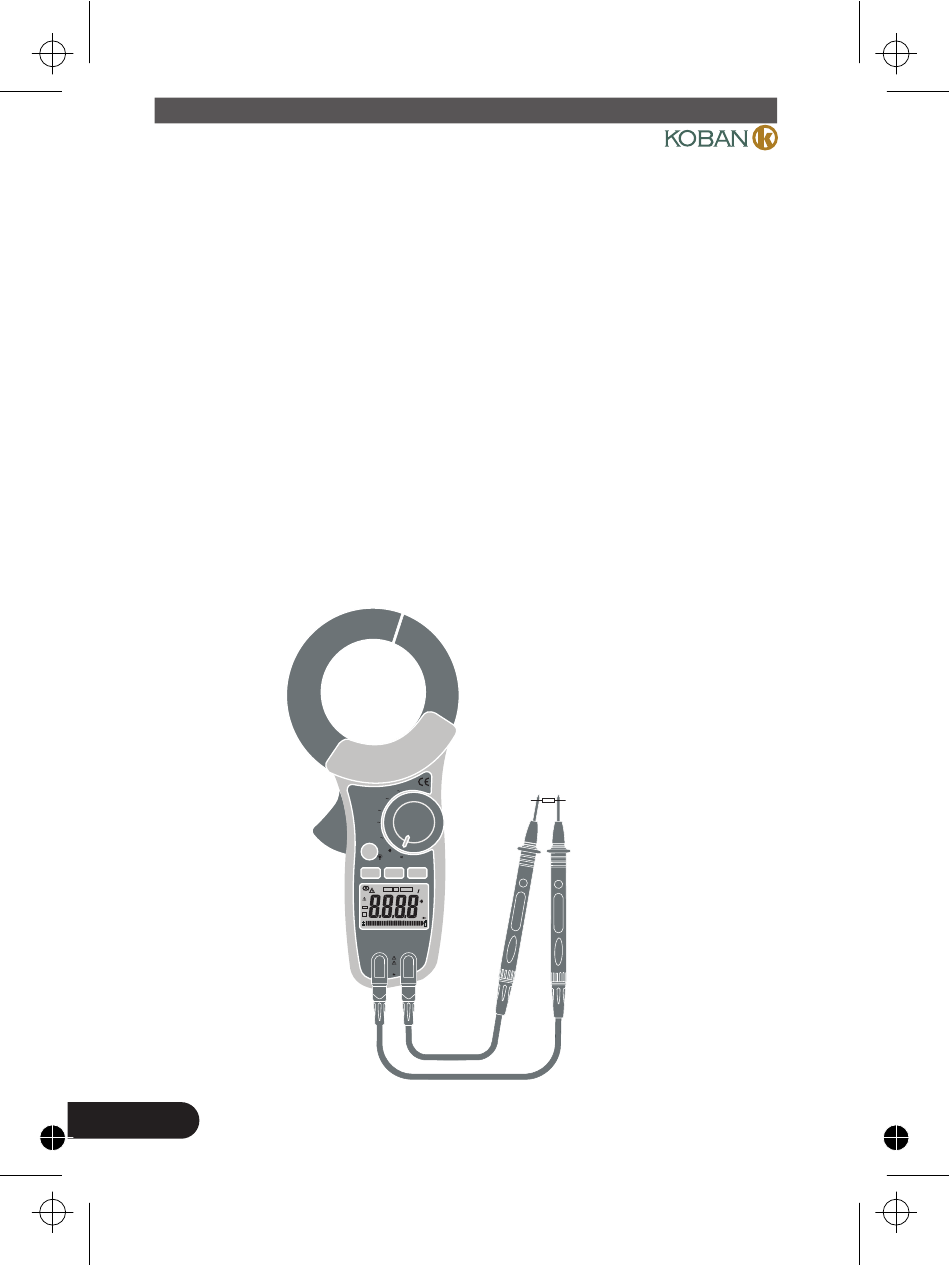

D. Resistance and Continuity Measurement
•
Set the rotary switch at
•
Insert the test leads into the input jack.
•
Connect the test prods of the test leads to the two ends of the resistor or circuit
•
be measured.
•
Read the measured value from the LCD display.
•
If the resistance is lower than 40Ω, a beeping sound shall be heard.
12
Ω
1000A
AUTO
POWER 200A
OFF
20A
2A
200
mA
Ω
HOLE
V
OFF
MAX
MODE PEAK
MIN
MAX PEAK WIDE
P H INRUSH
50 60Hz
MIN
°C °F
V
AC
mA
Ω
DC k
AT Hz
TRUE RMS AC CLAMP
LEAKAGE CURRENT TESTER
COM V Ω
CAT III
600V
EN
