* The hardware, the vibration control Type 663, was tested using Exida's FMEDA. The results of the FMEDA
meet the criteria according to SIL2, SIL3 and PL-d.
** In determining the safety function, using the safety key figures in accordance with the standards mentioned
under item 4 in the safety manual, the relay contacts of the vibration control Type 663 were explicitly evaluated
and taken into account. The current output 4...20 mA is not configured in a safety-relevant manner.

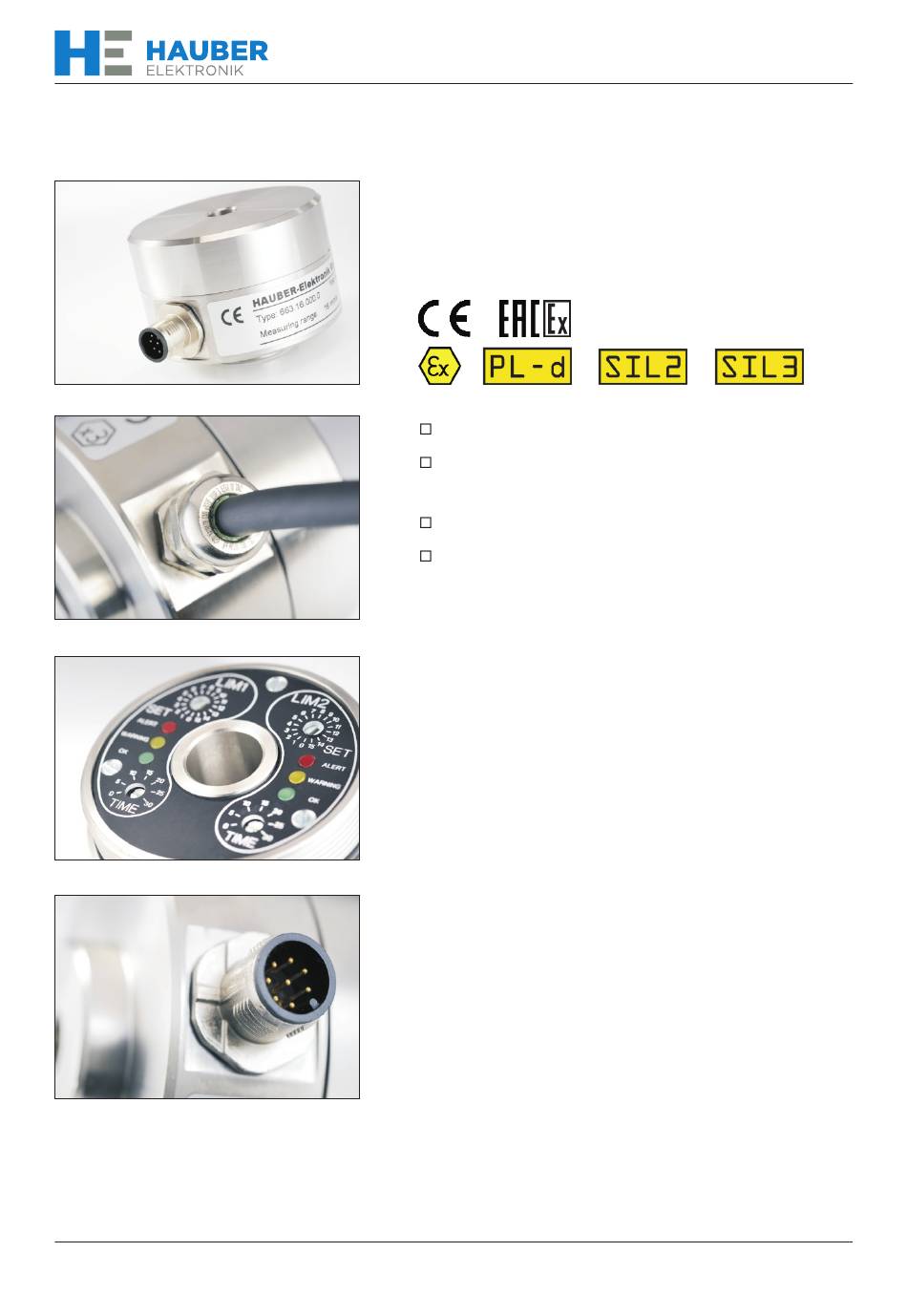

Vibration Control
Type 663
Vibration Velocity (
2 Relay-Switching Outputs
(Adjustable)
Analogue Current Output: 4...20 mA
Frequency Range: 10 Hz...1000 Hz
*
mm/s, rms)
**
1 Hz...1000 Hz
Manual
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 663 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hauber 663

  • Page 1 ** In determining the safety function, using the safety key figures in accordance with the standards mentioned under item 4 in the safety manual, the relay contacts of the vibration control Type 663 were explicitly evaluated and taken into account. The current output 4...20 mA is not configured in a safety-relevant manner.
  • Page 2 HAUBER-Elektronik GmbH Instruction Manual Vibration Control Type 663 Standard Zone-1-21 Zone-2-22 Issue: 01/02/2016 Attention! Before commissioning the product, you must have read and understood the instruction manual in its entirety!
  • Page 3: Table Of Contents

    HAUBER-Elektronik GmbH Contents 1 Safety Information ................. 4 2 Instruction Manual Scope ..............5 3 Vibration Control Type 663 ..............5 Standard, Zone-1-21, Zone-2-22 4 Intended Use ..................5 5 Safety Level ................... 5 6 Documents and Certificates ..............5 7 Responsibility for Safe Operation / Disclaimer ........
  • Page 4: Safety Information

    HAUBER-Elektronik GmbH Safety Information General Information The safety instructions serve to protect persons and objects from damage and danger that may arise from misuse, incorrect operation, or other incorrect handling of devices, especially in potentially explosive atmospheres. Therefore, read the instruction manual carefully, before working with or commissioning the product.
  • Page 5: Instruction Manual Scope

    In determining the safety function, using the safety key figures in accordance with the standards mentioned under item 4 in the safety manual, the relay contacts of the vibration control Type 663 were explicitly evaluated and taken into account. The current output 4...20 mA is not configured in a safety-relevant manner.
  • Page 6: Responsibility For Safe Operation / Disclaimer

    II 3 D Ex tc IIIC T120 °C Dc and 22 * The hardware, i.e., vibration control Type 663, was tested using Exida's FMEDA. The results of the FMEDA meet the criteria according to SIL2, SIL3 and PL-d Scope of Delivery •...
  • Page 7: Electrical Data

    HAUBER-Elektronik GmbH Electrical Data Only unscrew the housing cover if Type 663 is disconnected from the mains or if the atmosphere is non-explosive Otherwise, there is an explosion hazard from sparking when operating ATEX-certified Type 663 in potentially explosive atmospheres!
  • Page 8 HAUBER-Elektronik GmbH Frequency Response 10 Hz...1000 Hz 1000 10000 Frequency Response 1 Hz...1000 Hz 10,0 100,0 1000,0 10000,0 Operating Range of Vibration Control Type 663 Arbeitsbereich interner Sensorbaustein Reading example: Frequency Max. measurable (Hz) vibration velocity Operating Range 1000 1000...
  • Page 9: Mechanical Data

    HAUBER-Elektronik GmbH Mechanical Data Housing material: V2A stainless steel; material no.: 1.4305 M12 connector material: CuZn (brass), nickel plated Cable gland: V2A stainless steel Fastening: Allen screw, M8 x 20 mm, Thread pitch: 1.25 mm Mounting: Ground housing using M8 fastening (see Sect.16).
  • Page 10: Connections

    Connection cable socket M12, 8-pin, 0.25 mm². See connection plan for pin allocation. Connection Plan for All 3 Models Pin 1: white Pin 2: brown Type 663 Pin 3: green Pin 4: yellow Pin 5: grey Relay 1 Pin 6: pink...
  • Page 11: Functional Description

    Otherwise, there is an explosion hazard from sparking when operating ATEX-certified Type 663 in potentially explosive stmospheres! Type 663 has two limit values, LIM1 and LIM2, with their respective lag times, which can all be adjusted separately.
  • Page 12: Limit Value Adjustment

    HAUBER-Elektronik GmbH Limit Value Adjustment Limit Value Turn-Switch Range Range Range Range Range Range Position 0…8 mm/s 0…16 mm/s 0…32 mm/s 0…64 mm/s 0…128 mm/s 0…256 mm/s Example: Limit value adjustment Measuring range e.g.: 0...32 mm/s Set turn-switch pos.: Limit value:...
  • Page 13: Mounting And Dismounting

    Before mounting or dismounting, disconnect the control from the mains! Ensure that disconnected plug connections are always de-energised! Otherwise, there is an explosion hazard from sparking when operating ATEX-certified Type 663 in potentially explosive atmospheres! Ground the control housing via the fastening, i.e. the machine earth or a seperate earth conductor (PE)! 16.1...
  • Page 14: Zone-2-22-Fastening Safety Clip / Protective Cover

    HAUBER-Elektronik GmbH 16.2 Zone-2-22—Fastening Safety Clip / Protective Cover Always operate model Zone-2-22 with the safety clip to avoid accidental disconnection of the plug connection! Otherwise, there is an explosion hazard from sparking when operating this control in potentially explosive atmospheres! Fastening Safety Clip Fully insert the connection cable socket into the M12 connector.
  • Page 15: Anti-Tamper Protection

    5 Nm)! Otherwise, there is an explosion hazard from sparking when operating ATEX- certified Type 663 in potentially explosive atmospheres! Prior to commissioning Type 663, protect the mains with a microfuse (medium time lag, 160 mA, breaking capacity C)! Protect the connection cable and possible extension cables from electrical influences or mechanical damage! Ensure to stricly follow local regulations and directives! Check the self-test during commissioning.
  • Page 16: Maintenance And Repairs

    Disconnect Type 663 from the mains prior to performing repair or cleaning work! Ensure that disconnected plug connections are always de-energised! Otherwise, there is an...
  • Page 17: Grounding Concepts To Avoid Ground Loops

    HAUBER-Elektronik GmbH Grounding Concepts to Avoid Ground Loops Ground loops are among the most frequent problems in measurement setups with sensitive sensor technology. They arise through unwanted potential differences inside the current circuit between sensor and evaluation unit. As a countermeasure we recommend our Standard Grounding Concept or, depending on your application, our Alternative Grounding Concept.
  • Page 18: Order Code

    HAUBER-Elektronik GmbH Order code C D E A = HAUBER type 663 = Monitoring SIL2 4...20 mA ~ mm/s rms + free limit values B = Measurement range 8 mm/s rms 16 = 16 mm/s rms 32 = 32 mm/s rms...
