Hauber 663 Instruction Manual
Vibration control, standard, zone-1-21, zone-2-22
Hide thumbs
Also See for 663:
- Instruction manual (18 pages) ,
- Operating instructions manual (19 pages)
Related Manuals for Hauber 663
Summary of Contents for Hauber 663

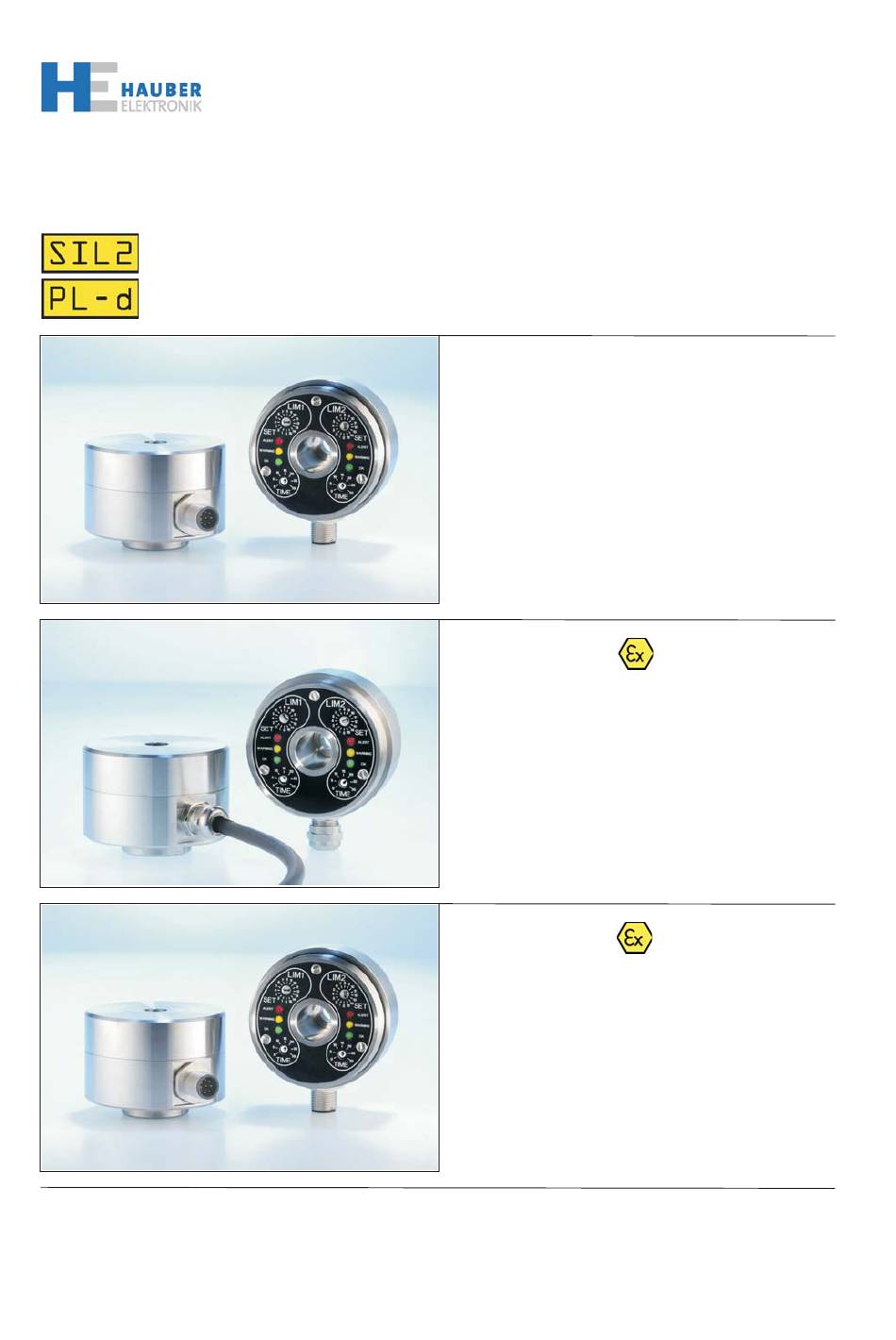

- Page 1 Vibration Control Type 663 Standard Zone-1-21 Zone-2-22 Instruction Manual English...
- Page 2 HAUBER-Elektronik GmbH Instruction Manual Vibration Control Typ 663 Standard Zone-1-21 Zone-2-22 Edition: 30.03.10 Attention! Before Start-Up Procedure the Instruction Manual must be read and understood! Should any question arise, please contact: HAUBER-Elektronik GmbH Fabrikstraße 6 D-72622 Nuertingen Germany Phone.: +49 (0) 7022 / 62393 Fax: +49 (0) 7022 / 64143 info@hauber-elektronik.de...
-
Page 3: Table Of Contents
HAUBER-Elektronik GmbH Content 1 Safety Informations................4 2 Instruction Manual Scope ..............5 3 The Vibration Control Typ 663...............5 Standard, Zone-1-21, Zone-2-22 4 Intended Use ..................5 5 Safety Level...................5 6 Documents and Certificates ..............5 7 Application Fields ..................6 8 Delivery Contents ..................6 9 Electrical Data ..................7... -
Page 4: Safety Informations
HAUBER-Elektronik GmbH Safety Instructions In General The safety instructions serve the protection of persons and things from damage and danger that arise from not intended use and further misuse of products especially in explosion endangered areas. Therefore read the instruction manual carefully, before working with or starting-up the product. -
Page 5: Instruction Manual Scope
An exceeding of the adjustable Limit Value is signalled via relay outputs. This can be used to generate a pre- and a main alarm. In addition the Typ 663 has an analogue current output. This delivers a direct current from 4...20 mA proportional to the vibration amplitude. -
Page 6: Application Fields
Areas Zone 2 und 22 II 3D Ex tD A22 IP55 T125 °C Delivery Contents Variant Delivery Contents • Vibration Control Typ 663 • Cylinder Bolt, M8 x 20 m m Standard • Spring Ring, M8 • Ins truction Manual •... -
Page 7: Electrical Data
HAUBER-Elektronik GmbH Electrical Data The housing cover may only be unscrewed, if the Type 663 is either seperated from the mains or no explosion endangered atmosphere exists. Otherwise danger of explosion because of sparkling, when the ATEX-certified Type 663 is operating in explosion... -
Page 8: Mechanical Data
HAUBER-Elektronik GmbH Mechanical Data Housing Material: Stainless Steel V2A; material no: 1.4305 M12-connector material: CuZn (brass), nickel plated Fastening: Inner hexagon screw, M8 x 20 mm Securing: The sensor must be earthed via the M8 fastening (see chapt.15). Weight: ca. 500 g... -
Page 9: Connections
6: pink 7: blue 8: red Fig. 8: Connection Plan Type 663 Note: Displayed in the Connection Plan is the Alarm Condition resp. Currentless Condition! The Relays 1 and 2 are dropped out. (Further informations on operating states, chap. 12) -
Page 10: Functional Description
HAUBER-Elektronik GmbH Functional Description The housing cover may only be unscrewed, if the Type 663 is either seperated from the mains or no explosion endangered atmosphere exists. Otherwise danger of explosion because of sparkling, when the ATEX-certified Type 663 is operating in explosion endangered areas! The Typ 663 consistes of two channels LIM1 and LIM2 independent from each other. -
Page 11: Limit Value Adjustment
Limit Value: 16 mm/s Self Check Applying a rectangular signal (24 V DC / 0,5 Hz) at pin 4, the Typ 663 overall functionality can be checked. The test voltage simulates an vibration amplitude, that exceeds the maximum Limit Value step. -
Page 12: Mounting And Demounting
Seperated plug and socket devices always have to be disconnected from the mains! Otherwise danger of explosion because of sparkling, when operating ATEX-certified Types 663 in explosion endangered areas! The control housing must be earthed via ist fastening - i. e. via machine earth or via a seperate earth wire (PE)! 15.1... -
Page 13: Zone-2-22 - Fastening Safety Clip / Protective Cover
HAUBER-Elektronik GmbH 15.2 Zone-2-22 - Fastening Safety Clip / Protective Cover The operation of variant Zone-2-22 is not permitted without the safety clip, to avoid accidently disconnecting the plug-in connection! Otherwise danger of explosion because of sparkling, when operating in explosion endangered areas! Fastening Safety Clip Plug in the connection cable socket into the M12-plug completely. -
Page 14: Installation And Start-Up
Prior to repair and cleaning works the Type 663 has to be seperated from the mains! Seperated plug and socket devices always have to stay disconnected from the mains! -
Page 15: Responsibility For The Safe Operation / Disclaimer
HAUBER-Elektronik GmbH Responsibility for the Safe Operation / Disclaimer The correct layout of the electrical plant under conditions of explosion protection, as well as the correct switch on procedure, is the sole responsibility of the user of the plant. The current valid explosion protection rules and security regulations must be adhered to and must be under given circumstances checked by a competent person.
