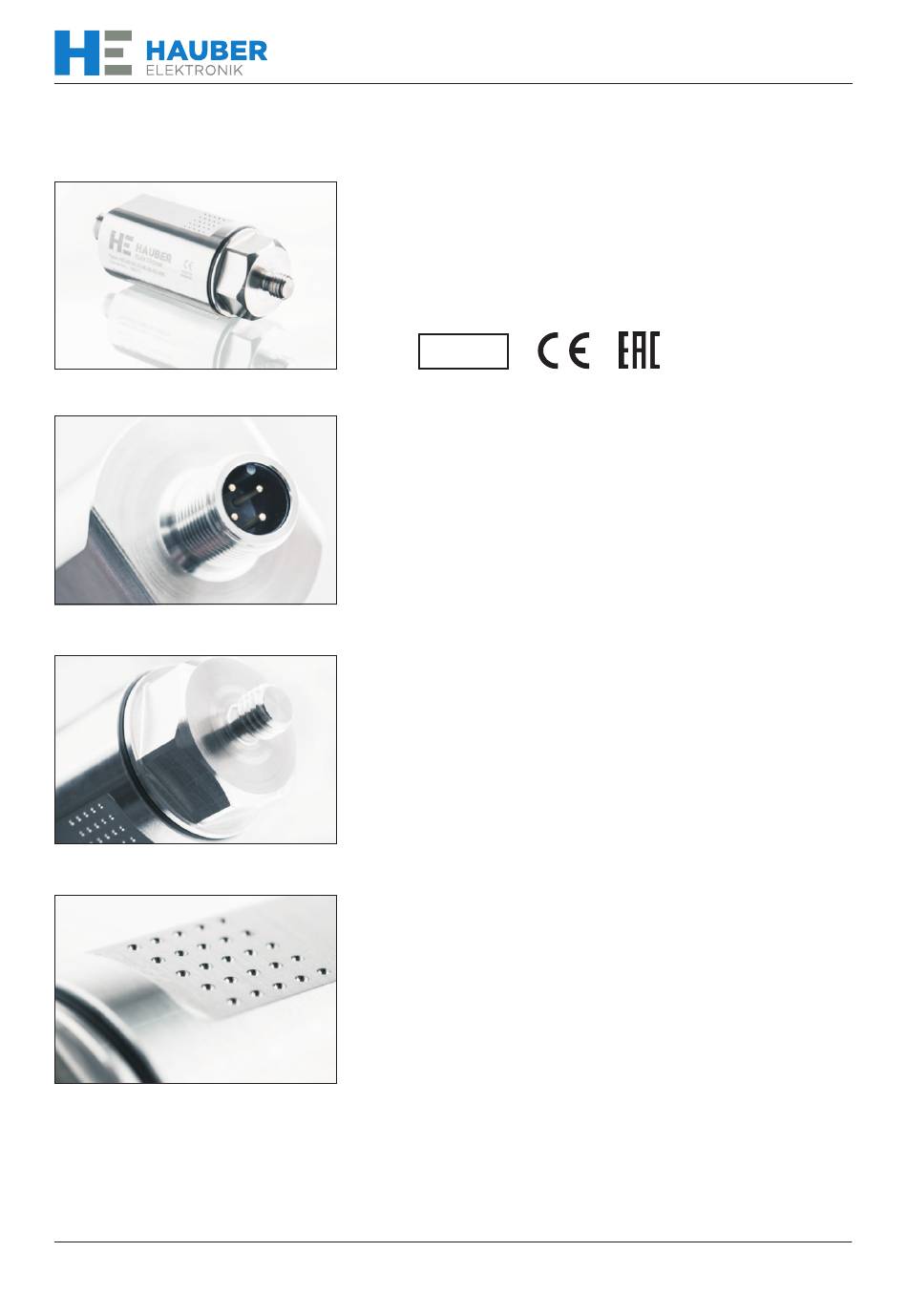

Vibration Control
Type HE100
MADE IN
GERMANY
Vibration Velocity (mm/s, rms)
¨
Analog Current Output: 4...20 mA
¨
Frequency Range: 10 Hz...1000 Hz
¨
Please note:
Work on the following product variants, to
be soon available, is already in process.
ATEX Zone 1 / 21
¨
ATEX Zone 2 / 22
¨
Respectively, an updated & completed
manual edition will simultaneously be
available.
1 Hz...1000 Hz
Manual
English
Advertisement
Table of Contents
Related Manuals for Hauber HE100
Summary of Contents for Hauber HE100
- Page 1 Vibration Control Type HE100 MADE IN GERMANY Vibration Velocity (mm/s, rms) ¨ Analog Current Output: 4...20 mA ¨ Frequency Range: 10 Hz...1000 Hz ¨ 1 Hz...1000 Hz Please note: Work on the following product variants, to be soon available, is already in process.
- Page 2 HAUBER-Elektronik GmbH Instruction Manual Vibration Control Type HE100 Standard Edition: 27.07.2016 Attention! Before Start-Up Procedure the Instruction Manual must be read and understood! Should any question arise, please contact: HAUBER-Elektronik GmbH Fabrikstraße 6 D-72622 Nürtingen Germany Phone: +49 (0) 7022 / 21750-0...
-
Page 3: Table Of Contents
HAUBER-Elektronik GmbH Content 1 Safety Information ................. 4 2 Instruction Manual Scope ..............5 3 The Vibration Control Type HE100 ............5 4 Intended Use ..................5 5 Documents and Certificates ..............5 6 Application Fields .................. 5 7 Delivery Contents .................. 6 8 Electrical Data .................. -
Page 4: Safety Information
HAUBER-Elektronik GmbH Safety Information In General The safety instructions serve the protection of persons and things from damage and danger that arise from not intended use and further misuse of products especially in explosion endangered areas. Therefore read the instruction manual carefully, before working with or starting-up the product. -
Page 5: Instruction Manual Scope
HAUBER-Elektronik GmbH Instruction Manual Scope The present instruction manual of the Vibration Control Type HE100 is presently applicable for the following variants: Standard. The Vibration control Type HE100 The Vibration control Type HE100 is applied for the measurement of machines absolute bearing vibration, referring to DIN ISO 10816. -
Page 6: Delivery Contents
HAUBER-Elektronik GmbH Delivery Contents Variant Delivery Contents Standard • Vibration Sensor Type HE100 • Factory Calibration Certificate / Test Report • Instruction Manual Available • Evaluation Devices Types 651, 652, 656 Supplies • Handheld Meter Type 641 • Various Adapters, e.g. M8 -> M10 •... -
Page 7: Electrical Data
Valid Operating Temperature Range of following Variant Standard Ambient Temperature -40 °C ... +125 °C Measuring Head- Temperature -40 °C ... +125 °C (at the Fastening) Operating Range of Vibration Control Type HE100 Reading example: Frequency Max. measurable (Hz) Vibration Velocity Operating Range... - Page 8 • 1 Hz. . . 10 Hz laser sensor • 10 Hz. . . 1200 Hz acceleration sensor Frequency Response Frequency [Hz] Calibration The calibration of Vibration Control Type HE100 is performed at 90% of measuring range The calibration frequency is 159.2 Hz.
-
Page 9: Mechanical Data
HAUBER-Elektronik GmbH Mechanical Data Housing Material: Stainless Steel V2A; material no: 1.4305 Note: You can find a variety of materials, under the Cap.15: Encoding. Fastening: Wrench Size: 24 (hexagon), M8 x 8 mm, Threat pitch: 1,25 mm Note: You can find a variety of materials, under the Cap.15: Encoding. -
Page 10: Connections
HAUBER-Elektronik GmbH Connections Standard Plug, M12, 4-pole Pin 1: 10...30 V DC Pin 3: 4…20 mA Pin 2: NC Pin 4: NC NC: Not Connected Connection Plan for all Variants Pin 1 = brown 10...30 V DC HE100 Pin 3 = blue... -
Page 11: Mounting And Demounting
HAUBER-Elektronik GmbH Mounting and Dismounting Mounting and Dismounting works, at and with, the control may only be executed, by an authorized expert, familiar with the safety instructions, for handling electrical components. The sensor housing must be earthed via the fastening - i. e. via machine earth or via a seperate earth wire (PE)! 11.1... -
Page 12: Installation And Start-Up
Defective connection cables immediately have to be replaced! A defective control has to be changed completely! Note: The Type HE100 and its variants are maintenance free! Error Table Error Cause... -
Page 13: Grounding Concepts To Avoid Ground Loops
HAUBER-Elektronik GmbH Grounding Concepts to avoid Ground Loops Ground loops are among the most frequent problems for measurement setups with sensitive sensor technology. They arise through unwanted potential differences inside the current circuit between sensor and evaluation device. As countermeasure we recommend our Standard- Grounding Concept or, according to application, our Alternative-Grounding Concept. -
Page 14: Encoding Type He100
HAUBER-Elektronik GmbH Encoding Type HE100 HE100 HE-Serie 100 = Transmitter 4...20 mA ~ mm/s rms ATEX 00 = non ATEX Measuring Range: 16 = 16 mm/s rms (Standard) 32 = 32 mm/s rms 64 = 64 mm/s rms Frequency Range: 00 = 10...1000 Hz (Standard)
