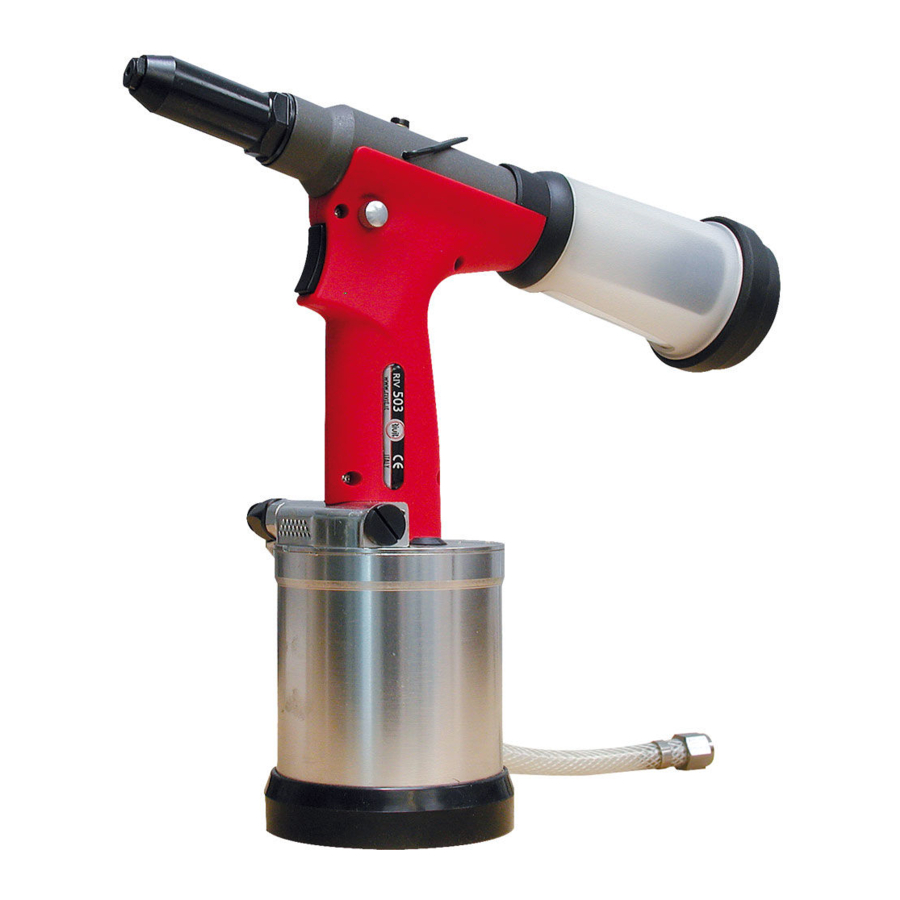

RIV 503
CODICE | CODE | CODE 4035700
MANUALE ISTRUZIONI
IT
RIVETTATRICE OLEOPNEUMATICA CON
TRATTENUTA DEL RIVETTO E RECUPERO
DEL CHIODO TRANCIATO CON ARIA
APERTA PER RIVETTI IN TUTTE LE
LEGHE DAL Ø 2,4 AL Ø 4,8 SOLO PER
ALLUMINIO Ø 6,0
INSTRUCTION MANUAL
EN
IT
HYDRO-PNEUMATIC TOOL WITH
HOLDING OF THE RIVET AND NAIL
RECOVERY WITH OPEN AIR FOR BLIND
RIVETS IN ALL MATERIALS FROM Ø 2,4 TO
4,8 UP TO Ø 6,0 FOR ALUMINIUM ONLY
MANUEL D'INSTRUCTIONS
FR
IT
RIVETEUSE OLEOPNEUMATIQUE
L'AIR OUVERT POUR LES RIVETS ALU/
ACIER/INOX DE Ø 2,4 A Ø 4,8. POUR
ALUMINIUM SEULEMENT Ø 6,0
ITA
ENG
FASTENERS & TOOLS
Advertisement
Table of Contents
Related Manuals for RIVIT RIV 503
Summary of Contents for RIVIT RIV 503
- Page 1 RIV 503 CODICE | CODE | CODE 4035700 MANUALE ISTRUZIONI RIVETTATRICE OLEOPNEUMATICA CON TRATTENUTA DEL RIVETTO E RECUPERO DEL CHIODO TRANCIATO CON ARIA APERTA PER RIVETTI IN TUTTE LE LEGHE DAL Ø 2,4 AL Ø 4,8 SOLO PER ALLUMINIO Ø 6,0...
-
Page 2: Table Of Contents
RIV 503 INDEX WARRANTY ............................16 TECHNICAL DATA ..........................17 ACCESSORIES SUPPLIED ........................18 ACCESSORIES ON REQUEST ......................19 SAFETY MEASURES ..........................20 OPERATING INSTRUCTIONS .......................20 SIZE CHANGING AND MAINTENANCE ....................21 OIL TOPPING UP ..........................22 ELIMINATION OF THE TOOL ........................22 LIST OF SPARE PARTS .........................23... -
Page 3: Warranty
Rivit S.r.l. assumes responsibilities only if the tool is originally defective, but declines all forms of re- sponsibility if the user fails to follow the given instructions. -
Page 4: Technical Data
RIV 503 TECHNICAL DATA Air pressure 6 bar Air consumption per stroke 4,35 litri Stroke 20 mm Force 10.900 N Weight 1,546 Kg Vibration < 2,5 m/s Noise level 78 dB (A) In case of assistance please specify the serial... -
Page 5: Accessories Supplied
RIV 503 ACCESSORIES SUPPLIED PHOTO CODE QUANTITY ACCESSORIES SUPPLIED 41990 Nosepiece Ø 2,4 41991 Nosepiece Ø 3,2 41992 Nosepiece Ø 4,0 41691 Nosepiece Ø 4.8 (on head) 40417 Nosepiece Ø 6,0 for aluminium 25248 Nosepiece Ø 4,8 3/16 for Monriv rivet... -
Page 6: Accessories On Request
RIV 503 ACCESSORIES ON REQUEST Kit 503 - Extension 100 and 200 mm. Ø 23 REF. CODE QUANTITY DESCRIPTION 42043 Kit 503 - Extension 100 mm 42024 Extended sleeve 100 mm 41993 Adaptor x internal extension x 100 mm Ø 23 REF. -
Page 7: Safety Measures
• Any kind of modifi cation made on the riveting tool and its equipment by the customer itself, will be done under the fully responsibility of the customer. In this case, Rivit srl declines any responsibility. • The riveting tool must be always kept in safety conditions and must be revised at regulkar intervals by expert and authorized workers, following the maintenance producers of Rivit srl. -
Page 8: Size Changing And Maintenance
RIV 503 Knob for suction adjusting: to adjust the air suction rotate For instructions the knob read label The container must not be disassambled because it collects the mandrel SIZE CHANGING AND MAINTENANCE Size changing For changing the size of nosepiece, use the 12 mm spanner (equipped). -
Page 9: Oil Topping Up
RIV 503 Oil topping up OIL TOPPING UP The topping up of the oil is necessary when occurs a power loss of the riveting tool or after a long period of use. Proceed as per the following instructions: • Disconnect the air supply from the tool and keep the tool in a vertical position. -
Page 10: List Of Spare Parts
RIV 503 LIST OF SPARE PARTS 23 | 40 REV | 02... - Page 11 RIV 503 REF. CODE QUANTITY DESCRIPTION 41692 O-ring 41337 1 • Nosepiece holder 41721 O-ring 41338 1 • Cone holding jaws 12501 3 • • Jaws 41392 1 • • Jaws opener 41340 1 • • Jaws return spring 41722...
- Page 12 RIV 503 43152 Air valve body 41376 1 • • Air valve ring 41377 2 • • O-ring for air valve piston 41378 1 • Air valve base 43115 Connector 42254 O-ring 43389 Connector 42255 O-ring 42940 1 • Rotating connector + air hose...
- Page 13 RIV 503 Kit 503 - Kit nail collector REF. CODE QUANTITY DESCRIPTION 42042 1 • Nail collector kit 42253 O-ring 41359 Nail collector lid 41360 Nail collector body 41729 Silencer 41733 Collector lock 41730 Silencer 41734 Collector cap • Recomended spare parts Kit 503 - Kit pneumatic piston REF.
