EASYDRAPE
MAKING A DOME

Advertisement

loading
Need help?

Need help?

Do you have a question about the EasyDrape and is the answer not in the manual?

Questions and answers

Related Manuals for ShowTex EasyDrape

Summary of Contents for ShowTex EasyDrape

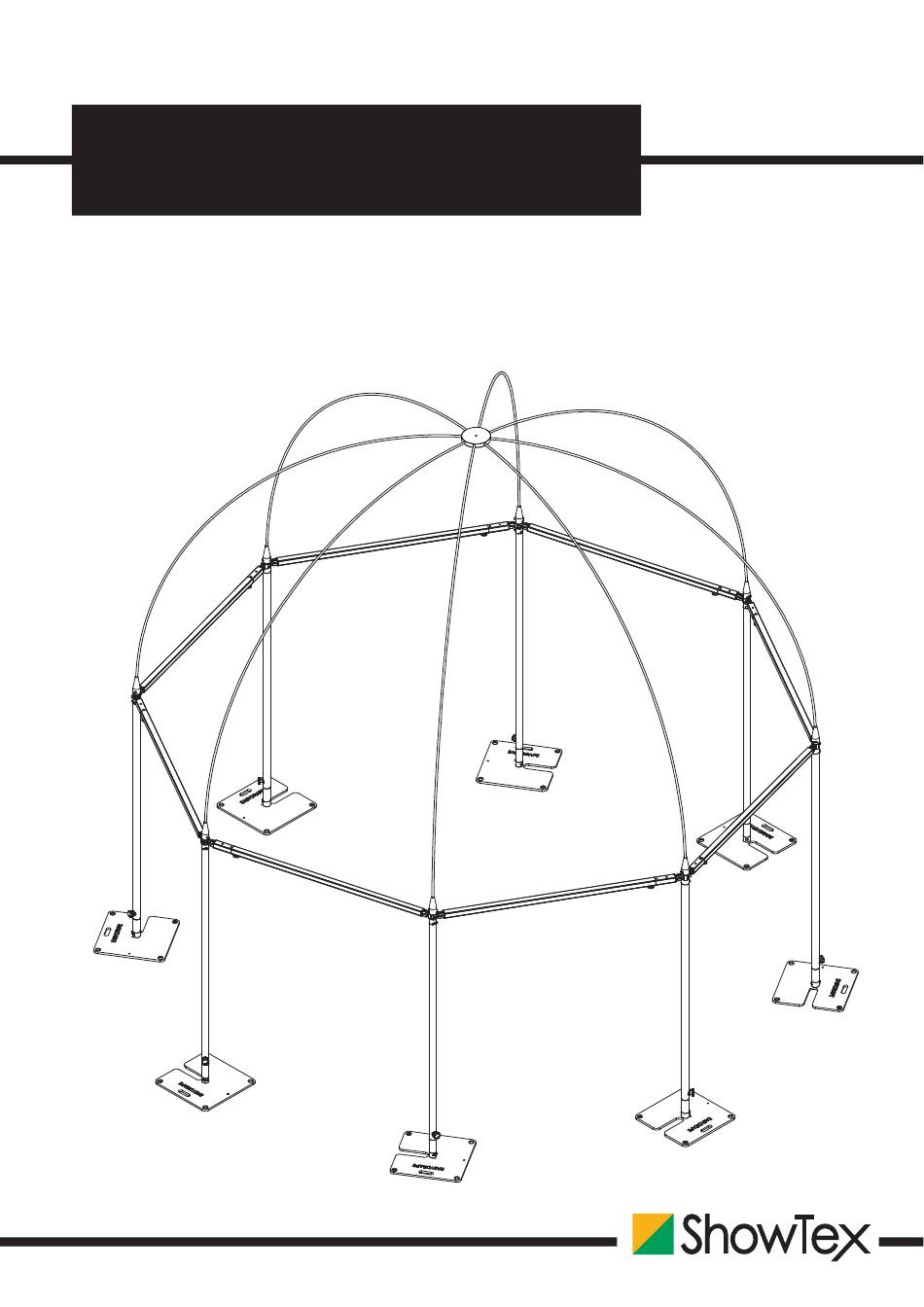

  • Page 1 EASYDRAPE MAKING A DOME...
  • Page 2 COMPONENTS Create unlimited EasyDrape con gurations using these di erent parts. EasyDrape Installation Manual...
  • Page 3 ASSEMBLY Attach the base plate connectors to the base plates and position eight EasyDrape base plates at the desired distance apart. When positioning the base plate connectors in the base plates, make sure the two holes in the sides of the connector are lined up in the same direction as the small markings in the base plate.
  • Page 4 Attach the Uprights to the plates and the four way adaptor piece to the Uprights Hammer the pin into the larger of the two holes in the upright. [tooltip] use the EasyDrape Tool to hammer in the pins EasyDrape Installation Manual...
  • Page 5 ASSEMBLY Secure the four way adaptor pieces and the Uprights Use a safety R-spring to secure the Uprights to the plates and the base plate connectors to the Uprights. EasyDrape Installation Manual...
  • Page 6 Attach the horizontal drape support to the four way adaptor piece of each Upright Hinges are tted to both ends of the horizontal drape support thus enabling the end-user to assemble one side of the EasyDrape by him/herself while the other side rests on the oor. [slide]...
  • Page 7 ASSEMBLY Extend the EasyDrape assembly horizontally to the desired width Don’t forget to loosen the screw when extending the drape support. EasyDrape Installation Manual...
  • Page 8 ASSEMBLY Attach a Half Conical Coupler and a Fibre Rod Adaptor to all the Uprights. Use the EasyDrape Tool to screw the pin through the coupler into the four way adaptor piece. [tooltip] use the EasyDrape Tool to screw the pin in...
  • Page 9 ASSEMBLY Attach a Fibre Rod Adaptor to the Uprights. Use the EasyDrape Tool to hammer the pin into the larger of the two holes in the adaptor. Use a safety R-spring to secure the Fibre Rod Adaptor to the Uprights.
  • Page 10 ASSEMBLY [10] One by one insert the Fibre Rods into the EasyDrape Fibre Disk. Position the Fibres on top of the horizontal drape supports to attach your fabric it. EasyDrape Installation Manual...
  • Page 11 ASSEMBLY [11] Two by two, push the opposed Fibre Rods to the middle of the dome, bending them upwards. And connect them to aFibre Rod Adaptor. PUSH UP & ATTACH EasyDrape Installation Manual...

  • Page 12: Troubleshooting

    TROUBLE SHOOTING • For more technical assistance please contact your local ShowTex office. EasyDrape Installation Manual...
