Summary of Contents for ShowTex KABUKI 30
-

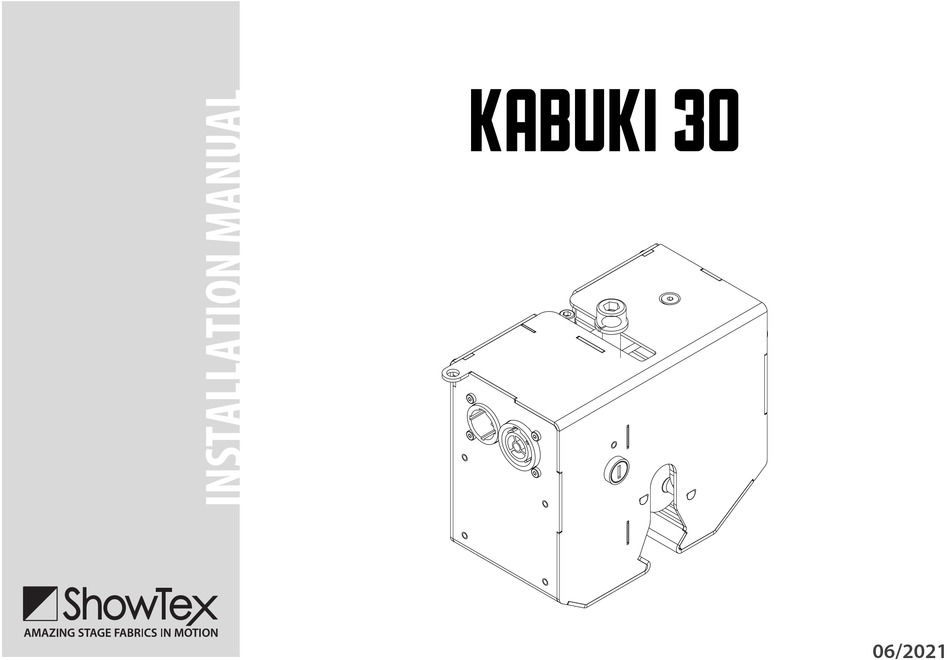

Page 1: No Part Of This Publication May Be Duplicated Or Edited In Any Form Or Disclaimer & Copyright
KABUKI 30 06/2021... -
Page 2: Table Of Contents
Safety instructions ..................................3 Max load & distance ................................4 ShowTex NV and its employees are fully aware of their task to provide a reliable edition Technical specifications ................................5 of this document. Nevertheless they can accept no liability for (the direct or indirect Components .................................... -
Page 3: Intro
Thank you for purchasing a ShowTex product. Only use ShowTex components for this product (control units, cables,…) Kabuki 30 must be installed with appropriate hook clamp and safety hinge cable. If not, the safety of environment and people is compromised Please take a moment to read this manual before installing or starting to use your new curtain track system. -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS COMPONENTS Power Cord - True1 / Open - 2m The following components are parts of the Kabuki 30 system. Article code Colour For more technical information, please refer to the technical datasheet. 8145 0912 0027 Black LEGEND Info Weight Weight per metre. -
Page 5: Assembled Kabuki 30
ASSEMBLED KABUKI 30 FRONT, BACK, TOP AND BOTTOM PLAN VIEW Bottom plan view Front view Back view Top view SHOWTEX INSTALLATION MANUAL KABUKI 30... -
Page 6: Side And Exploded View
SIDE AND EXPLODED VIEW SHOWTEX INSTALLATION MANUAL KABUKI 30... -
Page 7: Installation
INSTALLATION This chapter provides all required information and steps necessary for installing a Kabuki 30 system. Note that a certain technical knowledge and experience are required to understand this guide and install this produc BE SURE TO CHECK THE “HOW TO …” CHAPTER FOR CORRECT INSTALLATION OF THE SYSTEM. -
Page 8: How To
Always check that screw for fixing hook clamp or any other fixture is correctly tightened. Attach the unit to to a fix point (truss,…) with the safety hinge cable. In case of fixing on a solid surface, make sure that fixing bolt is 10mm length (see below). SOLID SURFACE 10mm SHOWTEX INSTALLATION MANUAL KABUKI 30... -
Page 9: Connect The Kabuki And The Remote Control
CONNECT THE KABUKI AND THE REMOTE CONTROL Kabuki 30 Next Kabuki 30 IN OUT IN OUT PowerCON TRUE1 PowerCON TRUE1 PowerCON TRUE1 NAC3FX-W NAC3MX-W NAC3FX-W 3G1.5 3G1.5 Schuco main connector 230VAC - 0.5A 115VAC - 0.75A 3G1.5 3G1.5 Remote Unit Schuco main connector 230VAC - 0.5A... -
Page 10: Arm The Kabuki
Push up the excentric cylinder By doing Step 1, reload the lever Release the excentric cylinder After Step 3, the excentric cylinder must be able to move up freely, it is now ready to grip fabric or 6mm sashline. SHOWTEX INSTALLATION MANUAL KABUKI 30... -
Page 11: Grip The Fabric Or The Ribcord
1: Slide the fabric in the gripping system, make sure that no extra fabric or end of ribcord goes to far in the unit. 2: If the gripping system seems blocked (you can’t slide material), just manually release the system and re-arm. SASHLINE 6MM: RIBCORD 1&2MM: (Maximum angles of use) SHOWTEX INSTALLATION MANUAL KABUKI 30... -
Page 12: Release The Kabuki Manually
1: The magnet is permanent holding, the system won’t release if no power trigger is applied, manual release is then possibe. Pull down the lever shortly but strongly. 2: Make sure that re-arming is done correctly (excentric cylinder must be free to move). SHOWTEX INSTALLATION MANUAL KABUKI 30... -
Page 13: Care & Maintenance
CONTACT & SUPPORT Check that chaining units operates correctly Inspect state of electrical cables, change if necessary For more technical assistance, please contact your local ShowTex branch, the address Change ruber gripping sticker and contact information can be found on our website: * W = every week www.showtex.com...
