223
WELLS BLOOMFIELD, LLC
2 ERIK CIRCLE, P. O. Box 280 Verdi, NV 89439
telephone: 775-689-5703
fax: 775-689-5976
www.wellsbloomfield.com
OPERATION MANUAL
for
COUNTERTOP
CERAMIC
HOTPLATES
Models:
HC-100
HC-125
HC-225
Includes
INSTALLATION
USE & CARE

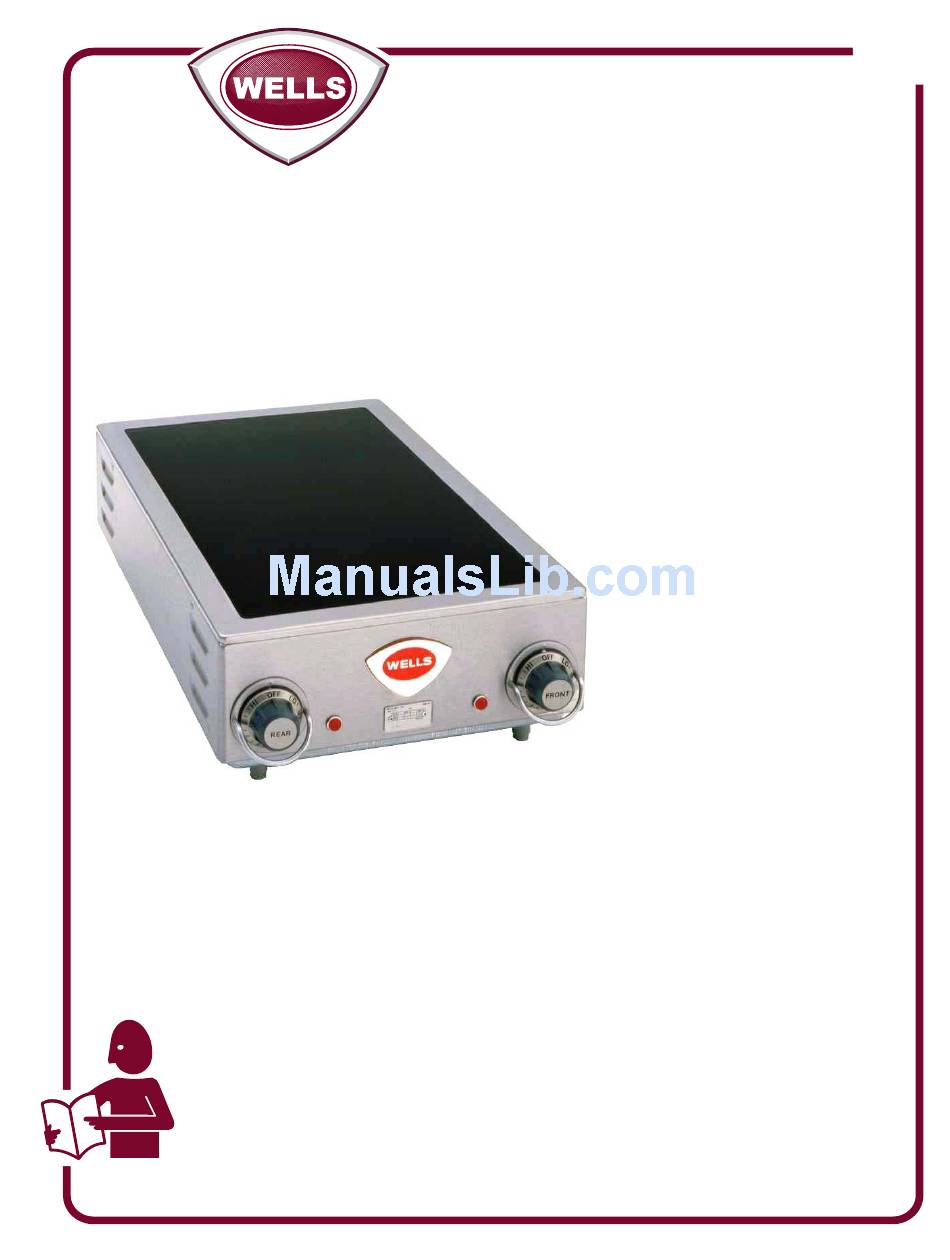

Model HC-225
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
PRINTED IN UNITED STATES OF AMERICA
303755
07
p/n
Rev. B
ECN-13372
M223
1026 cps
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bloomfield HC-100
Summary of Contents for Bloomfield HC-100
- Page 1 WELLS BLOOMFIELD, LLC 2 ERIK CIRCLE, P. O. Box 280 Verdi, NV 89439 telephone: 775-689-5703 fax: 775-689-5976 www.wellsbloomfield.com OPERATION MANUAL COUNTERTOP CERAMIC HOTPLATES Models: HC-100 HC-125 HC-225 Includes INSTALLATION USE & CARE Model HC-225 IMPORTANT: DO NOT DISCARD THIS MANUAL...
- Page 2 The prices charged by Wells Bloomfield for its products are SERVICE POLICY AND PROCEDURE GUIDE and ADDITIONAL WARRANTY EXCLUSIONS Resetting of safety thermostats, circuit breakers, over...
-
Page 3: Specifications
PRECAUTIONS & GENERAL INFORMATION INSTALLATION OPERATION CLEANING INSTRUCTIONS SPECIAL CARE INSTRUCTIONS TROUBLESHOOTING PARTS & SERVICE CUSTOMER SERVICE DATA MODEL ELEMENT WIDTH HC-100 Single 7” 12-5/8” HC-125 Single 9” 14-3/4” HC-225 Dual 9” 14-3/4” SPECIFICATIONS — EXPORT MODELS MODEL ELEMENT WIDTH Single 9”... -
Page 4: Features & Operating Controls
FEATURES & OPERATING CONTROLS HEATING ELEMENT (UNDER CERAMIC TOP) POWER CORD ADJUSTABLE LEGS Ceramic Top Heating Element Hot Surface Indicator Light Temperature Control Power I ndicator Light Name Plate Power Cord Adjustable Legs Provides smooth, low maintenance heating surface Provides heat for food preparation Note: elements located under ceramic top Glows whenever ceramic top is above 150ºF (66ºC) Infinite switch to control temperature of heating element... -
Page 5: Agency Approval Information
This appliance is intended for use in commercial establishments only. This appliance is intended to prepare food for human consumption. No other use is recommended or authorized by the manufacturer or its agents. Operators of this appliance must be familiar with the appliance use, limitations and associated restrictions. -
Page 6: Installation
INSTALLATION NOTE: DO NOT discard the carton or other packing materials until you have inspected the appliance for hidden damage and tested it for proper operation. Refer to SHIPPING DAMAGE CLAIM PROCEDURE on the inside front cover of this manual. CAUTION: ELECTRIC SHOCK HAZARD... -
Page 7: Operation
GENERAL OPERATIONAL NOTES Carefully read the description of the hotplate operation on the specification sheet. DO NOT attempt to perform any maintenance or service unless the hotplate is unplugged or disconnected from electrical power. DO unplug the hotplate from electrical power or turn the circuit breaker off before cleaning or servicing. -
Page 8: Cleaning Instructions
CLEANING INSTRUCTIONS CAUTION: ELECTRIC SHOCK HAZARD Unplug hotplate from electric power before cleaning. CAUTION: BURN HAZARD Allow hotplate to cool completely before cleaning. CAUTION: ELECTRIC SHOCK HAZARD Do not submerge hotplate in water. IMPORTANT: DO NOT spill or pour water into controls, control panel or wiring. -
Page 9: Special Care Instructions
DO NOT use the hotplate surface as a cutting board. DO NOT cook directly on the glass-ceramic surface. Check glass and ceramic cookware to verify suitability for use on hotplates. DO NOT drop cookware onto glass-ceramic cook surface. Carefully place heavy pots and skillets on glass-ceramic cook surface to avoid damage. -
Page 10: Troubleshooting
TROUBLESHOOTING SYMPTOM Hotplate won’t heat One or more sections won’t heat Hotplate not hot enough Hot surface indicator does not light, or stays on POSSIBLE CAUSE Not plugged in, damaged plug or cord or circuit breaker tripped Temperature control not on Damaged temperature control, element or other internal component Temperature control not set... -
Page 11: Customer Service Data
For factory authorized service, or to order factory authorized replacement parts, contact your Wells authorized service agency, or call: Wells Bloomfield, LLC 2 Erik Circle P. O. Box 280 Verdi, NV 89439 Service Parts Dept. phone: (775) 689-5707 fax:... - Page 12 Commercial Food Equipment Service Association Wells Bloomfield proudly supports CFESA Commercial Food Equipment Service Association SERVICE TRAINING - QUALITY SERVICE SERVICE TRAINING - QUALITY SERVICE Genuine Parts Protect - YOU - All - Ways CUSTOMER SATISFACTION CUSTOMER SATISFACTION WELLS BLOOMFIELD, LLC 2 ERIK CIRCLE, P.
