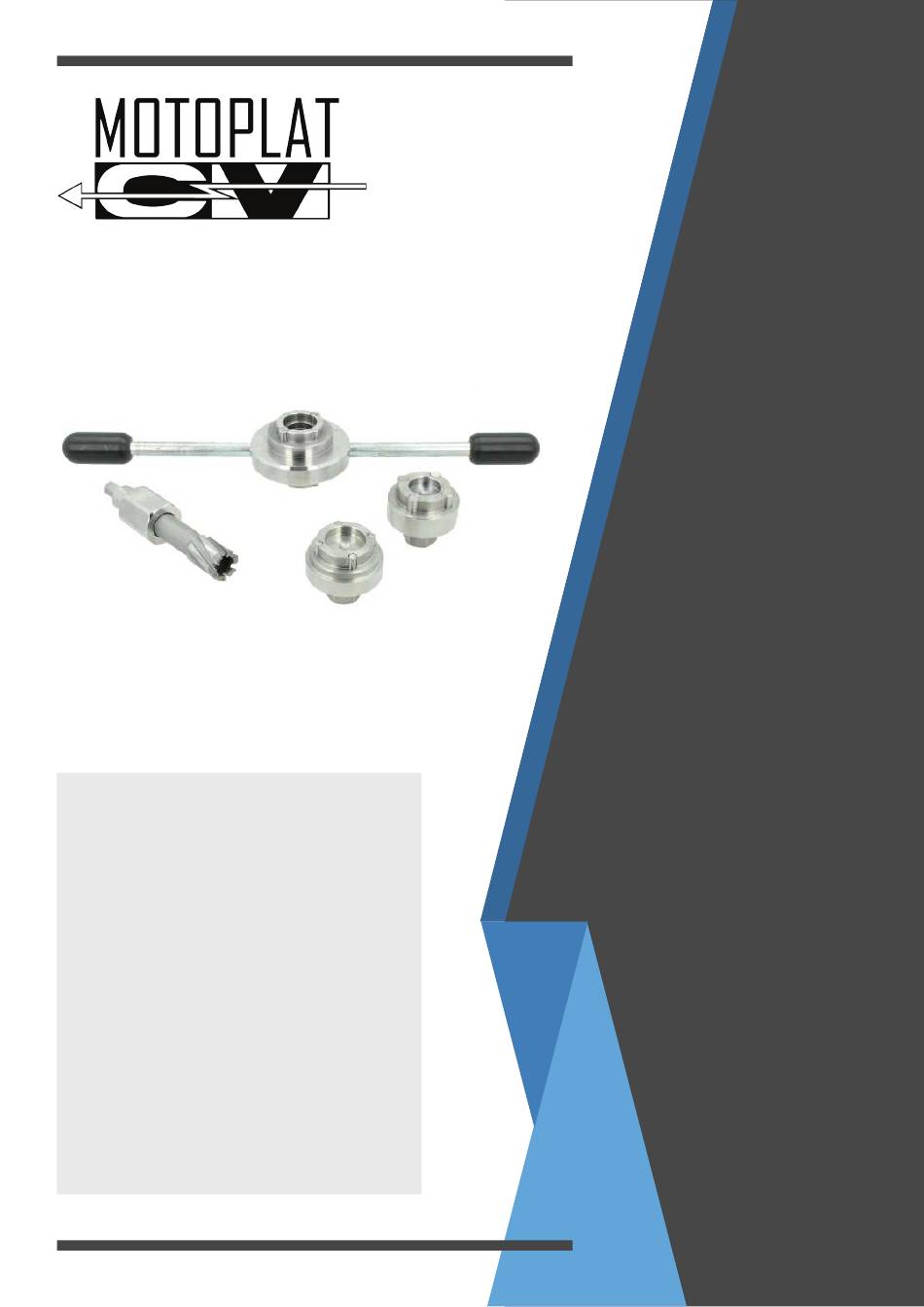

USER
MANUAL
VP-028
Pulley Removal Set
With the Motoplat pulley removal set,
welded pulleys of the Valeo ST-Series
alternators can easily be disassembled.
The cutting teeth of the end mill is
coated with polycrystalline diamond,
which withstands high abrasive wear and
makes the VP-028 last longer than other
tools.
ENGLISH
VERSION 2018
www.motoplat.nl
Advertisement
Table of Contents
Related Manuals for Motoplat VP-028
Summary of Contents for Motoplat VP-028
- Page 1 Valeo ST-Series alternators can easily be disassembled. The cutting teeth of the end mill is coated with polycrystalline diamond, which withstands high abrasive wear and makes the VP-028 last longer than other tools. ENGLISH VERSION 2018 www.motoplat.nl...
- Page 2 This tool should be stored/used in a weather protected area where heat, humidity or any other climate situation can not damage the tool. This tool should be stored/used on a level surface that is clear of debris and obstructions. - Motoplat® - Page 2...
- Page 3 Motoplat ® Index Index General Information Components Intructions Page 3...
- Page 4 Using the supplied fitting, the end mill can be connected to a standing drill to remove the welded surface on the pulley. The VP-028 also comes with two different fittings that can be placed on the two types of ST-pulleys. Page 4...

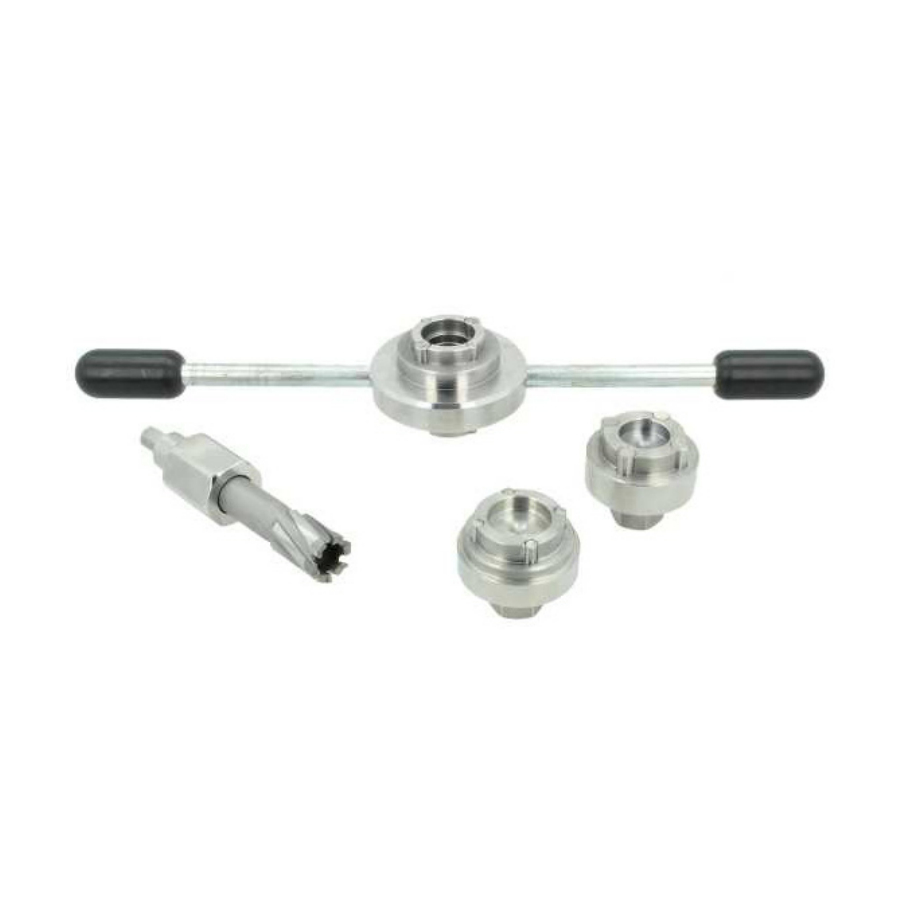

- Page 5 Motoplat ® Section 2 – Components 1 Pulley Removal Tool 2. Diamond Milling Cutter 3. Milling Cutter Holder 4A. Removal Socket Large 4B. Removal Socket Small Page 5...
- Page 6 Motoplat ® Section 3 – Intructions The Motoplat VP-028 pulley removal set has 2 sides to fit perfectly in the 2 types of welded pulleys: 1. Pulleys with large fittings: 2. Pulleys with small fittings: Before the tool is placed in the pulley of the alternator, please make sure the correct side is chosen.
- Page 7 Motoplat ® Place the diamond milling cutter (Fig.2) in the pulley removal tool (Fig.1). Place the milling cutter holder (Fig.3) on the diamond milling cutter (Fig.1) Tighten the 2 Allen key screws on the cutting mill holder firmly. The safest way to remove the weld in the pulley is too use a standing drill.
- Page 8 Contact Information MOTOPLAT CV Stichtse Kade 47c 1244NV ‘s-Graveland, The Netherlands + 31 (0)35 656 3180 info@motoplat.nl www.motoplat.nl www.motoplat.nl...
