WAGNER W 985 E Instructions

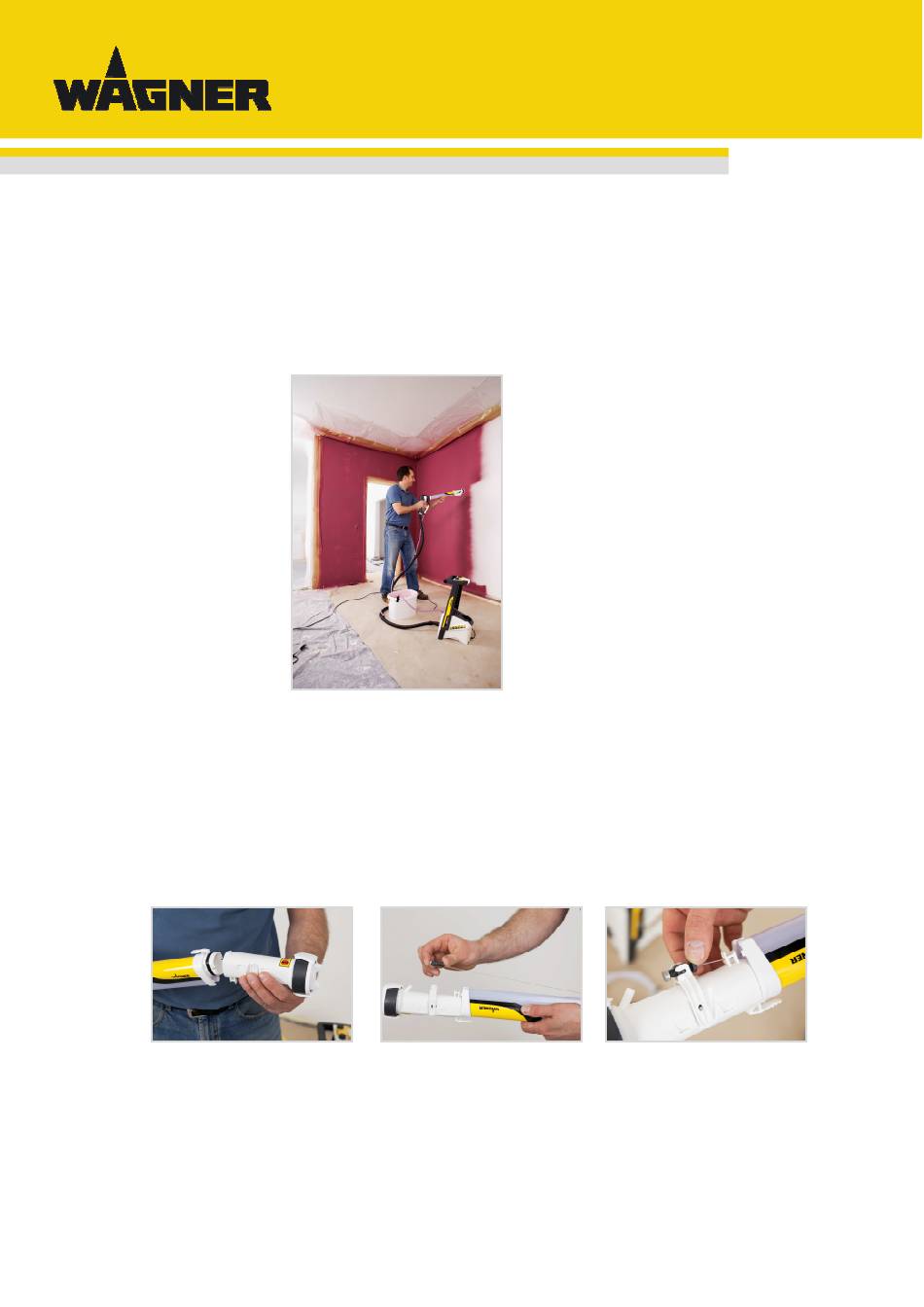

Instructions on how to spray walls with the W 985 E

With the HVLP fine-spraying WAGNER devices you will obtain especially smooth and even

surfaces. For example, you can use them to coat walls and ceilings. These instructions are

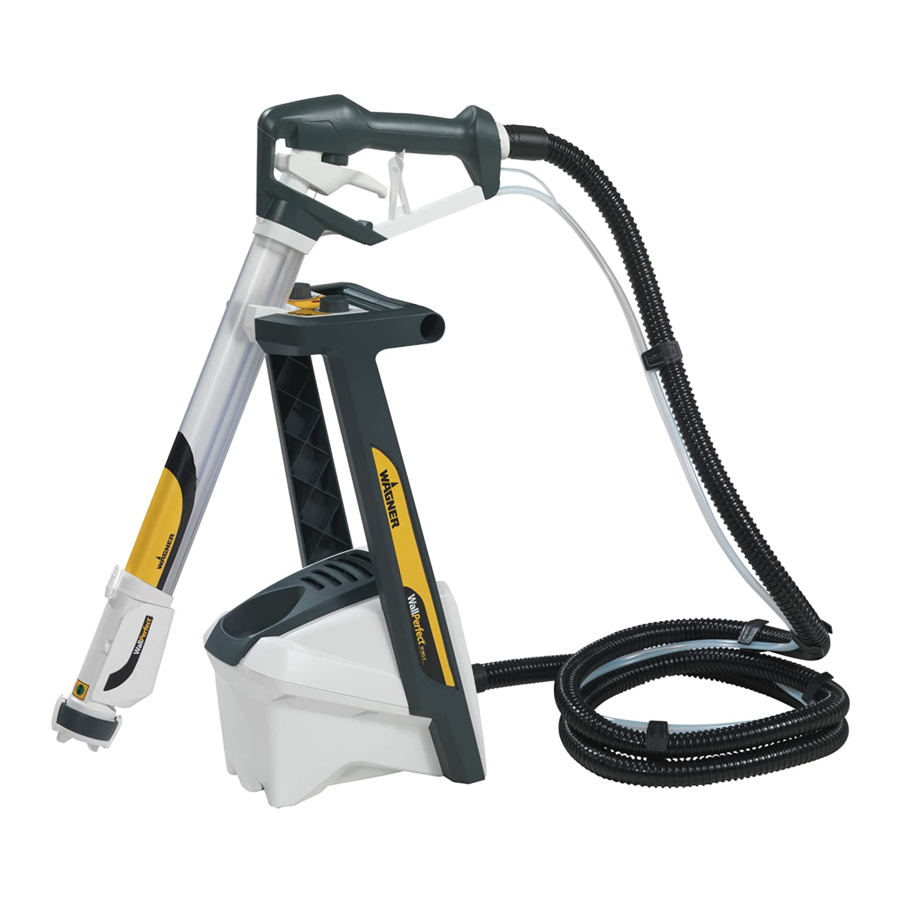

based on the WallPerfect W 985 E fine-spray system.

1. Clear the room and cover the floors and furniture. Use cardboard, cover fleece and/or

masking tape. Mask the doors and corners. Make sure the masking tape sticks well.

2. Connect up the spray lance and grip.

3. Connect the spray head to the end of the lance by clicking it into place.

4. Insert the pull-wire into the holding fixture and turn it until you have the right amount of

tension.

5. Press the paint hose into the front slot.

6. Make sure the entire length is taut from where it leaves the slot and then press it into the

groove.

Kontakt:

J. Wagner GmbH

Otto-Lilienthal-Str. 18

88677 Markdorf

T. +49 (0)75 44 - 5 05.0

F. +49 (0)75 44 - 5 05.200

1/3

Table of Contents

Do you have a question about the W 985 E and is the answer not in the manual?

Page 1 F. +49 (0)75 44 - 5 05.200 Instructions on how to spray walls with the W 985 E With the HVLP fine-spraying WAGNER devices you will obtain especially smooth and even surfaces. For example, you can use them to coat walls and ceilings. These instructions are based on the WallPerfect W 985 E fine-spray system.
Page 2 7. Insert the thin hose at the grip end. 8. Attach the bigger black hose to the grip. 9. The protective cap is affixed to the front of the lance. 10. The hoses also need to be attached to the device. 11.
Page 3 15. Now do a test spray on to a piece of cardboard or a test poster. 16. First of all spray the corners and edges with paint. Afterwards spray the surfaces making sure you keep to an even distance (approx. 10-20 centimetres) from the surface More instructions can be found at www.wagner-group.com/service.
