Summary of Contents for Russound WALTx-2

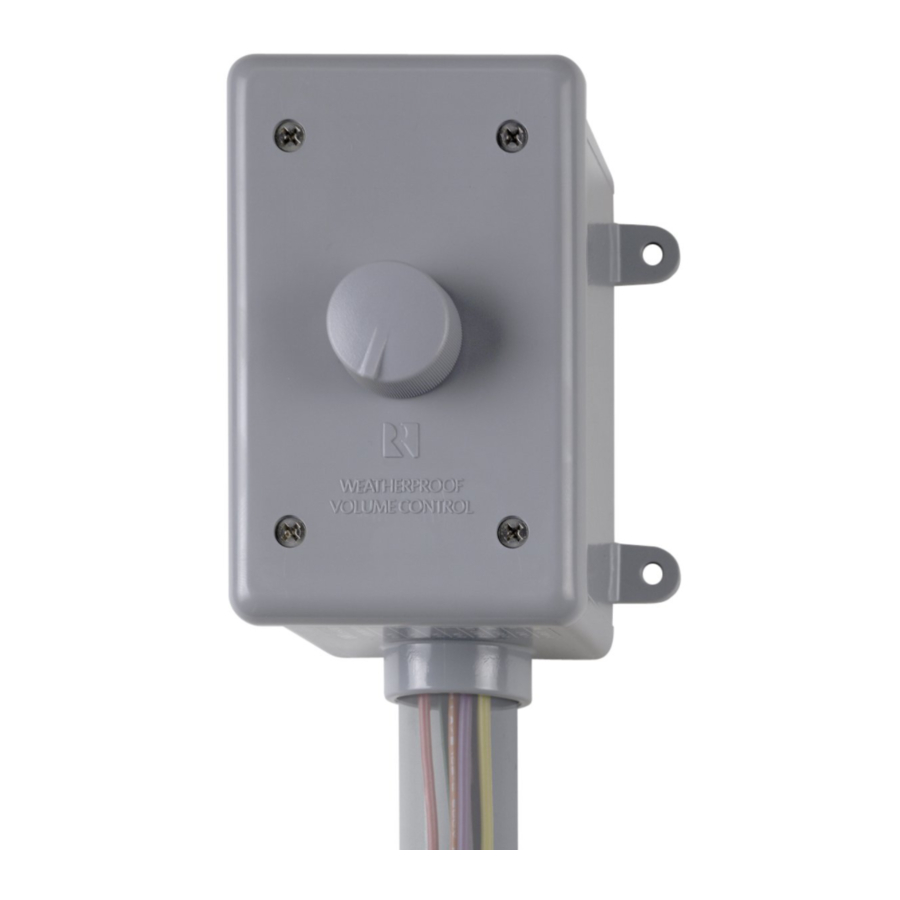

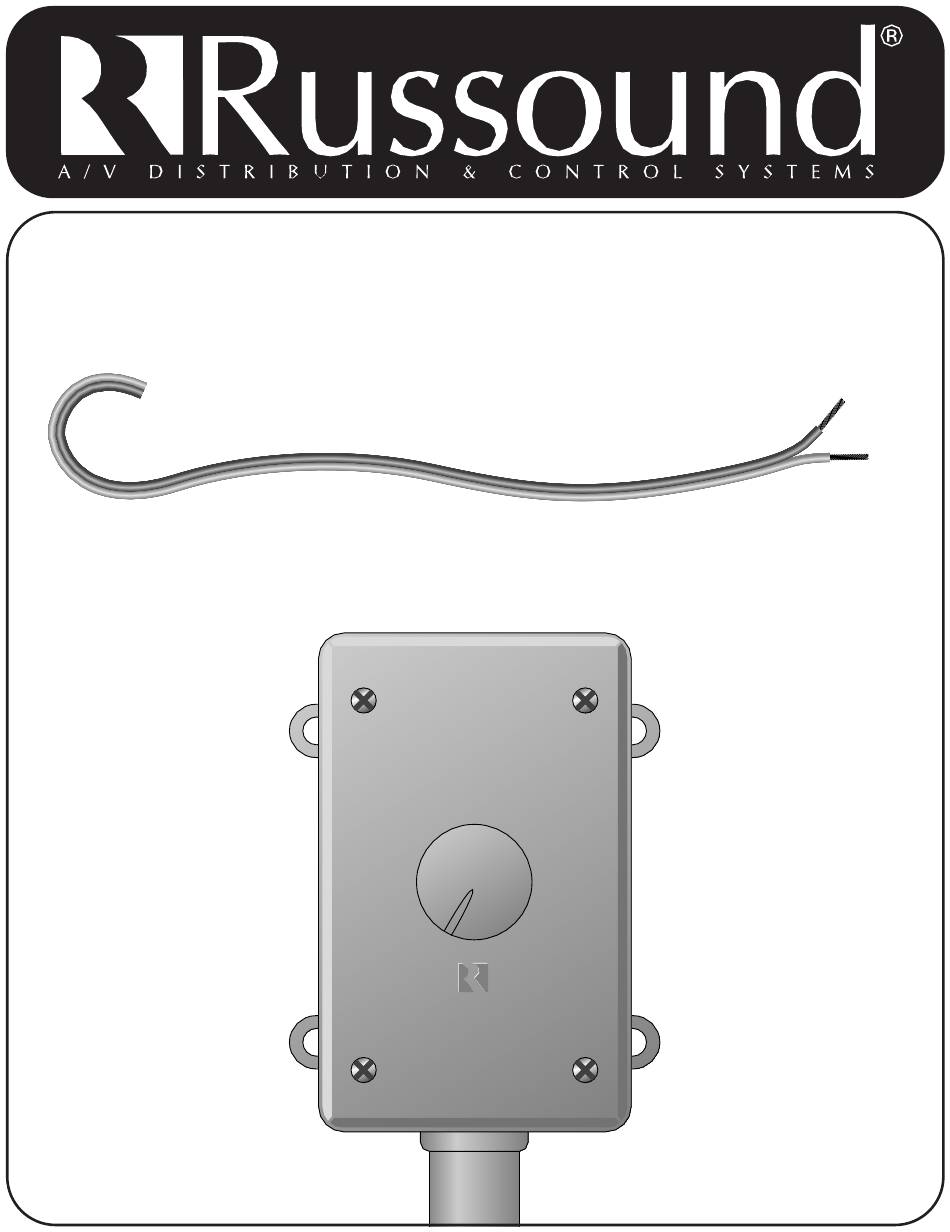

- Page 1 WALTx-2 Instruction Manual Weatherproof Volume Control WEATHERPROOF WEATHERPROOF VOLUME CONTROL VOLUME CONTROL...
- Page 2 3/4" PVC conduit. The WALTx-2 provides superior protection against moisture from rain, splash or sauna.
- Page 3 Determine the impedance for each pair of speakers connected to the amplifier by referring to its manual. Determine the total number of 4-ohm pairs of speakers. (Rows on charts) Determine the total number of 8-ohm pairs of speakers. (Columns on charts) Follow the appropriate row and column to determine jumper settings.
- Page 4 Once the jumper setting has been determined, set the jumpers to the appropriate positions, either 2X, 4X, or 8X, as shown in Fig. 2. Figure 2 Jumper Settings On Circuit Boards 1 X - 2 X - 8 X 1 X - 2 X - 8 X 2 X - 4 2 X - 4...
- Page 5 EZB Connecting Blocks The EZB-1 and EZB-2 connecting blocks are Russound accessories that simplify con- nections of multiple volume controls and speaker pairs. The EZB-1 is a neat, compact wiring device capable of connecting four volume controls to an amplifier's outputs.
-
Page 6: Volume Controls
Figure 3 AMP / Receiver TO OTHER VOLUME CONTROLS EZB-1 SPEAKERS SPEAKERS (OPTIONAL) SPEAKERS SPEAKERS TO OTHER VOLUME CONTROLS Input INPUT Output Speaker Pair... - Page 7 WALTx-2 Volume Control. This may cause malfunction if corrosion occurs. 6. If the WALTx-2 is to be mounted to a hard sur- face, such as an exterior wall, use four screws and appropriate mounting anchors to perma-...
- Page 8 If the amplifier is driven to this “clipping” state, it and/or the volume control may become damaged. 6. You can turn OFF the speakers by turning the knob on the WALTx-2 fully counterclockwise, or by pressing the corresponding ON/OFF button on your...
- Page 9 Figure 5 OB-6.1 Speakers WALTx-2 RECEIVER/AMPLIFIER WEATHERPROOF WEATHERPROOF VOLUME CONTROL VOLUME CONTROL 3/4” PVC UNDERGROUND CONDUIT 14-GAUGE SPEAKER WIRE...
- Page 10 Specifications Power rating /channel: 126 watts power handling, 42 watts RMS continuous Frequency Response: 20Hz - 20kHz, +1 / -0.5 dB at rated power Attenuation: 12 steps, including "Off" 43dB total attenuation Wire Size: Maximum wire size of 12 AWG Case: Weatherproof PVC plastic sealed case...
- Page 11 For this warranty to apply, the unit must be installed and used according to its written instructions. If service is necessary, it must be performed by Russound. The unit must be returned to Russound at the owner's expense and with prior written permission.
- Page 12 5 Forbes Rd. Newmarket, NH 03857, USA ☎ 603.659.5170 • Fax 603.659.5388 e-mail: tech@russound.com Come visit us at: 28-0085...
