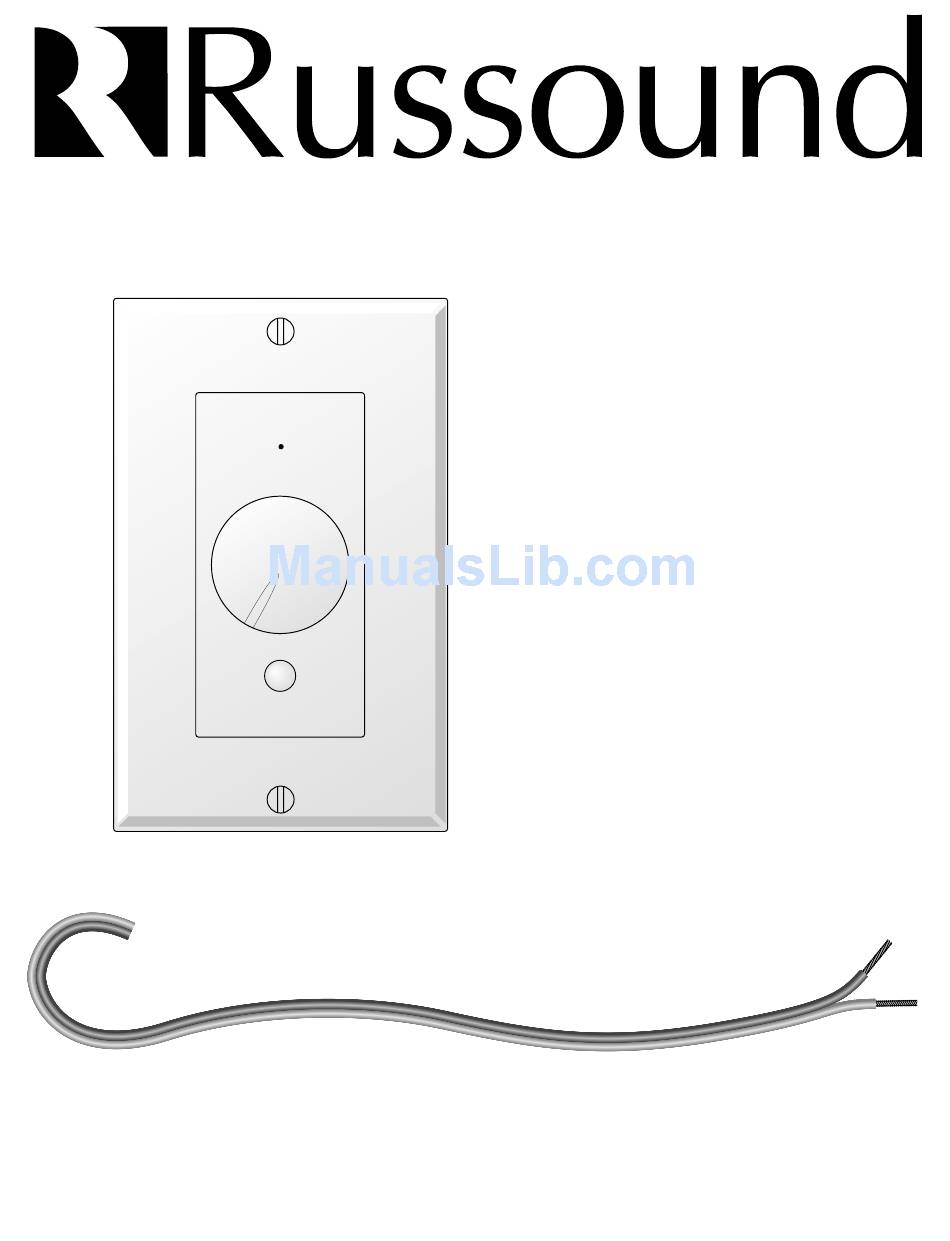

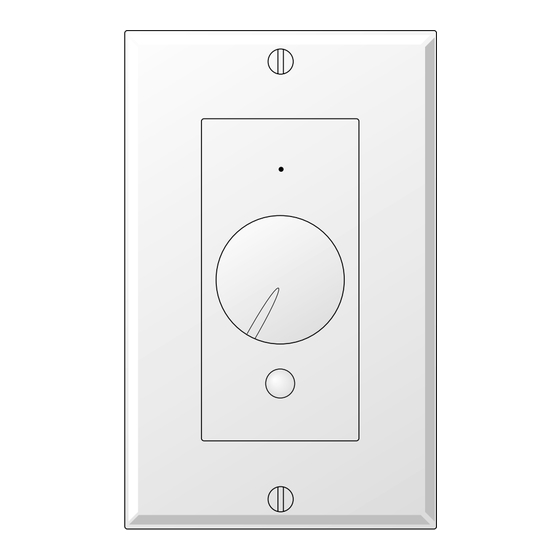

- Page 1 A / V D I S T R I B U T I O N & C O N T R O L S Y S T E M S Smart Select Volume Control Instruction Manual...
- Page 2 3.1 Amplifier / Speaker Connections (Refer to Figure 1) 1) Make sure that the amplifier or receiver that will be connected is turned Off. 2) Use only 18-12 AWG speaker cable constructed for in-wall use (refer to the Russound product catalog for rec- ommended speaker cables).
- Page 3 Taking the time to feed the excess wire out the back of the junction box will help you with the final assembly. If a junction box will be used, Russound recommends you use plastic junc- tion boxes, if possible.
- Page 4 2) Connect 12 Volt power to the Smart Select System (see Figure 2) NOTE: The 12 Volt power supply (Russound part No. 1201A) must be connected through the Russound Smart Select™ Power Interrupter Module (Figure 2). You may also power the SSVC system directly from the Smart AC™...
- Page 5 In these cases the repair will be made at the owner’s expense. To return for repairs, the unit must be shipped to Russound at the owner’s expense, along with a note explaining the nature of the service required.
