Summary of Contents for Russound ALTX

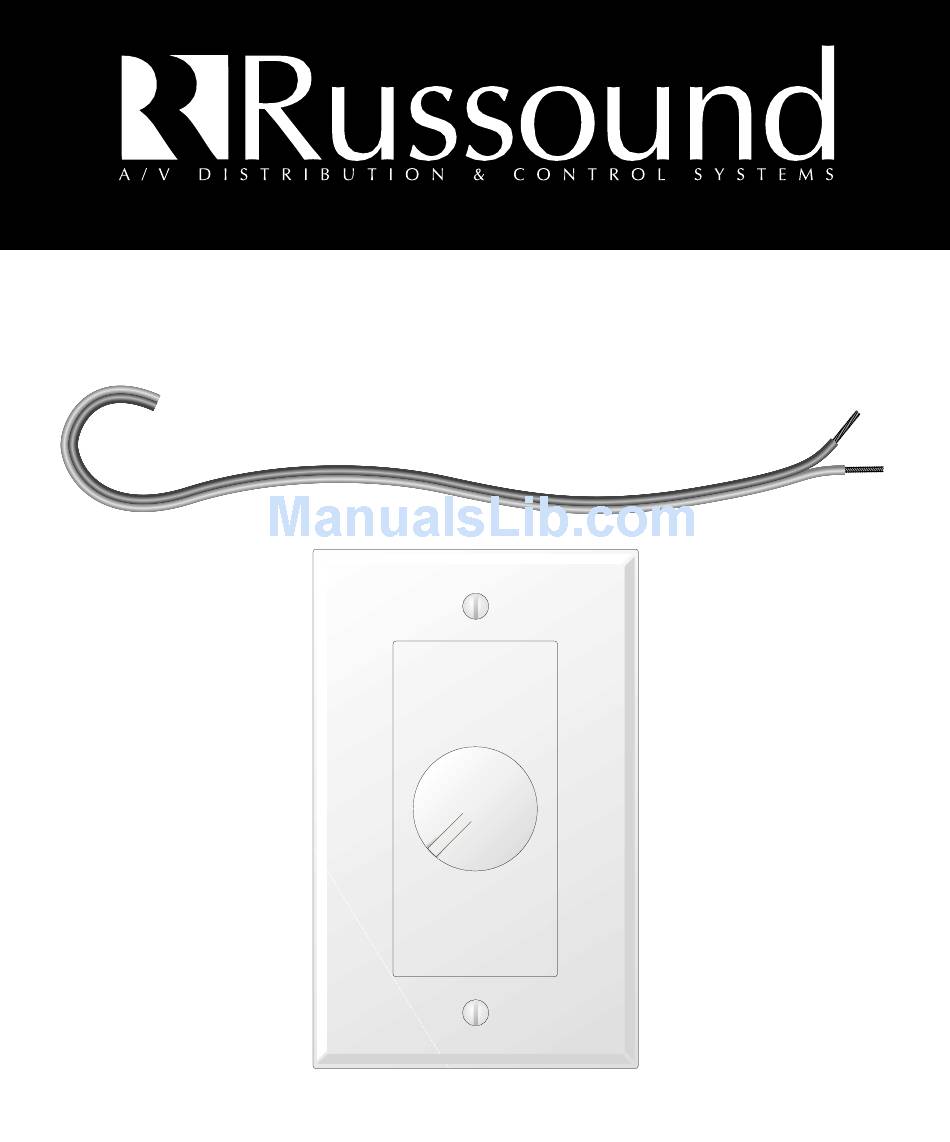

- Page 1 ALTx Volume Control Instruction Manual...
- Page 2 From the wallplate/faceplate to the back of the ALTx control, the mount- ing depth of the ALTx is 2 7/8”. You must use a minimum of a standard light switch plaster ring (p-ring) or a standard 20 cu. in. (or larger) electri-...
- Page 3 5. Adjust the volume of the speakers to the desired listening level using the ALTx. 6. You can turn off the speakers in each room by turning the knob on the ALTx completely counter-clockwise. IMPORTANT: If you are unsure of any of the installation procedures, the products...
- Page 4 ULTRAMATCH™ VOLUME CONTROLS Russound UltraMatch™ volume controls eliminate the need for a speaker selector. By determining the drive capa- bility of the amplifier with a few simple calculations, we can determine the number of speakers the system can safely operate.
- Page 5 UltraMatch™ volume control. EZB CONNECTING BLOCKS The EZB-1 and EZB-2 connecting blocks are Russound accessories that simplify connections of multiple volume controls and speaker pairs. The EZB-1 is a neat, compact wiring device capable of connecting four volume controls to an amplifier's outputs. The EZB-2 expands the EZB-1 to another 4 volume controls.
- Page 6 UltraMatch™ volume controls, it is recommended to wire all speakers to the A output. If you have any TO OTHER VOLUME questions contact Russound directly. CONTROLS 2. As outlined in step #1, connect the speaker wires to Input the connector labeled output.
- Page 7 During the warranty period, Russound, at its option, will replace or repair any defec- tive part and correct any defect in workmanship without charge for parts or labor. For this warranty to apply, the unit must be installed and used in accordance to its written instruc- tions.
- Page 8 5 Forbes Rd. Newmarket, NH 03857 603.659.5170 • Fax 603.659.5388 e-mail: tech@russound.com Come visit us at:...
