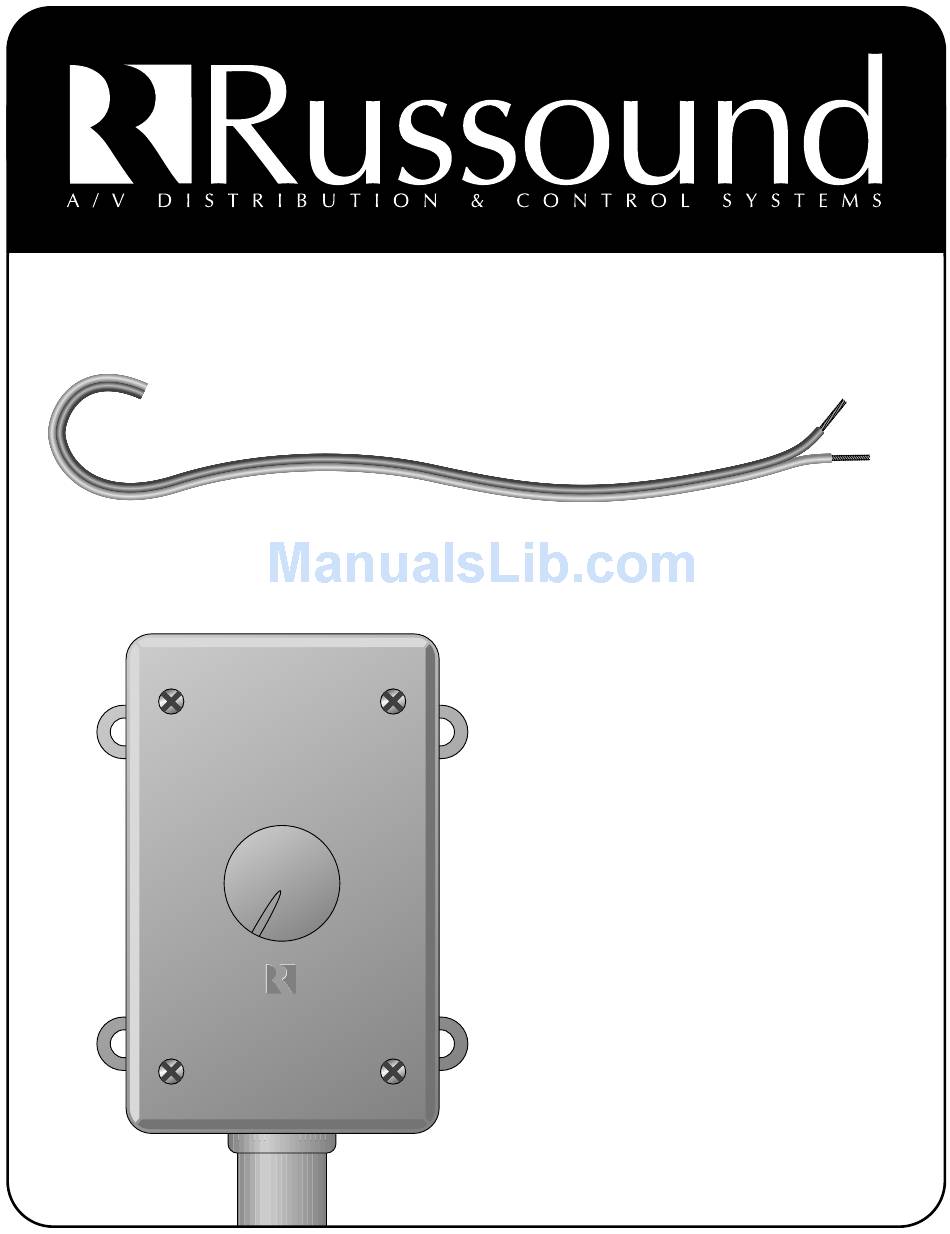

Instruction Manual
Weatherproof Volume Control
WALTx-2
WEATHERPROOF
WEATHERPROOF
VOLUME CONTROL
VOLUME CONTROL
Product Overview
The WALTx-2 Weather Proof
Volume Control is designed to
provide volume control for outdoor
or wet locations and can be
mounted on an exterior wall or
hard, flat surface, as well as directly
on a section of 3/4" PVC conduit.
The WALTx-2 provides superior
protection against moisture from
rain, splash or sauna.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Russound WALTX-2
Summary of Contents for Russound WALTX-2
- Page 1 WALTx-2 Instruction Manual Weatherproof Volume Control Product Overview The WALTx-2 Weather Proof Volume Control is designed to provide volume control for outdoor or wet locations and can be mounted on an exterior wall or hard, flat surface, as well as directly on a section of 3/4"...
- Page 2 The WALTx-2 connects between the speaker outputs of an amplifier or receiver and a pair of speakers. The 1X setting allows the volume control to be used as a standard control. The 2X, 4X, and 8X settings allow it to be used as an UltraMatch™ control when more than one pair of speakers is connected to the same amplifier.
- Page 3 2.You must use an UltraMatch™ volume control for each pair of speakers. 3.Every jumper setting must be set on the same setting throughout the system. 4.A minimum speaker load of 4 ohms can be connected to the output of each UltraMatch™...
- Page 4 EZB Connecting Blocks Fig 3 The EZB-1 and EZB-2 connecting blocks are AMP / Receiver Russound accessories that simplify connec- tions of multiple volume controls and speaker pairs. The EZB-1 is a neat, compact wiring device capable of connecting four volume controls to an amplifier's outputs.
- Page 5 WALTx-2 Volume Control. This may cause malfunction due to corrosion to occur. 6.If the WALTx-2 is to be mounted to a hard surface, such as an exterior wall, use four screws and appropriate mounting anchors to permanently mount it.
- Page 6 WALTx-2 and ALT volume controls independently from the primary listening area. 6.You can turn OFF the speakers by turning the knob on the WALTx-2 fully counter- clockwise, or by pressing the corresponding ON/OFF button on your speaker selector.
- Page 7 To return items for repairs, the unit must be shipped to Russound at the owner's expense, along with a written explanation of the nature of the service required.
- Page 8 5 Forbes Rd. Newmarket, NH 03857, USA 603.659.5170 • Fax 603.659.5388 e-mail: tech@russound.com Come visit us at:...
