Blodgett SC-10G Parts List

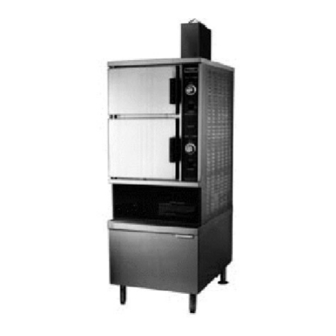

Gas convection steamer
Hide thumbs
Also See for SC-10G:
- Specifications (2 pages) ,
- Installation operating & maintenance manual (20 pages) ,
- Installation operation & maintenance (20 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Blodgett SC-10G
Summary of Contents for Blodgett SC-10G
-
Page 1: Parts List
PARTS LIST GAS CONVECTION STEAMER MODELS: SC-7G SC-10G October 9, 2006... - Page 2 FIGURE 1...
- Page 3 PARTS LIST, GAS CONVECTION STEAMER, MODELS SC-7G, SC-10G ITEM Part # 40543 Hinge Rod 40544 Hinge Rod 42137 Door Switch 42285 Switch Actuator 41631 Striker 41632 Washer 40112 Lock Washer 40112 Hex Nut 42322 Washer 40945 Pilot Light - Green...
- Page 4 PARTS LIST, GAS CONVECTION STEAMER, MODELS SC-7G, SC-10G ITEM Part # 42093 Relay 120V 41093 Ignition Module (3 Trial) 40871 Wire Harness 40450 Elbow 1/2c x 3/4 MPT 40601 Blowdown Solenoid 40421 Connector 5/8 c x 3/4 MPT 40424 Connector 1/4 C x 1/8 MPT...
- Page 5 PARTS LIST, GAS CONVECTION STEAMER, MODELS SC-7G, SC-10G ITEM Part # 43276 Plug 3/4 43277 Tee 3/4 41044 Down Tube 43278 Close Nipple 3/4 41078 Relief Valve 5 psi 43279 Nipple 3/4 x 2 ½ 43280 Elbow 3/4 40369 Steam Diverter...
- Page 6 PARTS LIST, GAS CONVECTION STEAMER, MODELS SC-7G, SC-10G ITEM Part # 41844 Fuse Holder 41860 Fuse 2A 250V (120V only) 41859 Fuse 1A 250V (220V only) 41142 Wire Harness 41182 Operation Instruction Decal 43282 Operation Instruction Decal * NOT SHOWN.
- Page 7 PARTS LIST, GAS CONVECTION STEAMER, MODELS SC-7G, SC-10G...
- Page 8 PARTS LIST, GAS CONVECTION STEAMER, MODELS SC-7G, SC-10G ITEM Part # 42641 Door ( Top ) 42640 Door ( Lower) 43283 Door Frame, Bottom 42638 Door Frame, Top 42676 Door Handle Assembly 42454 Door Handle Decal 41679 Latch Assembly 41699...
- Page 9 PARTS LIST, GAS CONVECTION STEAMER, MODELS SC-7G, SC-10G BURNER PARTS, NATURAL GAS ONLY ITEM Part # DESCRIPTION 41035 Spark Electrode 41033 Spark Electrode Bracket 41184 Gas Manifold Assembly 40386 Orifice #43 41813 Plug 1/8 NPT 41185 Burner Mounting Bracket 41183...
- Page 10 PARTS LIST, GAS CONVECTION STEAMER, MODELS SC-7G, SC-10G ITEM Part # 43286 Hex Screw 8-32 x 1/4 41094 Pilot Burner 41237 Burner Mounting Bracket 43010 Machine Screw 42446 Spark Electrode 42805 Pilot Tube 43013 Machine Bolt 41813 Plug 1/8 NPT...
- Page 11 PARTS LIST, GAS CONVECTION STEAMER, MODELS SC-7G, SC-10G FIGURE 5...
- Page 12 PARTS LIST, GAS CONVECTION STEAMER, MODELS SC-7G, SC-10G ITEM Part # 41186 Gas Supply Pipe Assembly 43017 Screw, #10 - 32 x 2 40785 Bracket 40784 Bracket 43018 Screw, 1/4" - 20 x 2 41812 Reducing Coupling 3/4" x ½"...
