Blodgett SC-10G Specifications

SC-G
Gas Convection Steamer
on a 24" Modular Cabinet Base

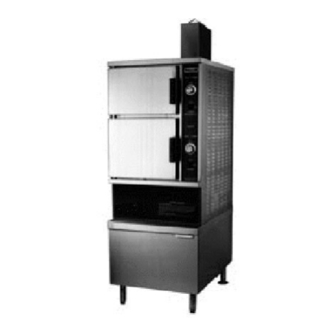

SC-7G shown
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
220 VAC, 1 phase, 60 Hz
Correctional package
120 minute timer
One year extended warranty
Project
Item No.
Quantity
EXTERIOR CONSTRUCTION
INTERIOR CONSTRUCTION
OPERATION
CAPACITY
SC-7G
SC-10G
STANDARD FEATURES
*
44 Lakeside Avenue, Burlington, VT 05401
Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183
Model SC-7G (7 pan gas convection steamer)
Model SC-10G (10 pan gas convection steamer)
304 satin finish stainless steel
Welded stainless steel door with removable inner stainless steel liner
Full perimeter door gasket
Positive lock and seal mechanism with spring release on door
Stainless steel control housing
All stainless steel construction on cabinet base
One piece welded 316 stainless steel cooking chamber
Coved corners
Stainless steel pan supports
Stainless steel drip trough integrally connected to drain
Pressureless steam operation
Automatic generator blowdown
Separate controls for each compartment
Full access removable control panel
Illuminated on/off/delime power switch
Delime mode power setting
Ready indicator light
Cooking indicator light
60 minute electric timer with audible alarm to signal end of cook cycle
Solid state generator controls with electronic ignition
Steam flow to the cooking chamber is cut off when the door is opened
during the cooking cycle and reactivated when the door is closed
Model SC-7G is comprised of one 3 pan and one 4 pan compartment
Model SC-10G is comprised of two 5 pan compartments
Pan Depth
Model
1" 2.5"
14 7
20 10
Deliming port located on the inside of the right side panel
Electromechanical controls
Split water connections
24" wide cabinet base with hinged door and 6" (152 mm) legs
120 VAC, 1 phase, 60 Hz
90,000 BTU
One year parts and labor steamer warranty*
Five year limited steamer door warranty*
For all international markets, contact your local distributor.
BLODGETT
4" 6"
4 2
6 4
