Optimal 1100 Manual page 12

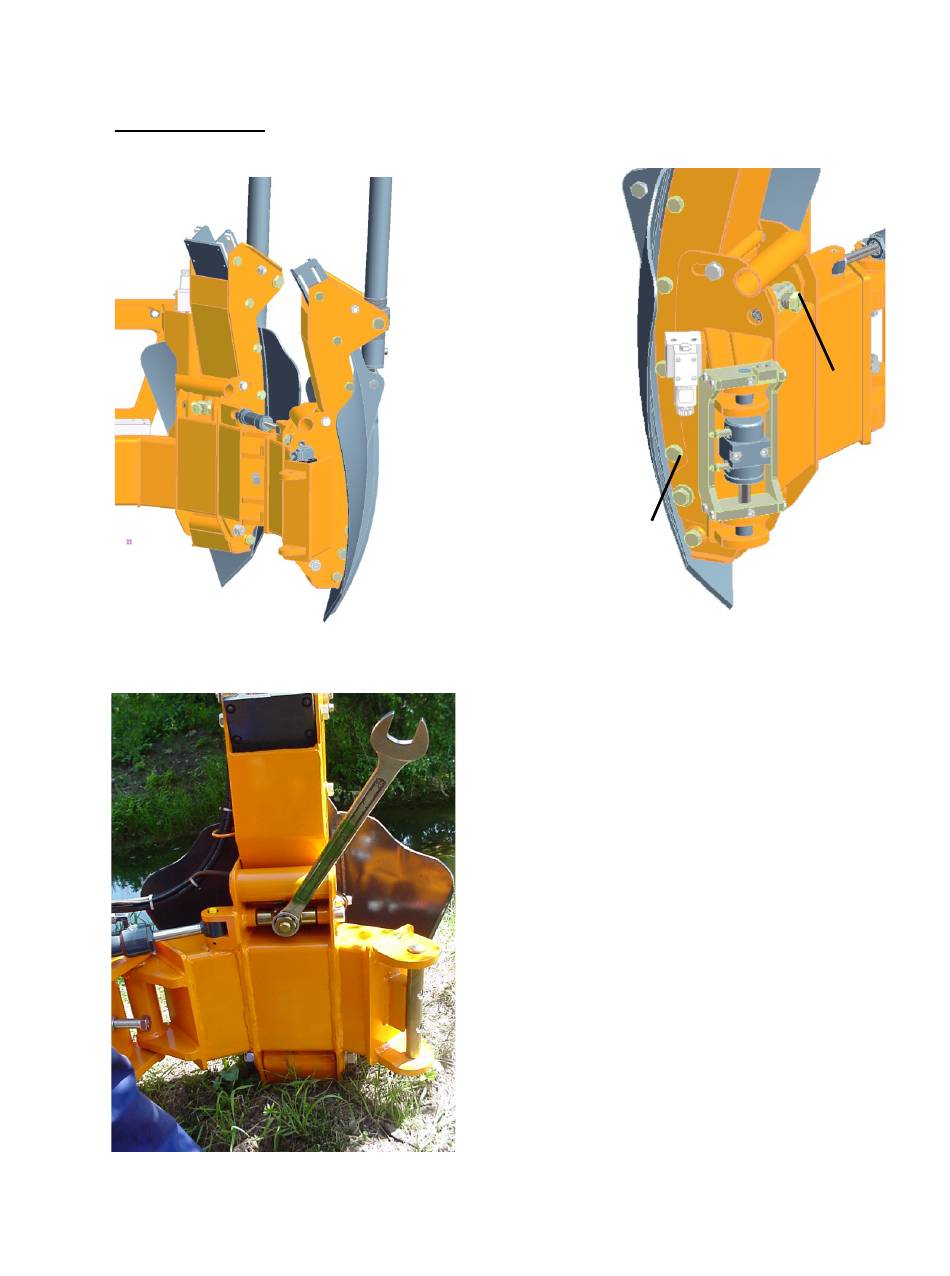

5.6 Ajusting Blades
Illustration 3
C
- 10 -
A
Illustration 1
Illustration 2
1. General view of spade tower
2. A
B
C
3. Loosen locking screws B and C.
Move spade tower forward or
backward by means of adjustment
screw A. When blades are in
desired position,tighten locking
nuts B and C.
(Locking nut C must be tightened with
a torque of 420 Nm.)
B
adjustment screw
locking screw
locking screw
