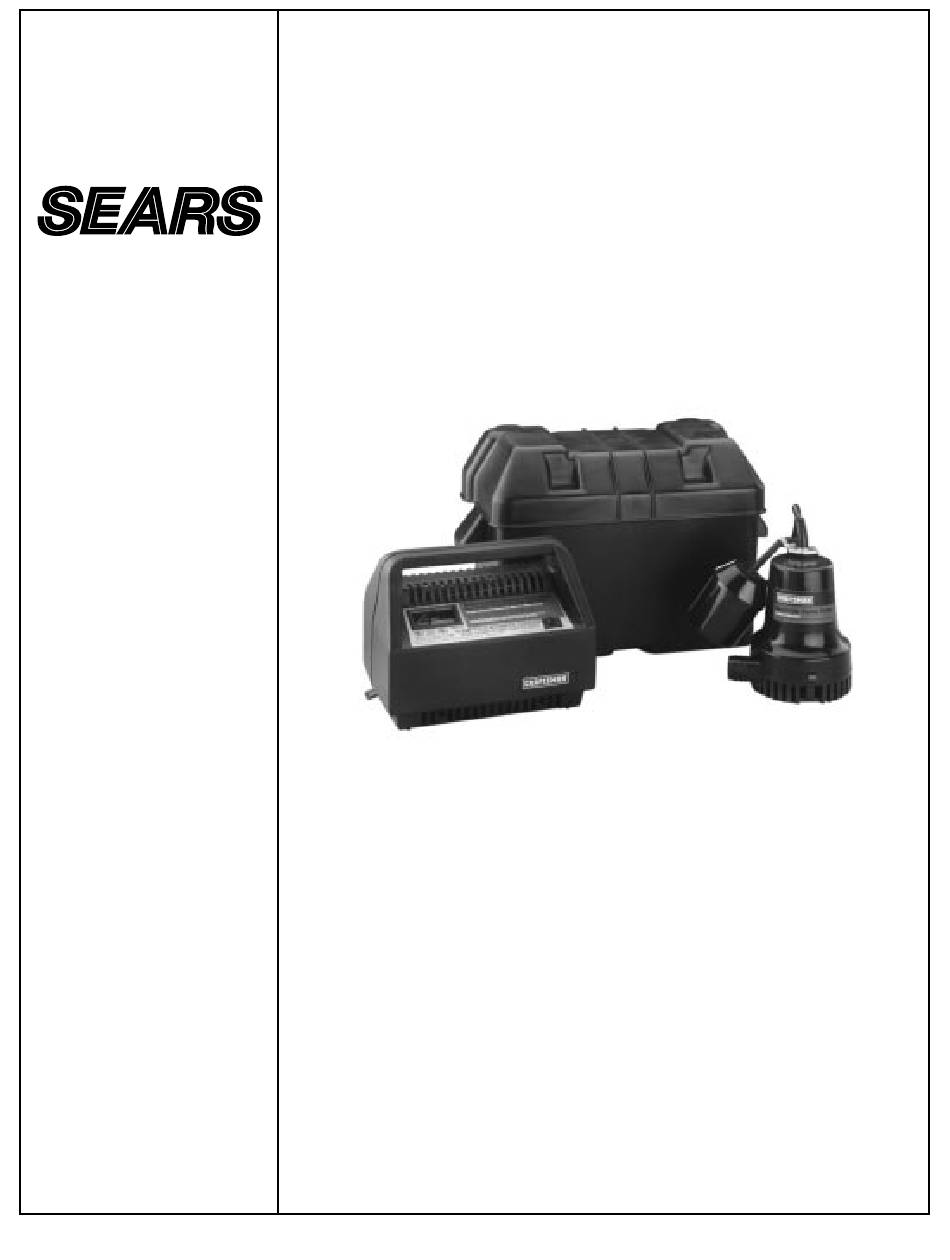

  • Page 1 MODEL NO. 572.826122 CAUTION: Read all instructions • Installation carefully before starting the installation. • Operation • Repair Parts Save this Manual for future reference. SEARS CANADA INC. F642-9511 (Rev. 12/8/98) TORONTO CANADA M5B 2B8 PRINTED IN U.S.A.

  • Page 2: Limited Warranty

    ALL PARTS .......TWO (2) YEARS ALL LABOUR .....ONE (1) YEAR Sears will repair or replace the pump free of charge if it fails due to manufacturing defects. Damage caused by improper installation is not covered by this warranty. This warranty is in addition to any statutory warranty.

  • Page 3: Basic Tools And Materials Needed

    BASIC TOOLS AND MATERIALS NEEDED Pipe Wrenches Screwdriver Hacksaw 1-1/4" Check Valve Adjustable Wrench Teflon Tape Knife 12-volt Battery GENERAL INFORMATION Keep battery charger dry and protected from damage. The Battery-Powered Back-up Sump Pump is not a sub- stitute for your primary sump pump. It is designed as a In an emergency (such as an extended power outage) backup pump to pinch-hit for your primary sump pump which depletes the system battery, your automobile...

  • Page 4: Battery Requirements

    10. Using PVC glue, permanently reinstall tee in primary In an emergency a SEARS DieHard Size 27M or 24M stan- sump pump discharge pipe. dard automobile battery may be used. However, an auto-...

  • Page 5: Electrical Connections

    C. Third lead from charger is factory connected to Hazardous fumes. Follow cement manu- lead from pump motor/float switch. facturer’s instructions. Use PVC cement only in a well ventilated place away from fire or flame. NOTICE: If charger is connected backwards, pump will not operate properly, battery will not charge.

  • Page 6: Battery Maintenance

    breaker which protects it from temporary overloads. In TROUBLESHOOTING case of an overload, the circuit breaker will open. It Pump won’t run. automatically resets after a short cool-down period. In 1. Check all connections. some conditions where the overload is extended the breaker will cycle , repeating the open/reset process 2.

  • Page 7: Switch Replacement

    SWITCH REPLACEMENT 14. Turn pump upside down; unclip and remove screen. Do not remove screw-mounted bottom plate. Lift 1. Unplug battery charger from wall outlet. switch to momentarily ”bump” pump. Check for 2. Disconnect both battery clamps from battery correct operation and rotation (pump must rotate terminals.

  • Page 8: Repair Parts List

    SEARS Battery Backup Sump Pump Model 572.826122 Black – Negative Battery Clamp – Sensor Brown Positive Battery Clamp White Positive Black w/ Black Red Tracer Sensor Negative 1412 1194 REPAIR PARTS LIST Key No. Part No. Part Description PS217-5E Switch Assembly #...
