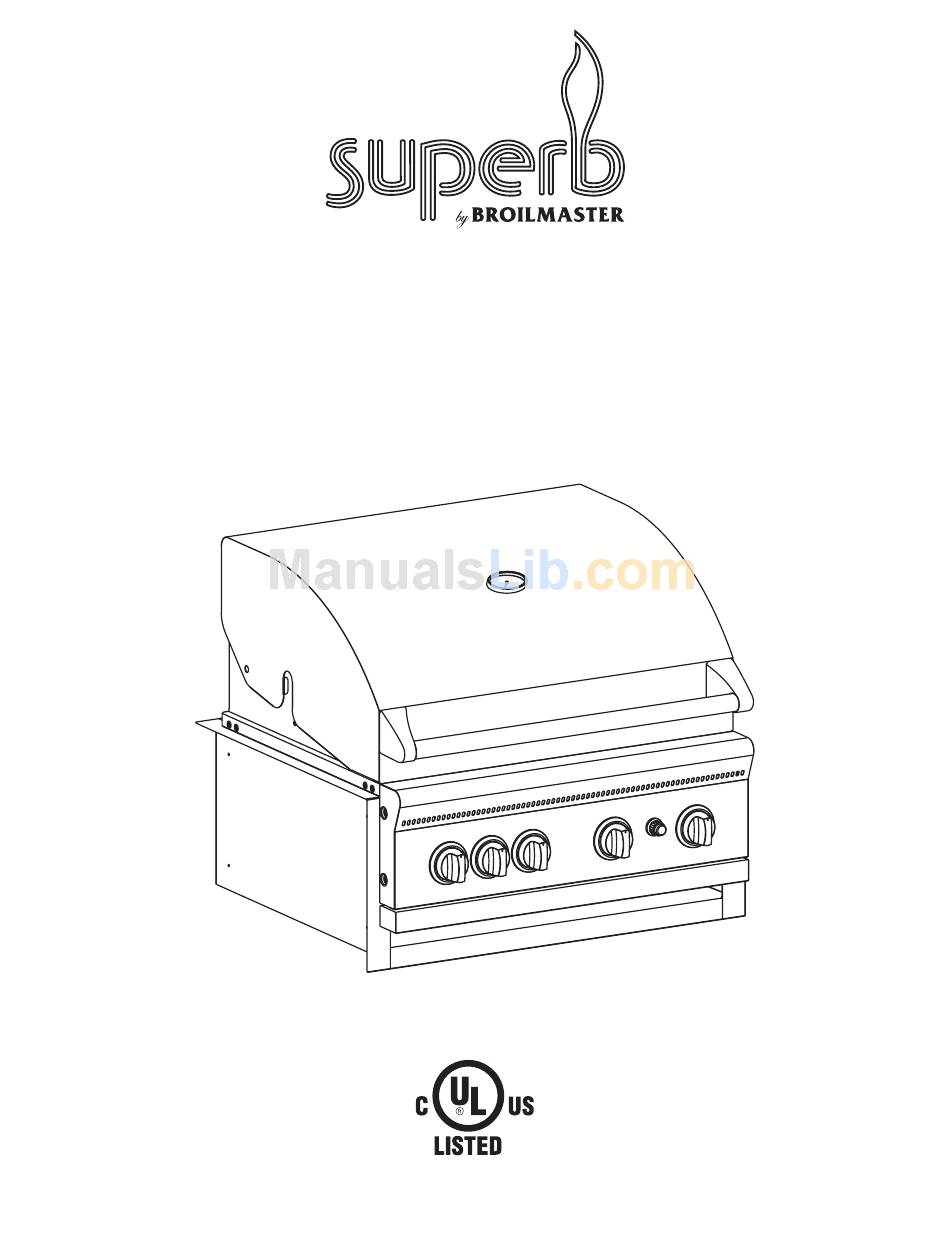

- Page 1 SBB2804-1 Gas Grill With Surround Owner’s Manual GAS-FIRED Page 1...
- Page 2 Parts may have sharp edges. Wear leather work gloves and handle parts carefully during the unpacking, assembly and installation. WARNING Superb by Broilmaster Gas Grills must ONLY use propane cylinders equipped with an Overfill Protec- ® tion Device (OPD). Use only a reputable propane dealer when exchanging or filling cylinders. An over- filled or improperly filled propane cylinder can be dangerous.
-
Page 3: Thank You
At Broilmaster, we continually strive to enhance the performance and quality of our products for your grilling enjoyment. Every ef- fort will be made to ensure that Broilmaster continues to be your choice as the grill of the future. Whether you are at the lake or in the privacy of your own back-... -
Page 4: Table Of Contents
For your convenience, complete this section for future reference when contacting your dealer. Model No. Serial No. Gas Type: Propane Page 4 TABLE OF CONTENTS Congratulations! Gas Grill is identified by model number, serial number, and gas ® Dealer Dealer Phone No. Natural Date of Purchase PAGE SBB00104-1-1107... -
Page 5: Hardware Package
HARDWARE PACKAGE SBB00104-1-1107 Page 5... -
Page 6: Parts View
All repair part orders should be placed through your local Broilmaster tomer Service at 800-851-3153 or www.broilmaster.com. To ensure prompt and accurate service, please provide the following informa- tion when placing a repair part order: Model Number, Serial Number, Part Name, Part Number, and Quantity of parts needed. -
Page 7: Parts List
INDEX NO. PART NUMBER SBB00014 SBB00108 SBB00013 SBB00078 SBB00064 SBB00065 SBB00067 SBB00068 SBB00069 SBB00092 SBB00071 SBB00070 SBB00109 SBB00102 SBB00106 SBB00051 SBB00110 SBB00073 SBB00075 SBB00062 SBB00060 SBB00059 SBB00111 SBB00050 SBB00091 SBB00038 SBB00037 SBB00030 SBB00031 SBB00041 B101205 SBB00049 SBB00112 SBB00033 SBB00032 SBB00103 SBB00107 SBB00104-1-1107 PARTS LIST... -
Page 8: Grill Assembly
This grill requires some assembly and installation. Follow all instructions. If you purchased an accessory with your Superb by Broilmaster Gas Grill, follow the instructions provided with the accessory for assembly and installation. If an instruction refers to a step that is not required for your grill model, please continue to the next step. -
Page 9: Surround Location, Connections, And Safety
SURROUND LOCATION, CONNECTIONS, AND SAFETY Surround Kit Location Built-In Kits are designed for outdoor use ONLY. This Built-In Kit is designed for use with SBB2804 Broilmaster gas grills and cannot be used with any other grill or in any other capacity. -
Page 10: Enclosure Construction Guidelines
ENCLOSURE CONSTRUCTION GUIDELINES Enclosure must be construction from non-combustible material. If tile is used on the top surface of your enclosure, it may be necessary to enlarge openings at the top edges to allow the frame pieces of the SBB and BSA to mount flush against the enclosure. Screws for enclosure mounting have not been supplied. -
Page 11: Surround Assembly
Remove the surround from the shipping box and place the SBB surround into position in the constructed enclosure. See Figure 1. Figure 1 SURROUND AND GRILL ASSEMBLY Slide grill head with flex gas line attached into surround. Make sure flex gas line is protruding out surround side. See Figures 3 and 4. -
Page 12: Surround And Grill Assembly
SURROUND AND GRILL ASSEMBLY Attach grill head to surround from inside of the grill with four (4) lock washers, and 1/2” screws (provided). See Figure 5. Figure 5 Place flame tamers over burners. Pins on burner box fit through holes on flame tamer. See Figure 6. Place cooking grids into grill. -
Page 13: Rotisserie Installation
ROTISSERIE INSTALLATION The Infrared burner (Rotisserie burner) is for rotisserie cooking only. Warning: Never use the main burners while using the Infrared Back Burner, as this could result in igniting the drip- pings, or overheating your grill. Remove warming rack and cooking grids. -
Page 14: Alternate Match Lighting
ALTERNATE MATCH LIGHTING Turn the burner control knobs clockwise to the OFF position. Turn ON gas at the source. Open the grill lid. Locate the Ignitor Rod, which is permanently attached to the inside of the right surround side. Insert an unlit match into the coiled end of the ignitor rod. Light the match. -
Page 15: Rotisserie Operation
Using the Ignitor Caution: If burner fails to light after 5 seconds, turn the burner OFF for 5 minutes, to allow the gas to clear, then try again. Attention: You must use the control knob that is second from the left side of grill to ignite the rotisserie. -
Page 16: Propane Gas Grills
Grill Location When choosing the ideal location for your Superb by Broilmaster Gas Grill, remember this grill is designed for outdoor use ONLY. You should never install or operate your grill in any building, garage, or other enclosed area. For your safety, this grill should not be installed or operated under any combustible materials, such as carports, covered porches, awnings, or overhangs. - Page 17 Note: Not all valve and cylinder combinations are compatible. Check warning tag on valve and cylinder as well as external fitting threads. All Broilmaster pressure regulators and hose assemblies require Propane cylinders with a Type 1 connection device as illustrated. See Figure 16.
-
Page 18: Gas Conversion To Liquid Propane Gas
12. Connect the hose and regulator (no included) to manifold with an adjustable wrench. Please contact your dealer to order the necessary parts for your Broilmaster grill. 13. Attention: Before lighting your grill check all gas connections including the adjustment screws in valve stems for gas leaks with a soapy water mixture. -
Page 19: Operation
Checking for Gas Leaks Check for gas leaks every time you connect your Superb by Broilmaster propane gas grill to a Propane gas cylinder, when a ® connected cylinder has not been used recently, or when either a natural or propane grill is being used for the first time. -
Page 20: Operation
Turn OFF gas. The grill is now ready for use. Preheating Before cooking on a gas grill, allow the grill to preheat on HI for 5 minutes with the lid closed. This uses very little fuel and provides better flavor. -
Page 21: Maintenance
Grease Tray Empty periodically. Exterior Clean regularly with a solution of mild detergent and hot water. Superb by Broilmaster less steel components can be easily cleaned with a spray-on stainless steel cleaner found in most hardware stores. Venturi Tubes The venturi tubes allow air and gas to mix prior to burning, thus ensuring an efficient flame. -
Page 22: Troubleshooting
Although the manufacturer has attempted to ensure that your grill will operate properly and satisfactorily, sometimes problems do arise. The following troubleshooting guide lists several possible problems and their probable cause and solution. Problem Burner will not light. Inadequate grill temperature. Flames blow out Yellow flames. -
Page 23: Warranty Terms
What Is Covered And For How Long From the date this Superb by Broilmaster Gas Grill is first purchased, we will make available at our factory a free replacement for any defective part covered by this warranty on the following basis. Proof of purchase required. Warranty applies to original owner and is not transferable. - Page 24 URABLE RILL NOWN BROILMASTER ® A Division of Empire Comfort Systems, Inc. 918 Freeburg Ave. Belleville, Illinois 62220 Phone: 1-800-851-3153 FAX: 1-800-443-8648 .broilmaster.com ISIT OUR WEB SITE AT WWW Page 24 SBB00104-1-1107...
